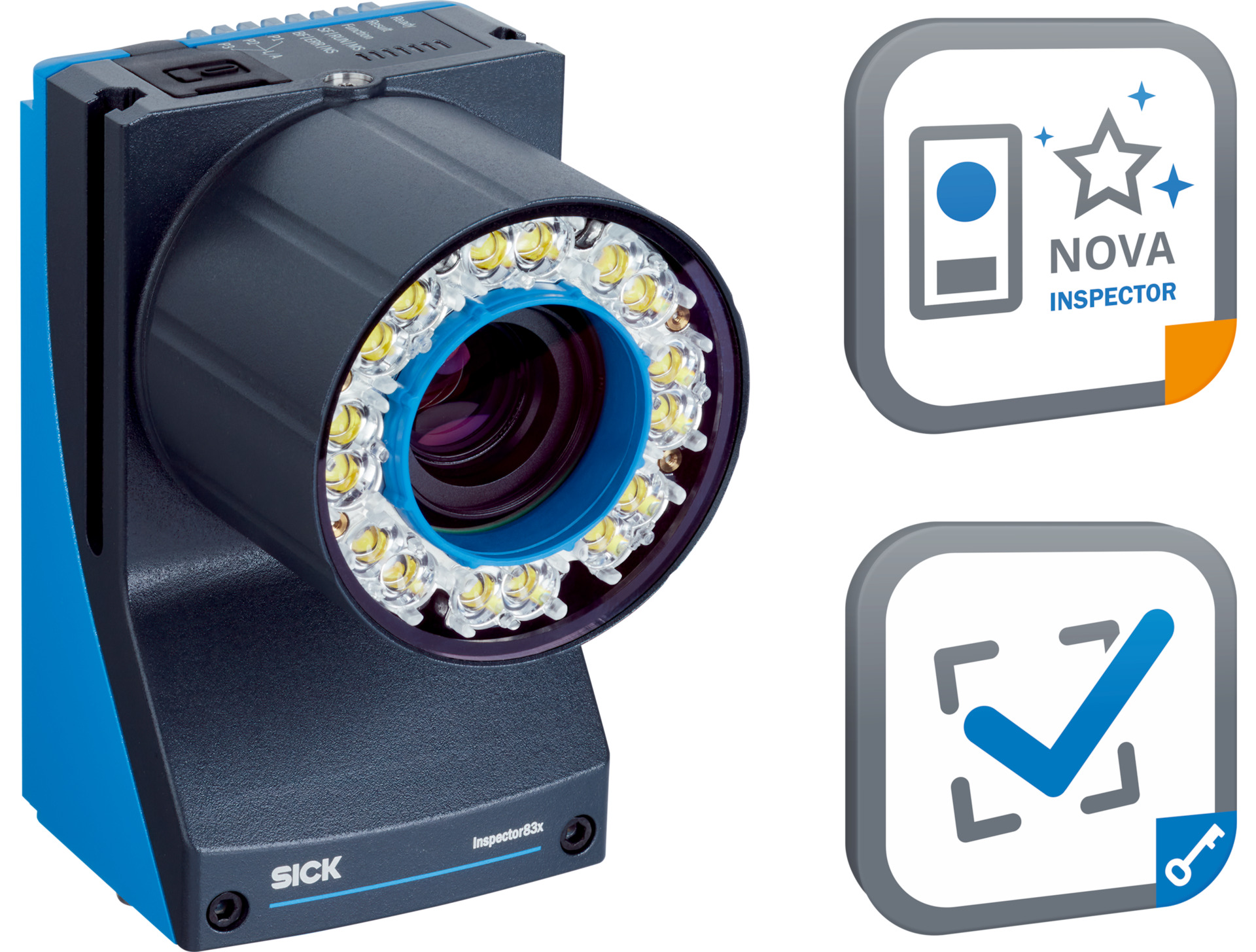

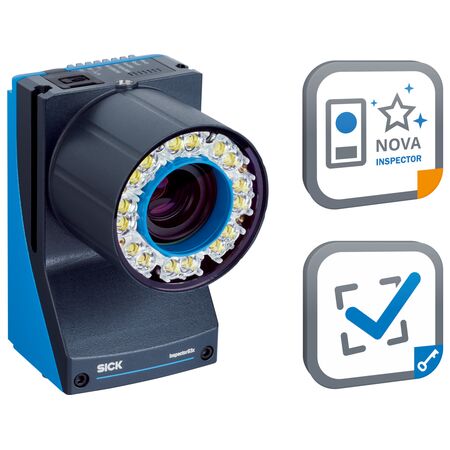

2D Snapshot Sensor | 5.1 Megapixels | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for high-precision quality inspection in industrial settings, featuring a 5.1 Megapixel resolution and global-shutter technology. With adjustable optical focus and integrated white LED illumination, it excels in applications like dimension measurement and pattern recognition, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Sensor resolution: 2464 px x 2048 px (5.1 Megapixels)
- Pixel size: 2.74 µm x 2.74 µm
- Sensor size: 6.75 mm x 5.61 mm
- Shutter technology: Global-Shutter
- Optical focus: Adjustable (manual)
- Working range: 200 mm to 2500 mm depending on lens
- Illumination: Integrated white LED, 6500 K ± 1000 K
- LED class: Risk group 1 (IEC 62471 / EN 62471)
- Lens: C-mount, 1/1.8" optical format, 16 mm focal length
- Power supply: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65 (IEC 60529)
- Housing material: Aluminum die cast
- MTBF: 100,000 hours
- Scan/frame rate: 30 Hz
- Connection types: M12 17-pin male, M8 4-pin female, M12 8-pin female, M12 4-pin female connectors
- Communication protocols: Ethernet TCP/IP, PROFINET, EtherNet/IP
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Altitude: < 5000 m
- Dimensions (H x L x W): 84.5mm x 108mm x 63.1mm
- Weight: 0.545 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Programmable and configurable via SensorApp Nova Inspector
- Adjustable manual optical focus with integrated white LED illumination
- Supports multiple communication protocols including Ethernet, PROFINET, and EtherNet/IP
- Robust aluminum die cast housing with IP65 rating
- High sensor resolution of 5.1 Megapixels with 30 Hz frame rate
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade
- Multiple connection types including M12 and M8 connectors
- Equipped with 8 status LEDs for optical indication
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper configuration, connection, and compliance with safety standards.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Sorting and 2D position determination
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Integrated LED illumination reduces external lighting requirements, lowering energy consumption.
- Durable aluminum housing extends product lifespan, reducing waste.
- Supports efficient quality control to minimize defective products and material waste.
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D8305P-1MCKDXAF1SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and measurement applications.
