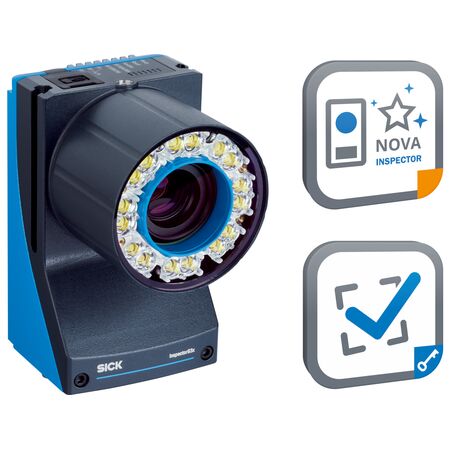

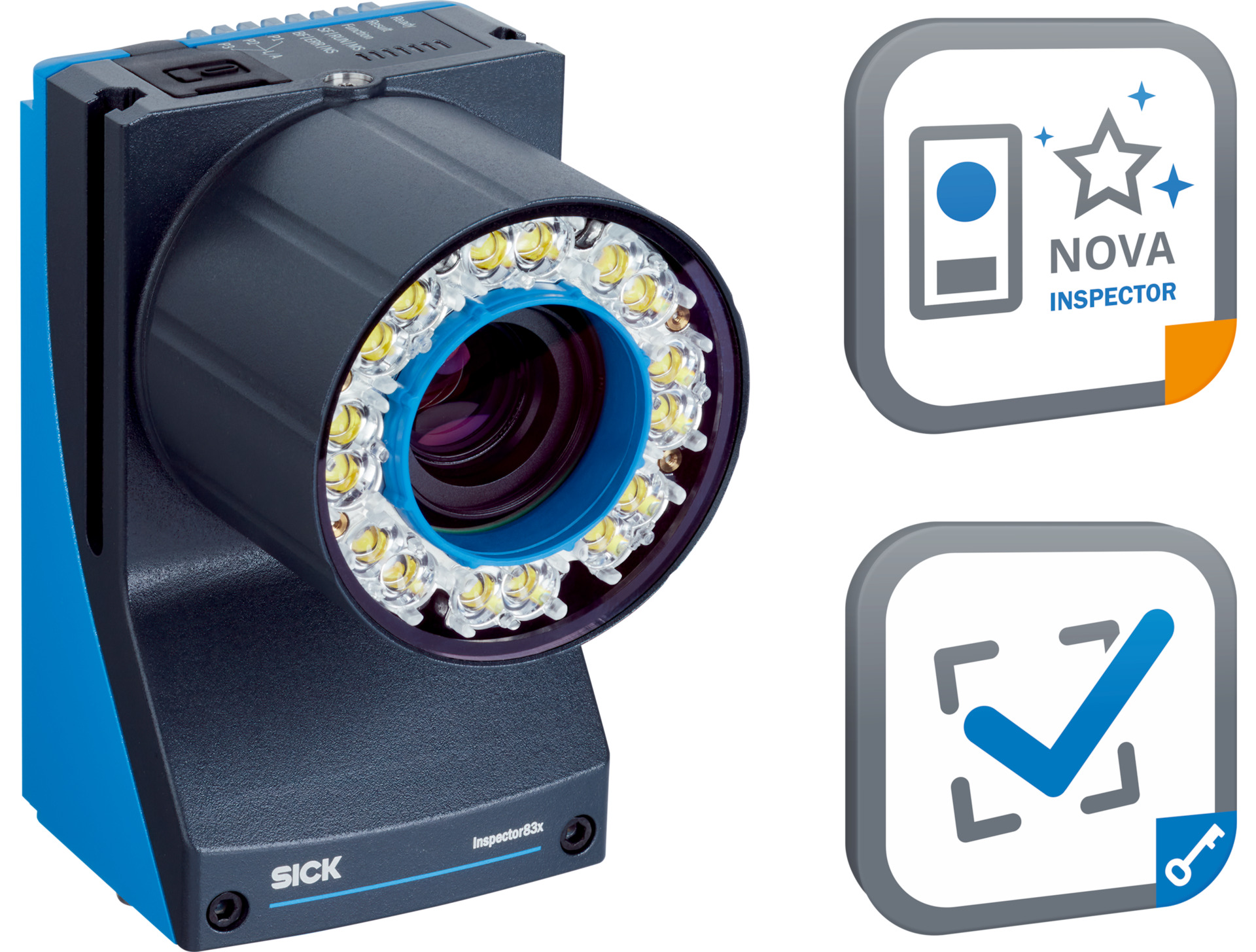

2D Snapshot Sensor | 5.1 Megapixels | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for high-precision quality inspection in industrial settings, featuring a 5.1 Megapixel resolution and global-shutter technology. With integrated white LED illumination and support for multiple communication protocols, it’s perfect for applications like dimension measurement, 2D code identification, and pattern recognition. Built to withstand harsh environments with an IP65 rating, this sensor ensures reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2D Snapshot Sensor | 5.1 Megapixels | Global-Shutter Technology | IP65 Rated | by SICK
Brand: SICK
SKU: 1143351
Alternatively Known As: 2D Snapshot Sensor, SICK Vision Sensor, Industrial 2D Code Reader, Quality Inspection Sensor
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5.1 Megapixels)
- Pixel size: 2.74 µm x 2.74 µm
- Sensor size: 6.75 mm x 5.61 mm
- Shutter technology: Global-Shutter
- Working range: 200 mm to 2500 mm depending on lens
- Illumination: Integrated white LED, 6500 K ± 1000 K
- Power consumption: 21 W
- Supply voltage: 24 V DC ± 20%
- Enclosure rating: IP65
- Connection types: M12 17-pin male, M8 4-pin female, M12 8-pin female, M12 4-pin female connectors
- Communication protocols: Ethernet TCP/IP, PROFINET, EtherNet/IP
- Frame rate: 30 Hz
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- MTBF: 100,000 hours
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS monochrome sensor
- Programmable and configurable via SensorApp Nova Inspector
- Adjustable manual optical focus with integrated white LED illumination
- Supports multiple communication protocols including Ethernet, PROFINET, and EtherNet/IP
- Robust aluminum die-cast housing with IP65 rating
- High sensor resolution of 5.1 Megapixels with 30 Hz frame rate
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade
- Multiple connection types including M12 and M8 connectors
- Equipped with 8 status LEDs for optical indication
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial sensor systems and electrical standards to ensure safety and optimal performance.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Sorting and 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated LED illumination reduces the need for external lighting, lowering energy consumption.
- Durable aluminum housing extends product lifespan, reducing waste.
- Supports remote configuration and diagnostics, minimizing onsite service visits.
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8305P-1MCKEXAF1SXXXX 2D snapshot sensor is available for immediate purchase, ideal for industrial quality inspection and measurement applications.
