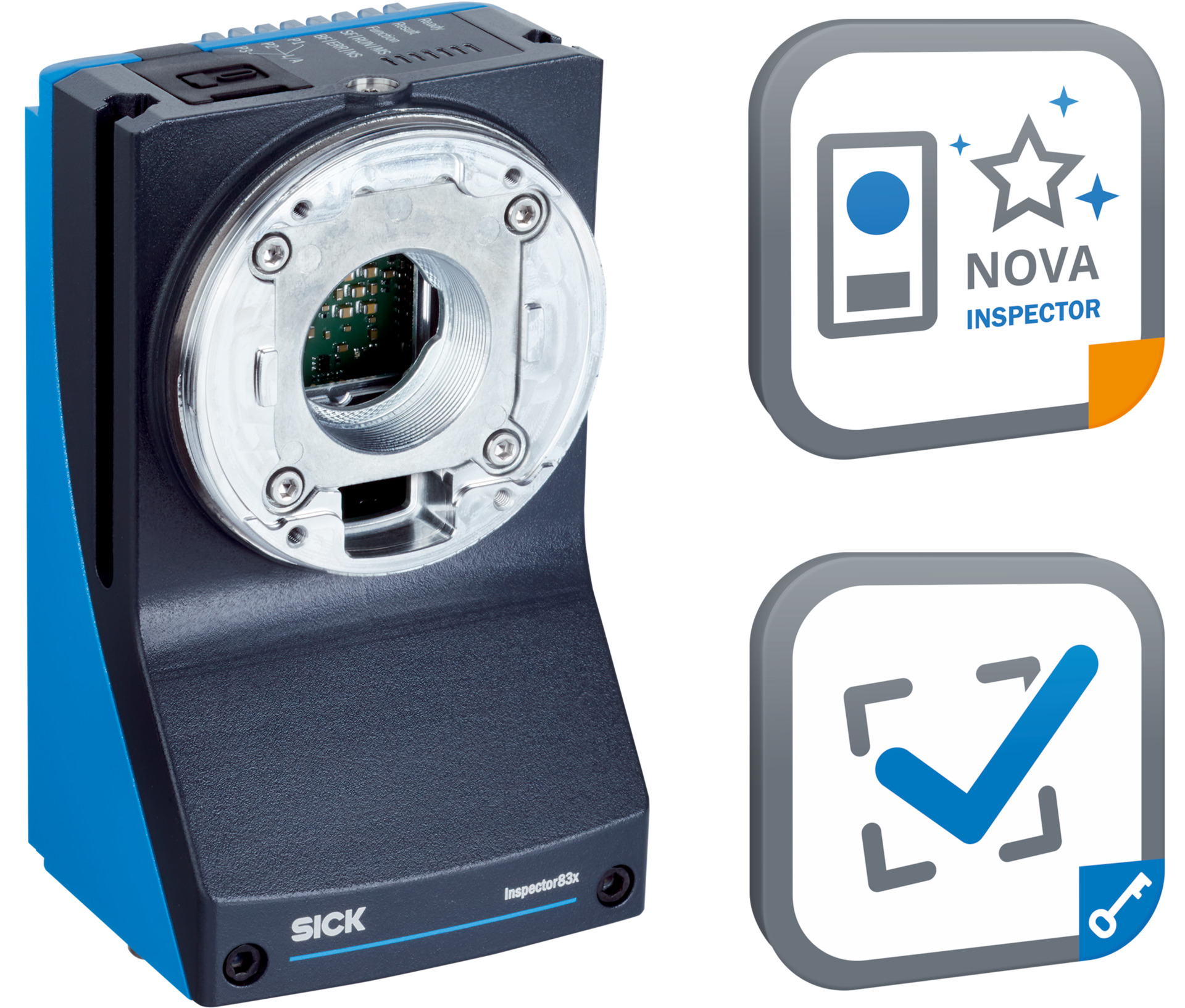

2D Snapshot Sensor | 5.1 Megapixels | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for high-precision quality inspection in industrial settings, featuring a 5.1 Megapixel CMOS color sensor and global-shutter technology. With robust IP65-rated aluminum housing, it ensures durability and reliability in various applications, including dimension measurement and pattern recognition. Ideal for manufacturing environments, this sensor supports multiple interfaces for seamless integration into existing systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Sensor: CMOS Color with Global-Shutter
- Sensor resolution: 2464 px x 2048 px (5.1 Megapixels)
- Pixel size: 2.74 µm x 2.74 µm
- Sensor size: 6.75 mm x 5.61 mm
- Working range: 200 mm to 2500 mm depending on lens
- Power consumption: 21 W
- Supply voltage: 24 V DC ± 20%
- Enclosure rating: IP65 (IEC 60529)
- Housing material: Aluminum die cast
- Interfaces: 1x M12 17-pin male (Power, I/O), 1x M8 4-pin female (external illumination), 1x M12 8-pin female (Gigabit Ethernet), 2x M12 4-pin female (fieldbus Ethernet)
- Data transmission rates: 10/100/1000 Mbit/s Ethernet, 10/100 Mbit/s PROFINET and EtherNet/IP™
- Scan/frame rate: 30 Hz
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- MTBF: 100,000 hours
- Dimensions (H x L x W): 55mm x 108mm x 63mm
- Weight: 0.545 kg
Key Features
- 2D snapshot technology with CMOS color sensor
- Programmable and configurable via SensorApp Nova Inspector
- Adjustable manual optical focus
- Global-Shutter shutter technology
- High sensor resolution of 5.1 Megapixels (2464 px x 2048 px)
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™
- Robust aluminum die cast housing with IP65 rating
- Supports external illumination accessories
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade License
- Supports SICK Nova Tool plug-in for custom tool development
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial vision systems and electrical safety standards.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Sorting and 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise quality control reducing waste and rework
- Supports energy-efficient operation with 24 V DC supply
- Durable IP65 housing extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

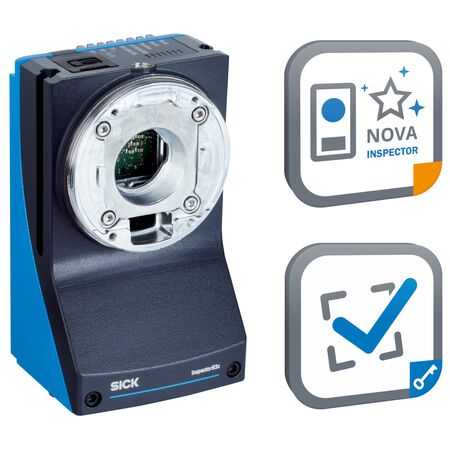

The SICK V2D8305P-1CCXXXAF0SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and automation applications.
