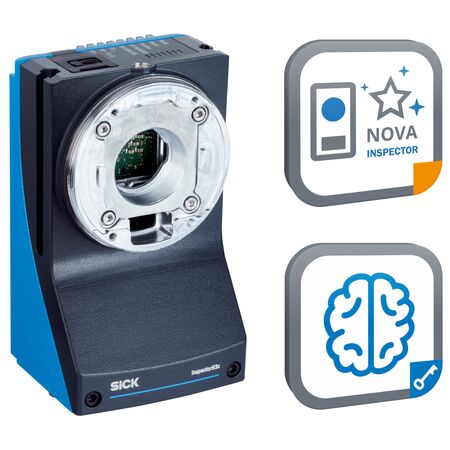

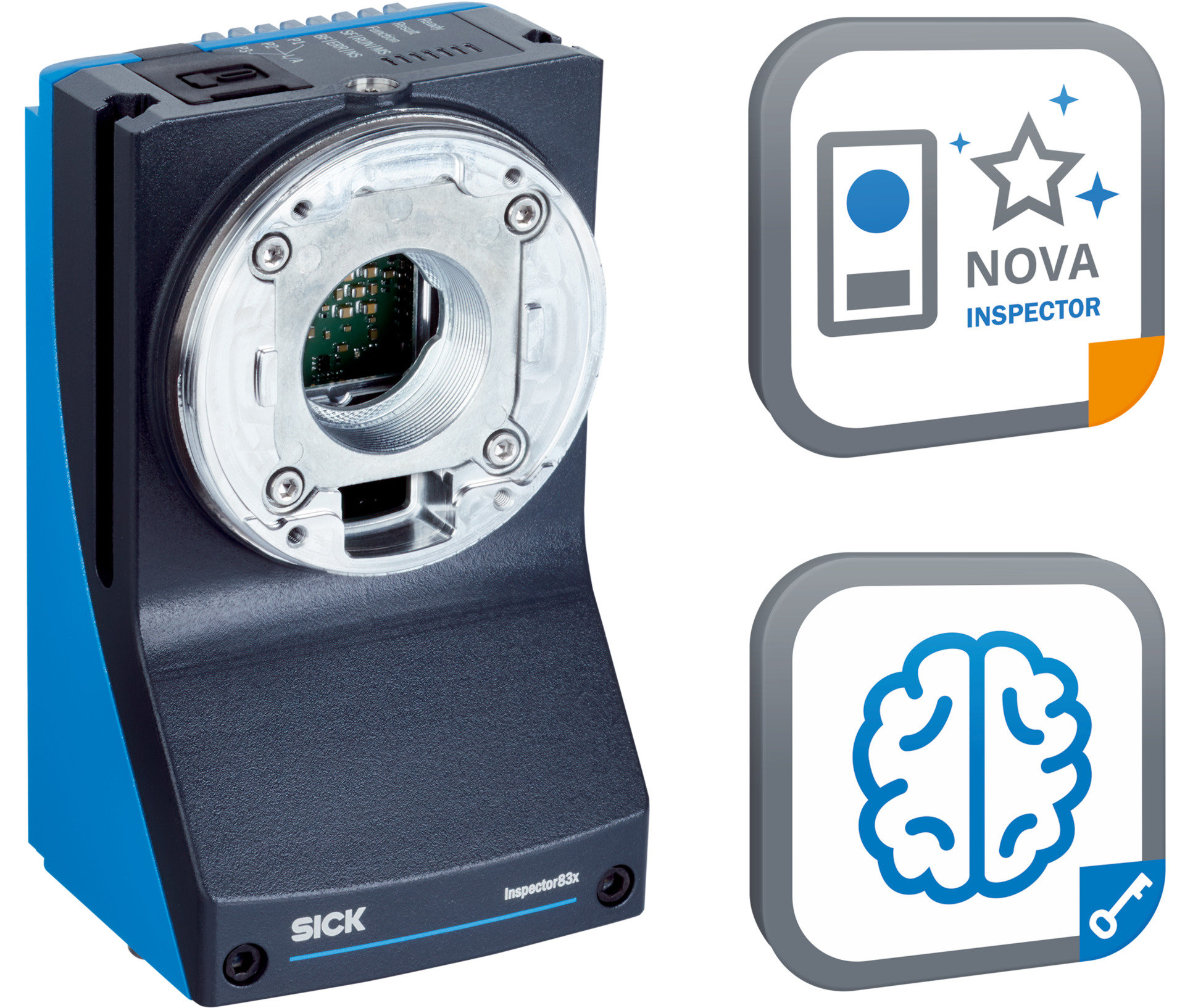

2D Snapshot Sensor | 5.1 Megapixels | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for precision in industrial automation, featuring a high resolution of 5.1 Megapixels and global-shutter technology. Ideal for applications like object detection, dimension measurement, and optical character recognition, this sensor ensures reliable performance in challenging environments with its robust IP65 rated aluminum housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Sensor resolution: 2464 px x 2048 px (5.1 Megapixels)
- Pixel size: 2.74 µm x 2.74 µm
- Sensor size: 6.75 mm x 5.61 mm
- Shutter technology: Global-Shutter
- Working range: 200 mm to 2500 mm depending on lens
- Power consumption: 21 W
- Supply voltage: 24 V DC ± 20%
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- MTBF: 100,000 hours
- Connection types: M12 17-pin male (Power, I/O), M8 4-pin female (external illumination), M12 8-pin female (Gigabit Ethernet), M12 4-pin female (fieldbus Ethernet)
- Communication: Ethernet TCP/IP, PROFINET Dual Port, EtherNet/IP Dual Port
- Operator interface: Web server
- Configuration software: Web GUI, SICK AppManager, SICK AppStudio
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- Operating temperature: 0°C to +40°C
- Storage temperature: -20°C to +70°C
- Relative humidity: ≤ 90%, non-condensing
- Vibration resistance: EN 60068-2-6:2007, EN 60068-2-64:2019
- Shock resistance: EN 60068-2-27:2008
- Dimensions (H x L x W): 55mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS color sensor
- Programmable and configurable via SensorApp Nova Inspector
- Includes Intelligent Inspection License with no time limit
- Adjustable manual optical focus
- Global-Shutter shutter technology
- High sensor resolution of 5.1 Megapixels (2464 x 2048 px)
- Supports Ethernet, PROFINET, and EtherNet/IP communication protocols
- Robust IP65 rated aluminum die-cast housing
- Multiple connector types for power, I/O, external illumination, and Ethernet
- Supports external illumination with separate accessories
- Web server operator interface and advanced configuration software support
- High vibration and shock resistance
- Operating temperature range 0°C to +40°C
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and network protocols to ensure optimal performance and safety.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- 2D code identification
- Optical character recognition (OCR)
- Pattern identification
- Classification and sorting
- 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient 24 V DC operation reduces power consumption
- Durable IP65 housing extends product life and reduces waste
- Supports external illumination to optimize energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK V2D8305P-1CCXXXAF0SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial automation, quality control, and inspection applications.
