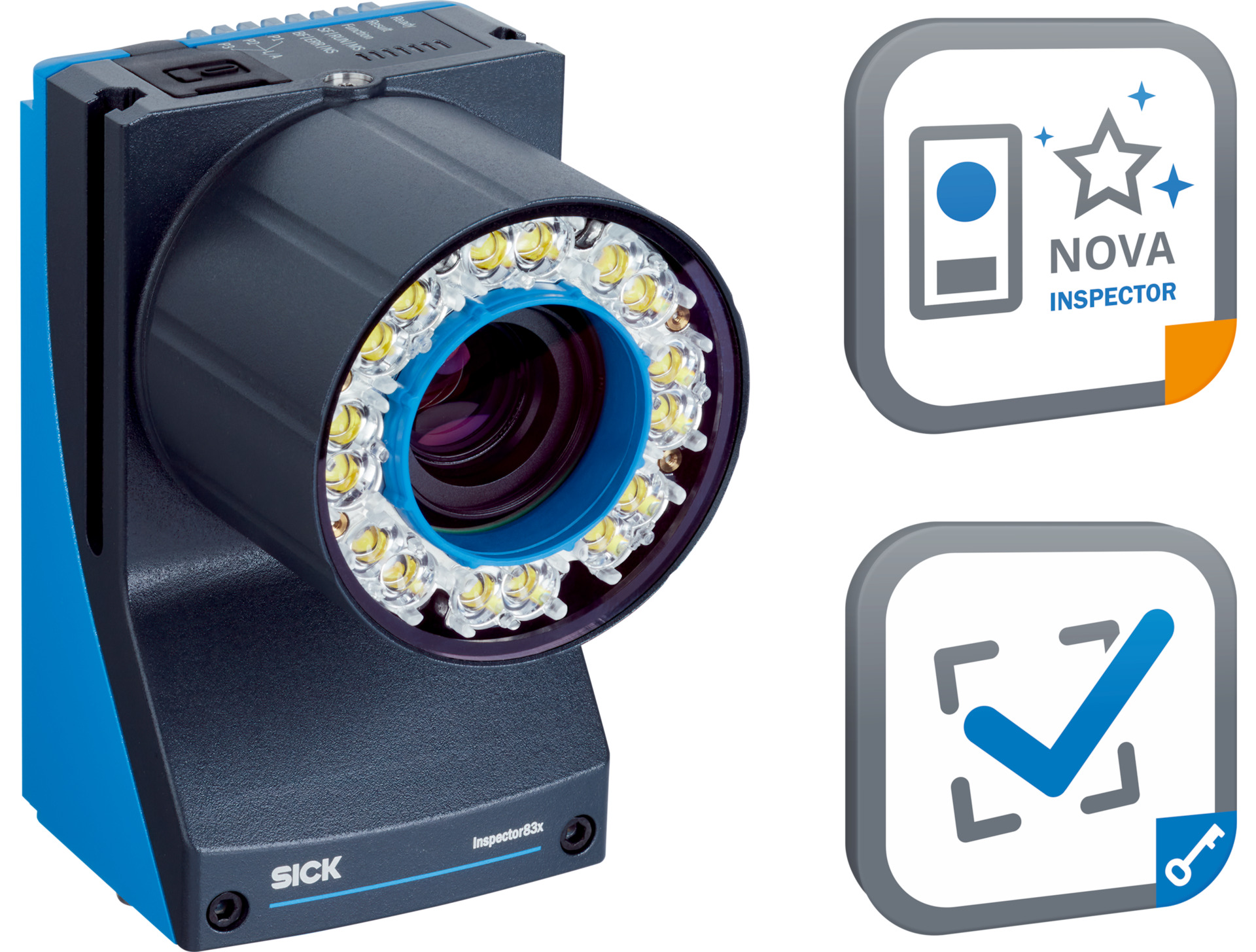

2D Snapshot Sensor | 5.1 Megapixels | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for high-precision quality inspection in manufacturing, featuring a 5.1 Megapixel resolution and global-shutter technology. Ideal for automation applications, it offers integrated white LED illumination and multiple communication interfaces, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5.1 Megapixels)
- Pixel size: 2.74 µm x 2.74 µm
- Sensor size: 6.75 mm x 5.61 mm
- Shutter technology: Global-Shutter
- Working range: 200 mm to 2500 mm depending on lens
- Illumination: Integrated white LED, 6500 K ± 1000 K
- Power consumption: 21 W
- Supply voltage: 24 V DC ± 20%
- Enclosure rating: IP65
- Connection types: M12 17-pin male, M8 4-pin female, M12 8-pin female, M12 4-pin female connectors
- Communication: Ethernet TCP/IP, PROFINET, EtherNet/IP
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Weight: 545 g without lens and cables
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS color sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination (6,500 K)
- Adjustable manual optical focus
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP
- Robust IP65 aluminum die-cast housing
- High sensor resolution of 5.1 Megapixels
- Supports customer-specific tool development via SICK AppSpace and AppStudio
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with electrical standards.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Position determination in automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Integrated LED illumination reduces external lighting needs
- Energy-efficient 24 V DC operation
- Durable IP65 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

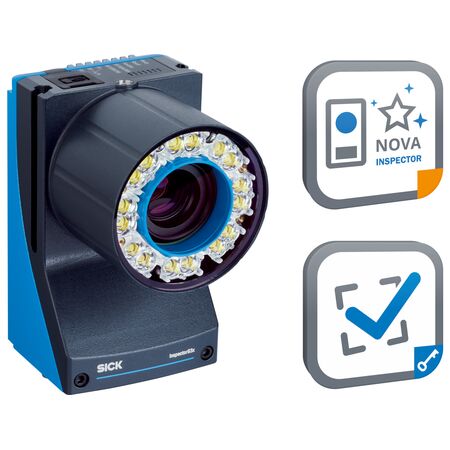

The SICK V2D8305P-1CCKDXAF1SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial automation and quality inspection applications.
