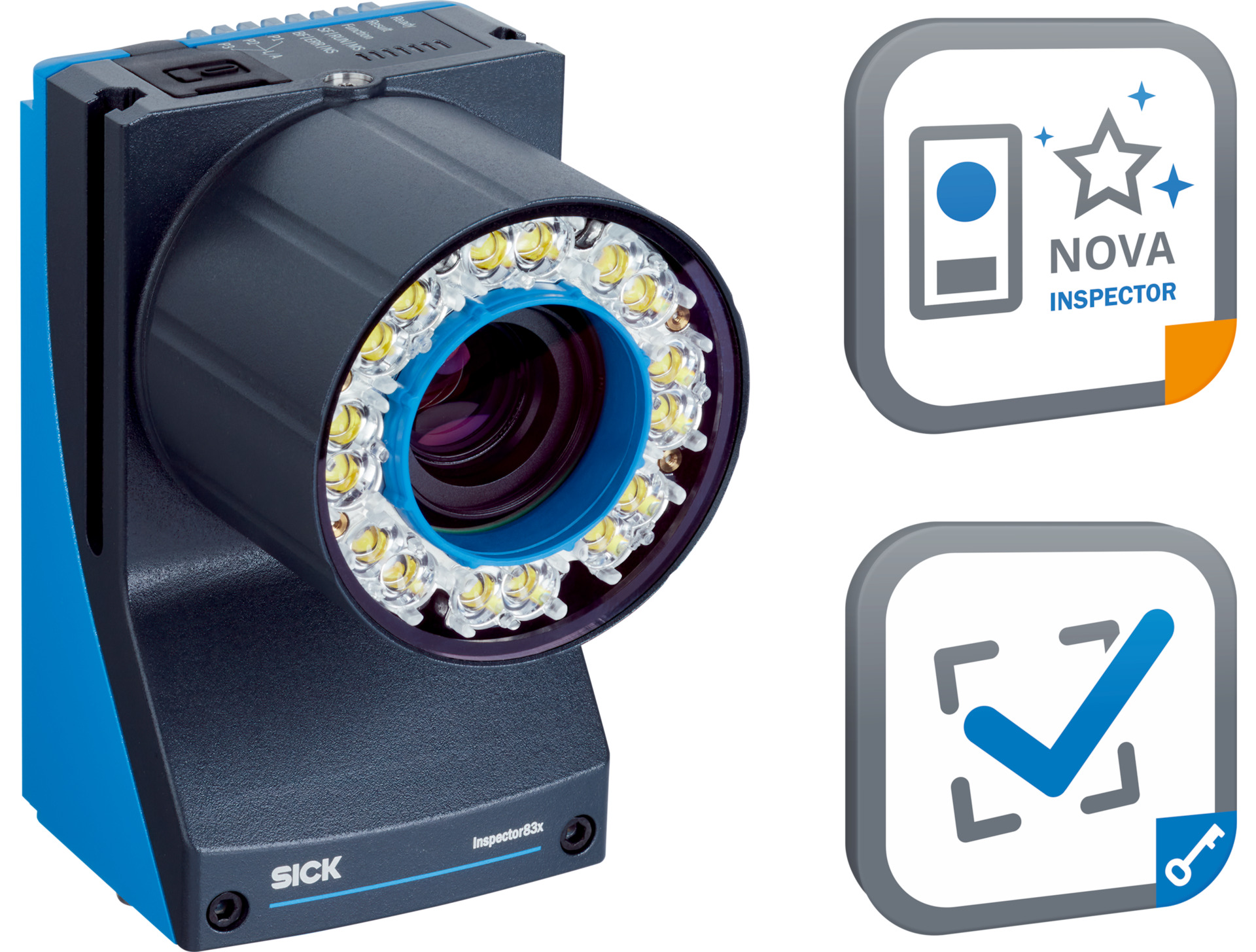

2D Snapshot Sensor | 5.1 Megapixels | Global Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for industrial automation and quality inspection, featuring a high resolution of 5.1 Megapixels and global shutter technology for precise image capture. With integrated white LED illumination and robust aluminum housing, it’s perfect for object detection, measurement, and 2D code identification in various manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5.1 Megapixels)
- Pixel size: 2.74 µm x 2.74 µm
- Sensor size: 6.75 mm x 5.61 mm
- Working range: 200 mm to 2500 mm depending on lens
- Illumination: Integrated white LED, 6500 K ± 1000 K
- Shutter technology: Global shutter
- Lens: C-mount, 25 mm focal length, optical format 1/1.8"
- Power supply: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Connection types: M12 17-pin male (Power, I/O), M8 4-pin female (external illumination), M12 8-pin female (Gigabit Ethernet), M12 4-pin female (fieldbus Ethernet)
- Communication protocols: Ethernet TCP/IP, PROFINET, EtherNet/IP
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- MTBF: 100,000 hours
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS color sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination (6,500 K)
- Adjustable manual optical focus
- Supports multiple communication protocols including Ethernet, PROFINET, and EtherNet/IP
- Robust aluminum die cast housing with IP65 rating
- High sensor resolution of 5.1 Megapixels
- Global shutter technology for precise image capture
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade
- Supports customer-specific tool development via SICK AppSpace and AppStudio
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor integration and electrical wiring standards to ensure compliance and optimal performance.
Applications
- Industrial automation for quality inspection
- Object detection and measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Position determination in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated LED illumination reduces energy consumption compared to external lighting solutions
- Durable aluminum housing extends product lifespan, reducing waste
- Supports software upgrades to extend device functionality without hardware replacement
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

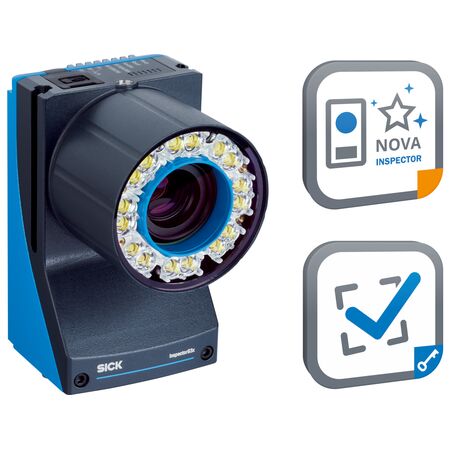

The SICK V2D8305P-1CCKEXAF1SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial automation and quality inspection applications.
