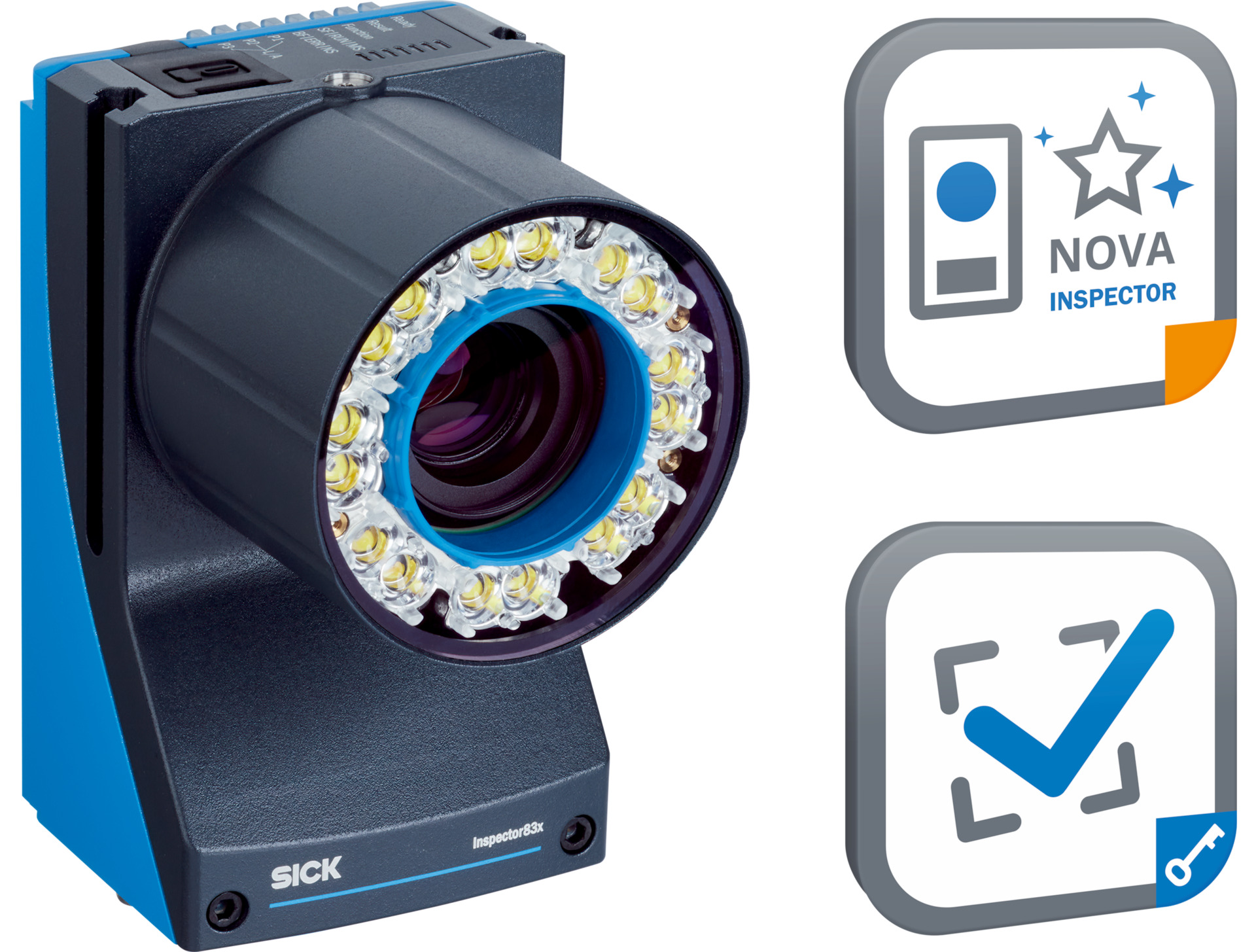

2D Snapshot Sensor | 5.1 Megapixels | IP65 Rated | Adjustable Focus | by SICK
The 2D Snapshot Sensor is designed for industrial automation, featuring a high resolution of 5.1 Megapixels and integrated white LED illumination for optimal quality inspection. With programmable capabilities via SensorApp Nova Inspector and robust IP65 aluminum housing, this sensor is perfect for object detection, measurement, and pattern recognition in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5.1 Megapixels)
- Pixel size: 2.74 µm x 2.74 µm
- Sensor size: 6.75 mm x 5.61 mm
- Scan/frame rate: 30 Hz
- Supply voltage: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- Connection types: M12 17-pin male, M8 4-pin female, M12 8-pin female, M12 4-pin female connectors
- Illumination: Integrated white LED, 6,500 K ± 1,000 K
- Optical focus: Adjustable manually
- Communication: Ethernet TCP/IP, PROFINET, EtherNet/IP
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Vibration resistance: EN 60068-2-6:2007, EN 60068-2-64:2019
- Shock resistance: EN 60068-2-27:2008
- Dimensions (H x L x W): 60mm x 120mm x 100mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS color sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination (6,500 K)
- Adjustable manual optical focus
- High sensor resolution of 5.1 Megapixels
- Global shutter technology for clear image capture
- Multiple communication interfaces including Ethernet, PROFINET, and EtherNet/IP
- Robust IP65 aluminum die-cast housing
- Supports external illumination and multiple I/O options
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with electrical standards.
Applications
- Industrial automation for quality inspection
- Object detection and measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Position determination in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

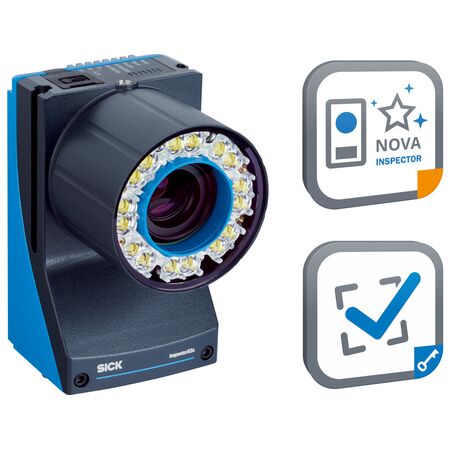

The SICK V2D8305P-1CCIBXAF1SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial automation and quality inspection applications.
