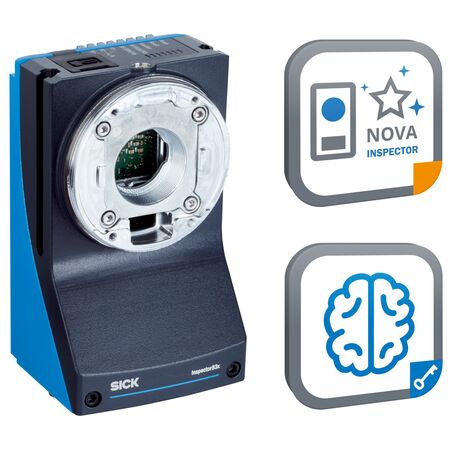

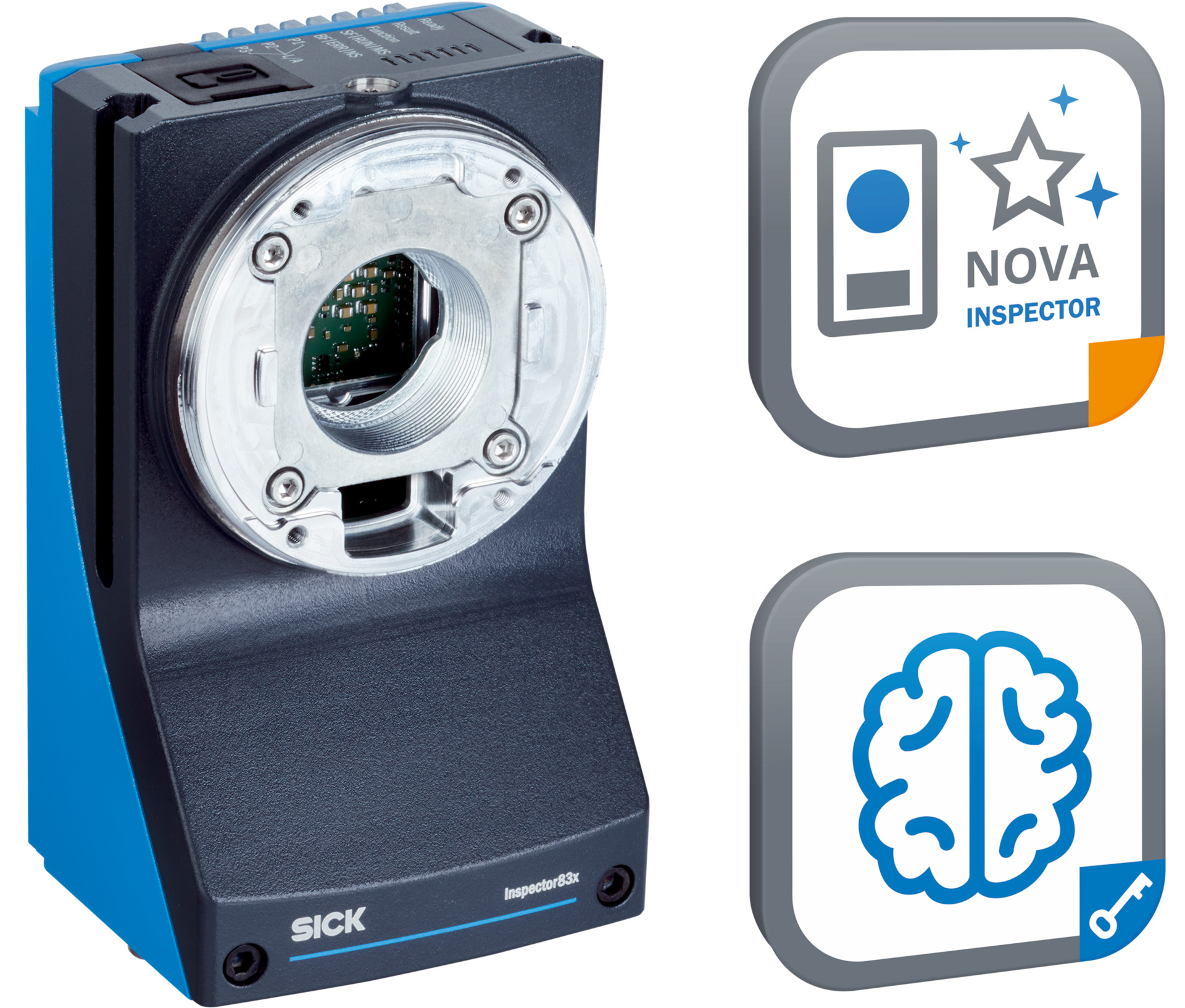

2D Snapshot Sensor | 5.1 Mpixel Resolution | IP65 Rated | Global-Shutter Technology | by SICK
The 2D Snapshot Sensor offers high-performance imaging with a 5.1 Mpixel resolution and global-shutter technology, making it ideal for industrial automation and quality control applications. With robust IP65-rated aluminum housing and multiple Ethernet interfaces, this sensor is designed for reliable operation in demanding environments, ensuring accurate detection and measurement of objects, dimensions, and 2D codes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5.1 Mpixel)
- Pixel size: 2.74 µm x 2.74 µm
- Sensor size: 6.75 mm x 5.61 mm
- Scan/frame rate: 30 Hz
- Supply voltage: 24 V DC ± 20%
- Power consumption: 21 W
- Connection types: M12 17-pin male (Power, I/O), M8 4-pin female (external illumination), M12 8-pin female (Gigabit Ethernet), M12 4-pin female (fieldbus Ethernet)
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Vibration resistance: EN 60068-2-6:2007, EN 60068-2-64:2019
- Shock resistance: EN 60068-2-27:2008
- MTBF: 100,000 hours
- Interfaces: Ethernet TCP/IP, PROFINET Dual Port, EtherNet/IP™ Dual Port
- Operator interfaces: Web server
- Configuration software: Web GUI, SICK AppManager, SICK AppStudio
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- Optical indicators: 8 status LEDs
- Dimensions (H x L x W): 55mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Programmable and configurable via SensorApp Nova Inspector
- Includes Intelligent Inspection License with no time limit
- Adjustable manual optical focus with C-mount lens option
- Global-Shutter shutter technology
- High sensor resolution of 2464 px x 2048 px (5.1 Mpixel)
- Multiple Ethernet interfaces including PROFINET and EtherNet/IP™
- Robust aluminum die cast housing with IP65 rating
- Supports external illumination and multiple configurable I/O
- Web server operator interface and advanced configuration software
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial vision systems and network protocols to ensure optimal performance and safety.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting numbers
- Identifying 2D codes, OCR, patterns, classification, and sorting
- Determining 2D position
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient 24 V DC operation reduces power consumption
- Durable IP65 rated housing extends product lifespan and reduces waste
- Supports external illumination to optimize energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D8305P-1MCXXXAF0SXXXX 2D snapshot sensor is available for immediate purchase, ideal for industrial automation, quality control, and inspection applications.
