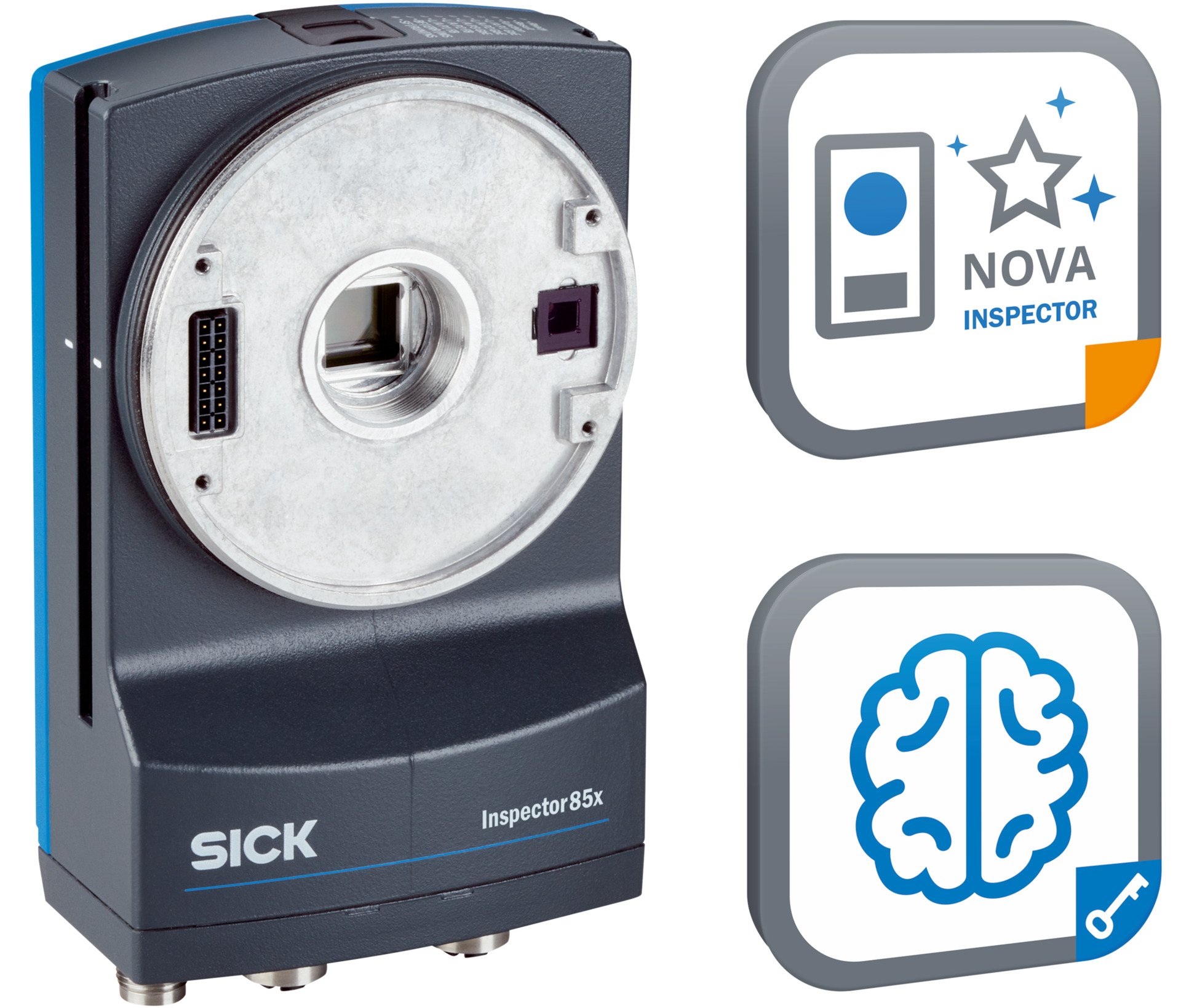

2D Snapshot Sensor | 5 Megapixel CMOS | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for industrial automation, featuring a high-resolution 5 Megapixel CMOS monochrome image sensor and global-shutter technology. Ideal for precise object detection, measurement, and identification, this sensor operates within a working range of 500 mm to 2,500 mm and is equipped with multiple industrial Ethernet interfaces for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Sensor resolution: 2464 px x 2048 px (5 Megapixel)
- Pixel size: 2.74 µm x 2.74 µm
- Sensor size: 6.75 mm x 5.61 mm
- Shutter technology: Global-Shutter
- Optical focus: Adjustable manually
- Working range: 500 mm to 2,500 mm depending on lens
- Lens: C-mount (to be ordered separately)
- Illumination: Ordered separately as accessories
- Feedback spot: LED green 525 nm ± 15 nm
- Alignment aid: Red laser 630-680 nm, Laser class 1
- Connection types: Multiple M12 connectors including power, I/O, external illumination, Gigabit Ethernet, and fieldbus Ethernet
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typically 24 W ± 20%
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- MTBF: 100,000 hours
- Scan/frame rate: 40 Hz
- Interfaces: Ethernet TCP/IP, PROFINET Dual Port, EtherNet/IP Dual Port
- Inputs/outputs: 2 opto-decoupled inputs, 4 configurable I/O
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Altitude: < 5,000 m
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Programmable and configurable via SensorApp Nova Inspector
- Includes Intelligent Inspection License with no time limit
- Expandable with SICK Nova Tool plug-in and customizable via SICK AppSpace and AppStudio
- Adjustable manual optical focus with C-mount lens option
- Global-Shutter shutter technology
- Working range from 500 mm to 2,500 mm depending on lens
- LED feedback spot (green, 525 nm) and red laser alignment aid (630-680 nm)
- IP65 rated aluminum die-cast housing
- Multiple industrial Ethernet interfaces including PROFINET and EtherNet/IP
- High sensor resolution of 2464 x 2048 pixels (5 Megapixel) with 40 Hz frame rate
- Robust electromagnetic compatibility and vibration/shock resistance
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and network protocols to ensure optimal performance and safety.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- Determining 2D position
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP65 housing ensures long product life and reduces waste
- Energy-efficient 24 V DC operation minimizes power consumption
- Supports precise inspection reducing material waste in production
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

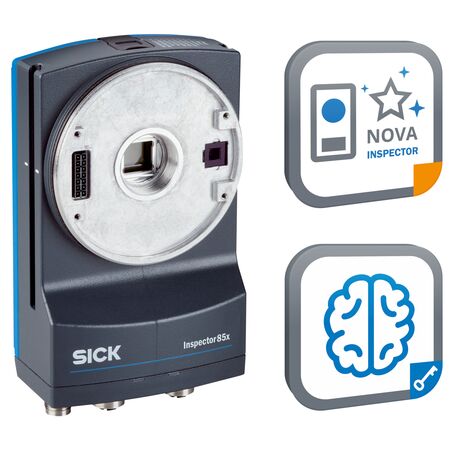

The SICK V2D8505P-1MCXXXAF0SXXXX 2D snapshot sensor is available for immediate purchase, ideal for industrial automation applications requiring precise object detection, measurement, and identification.
