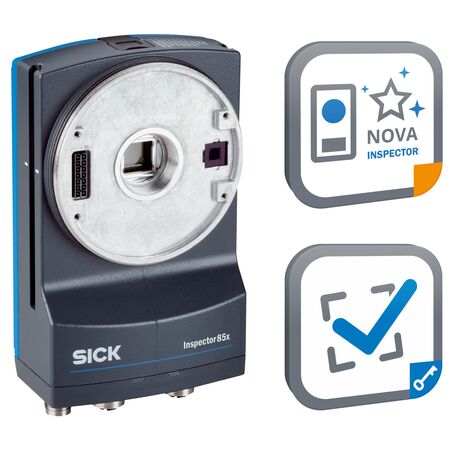

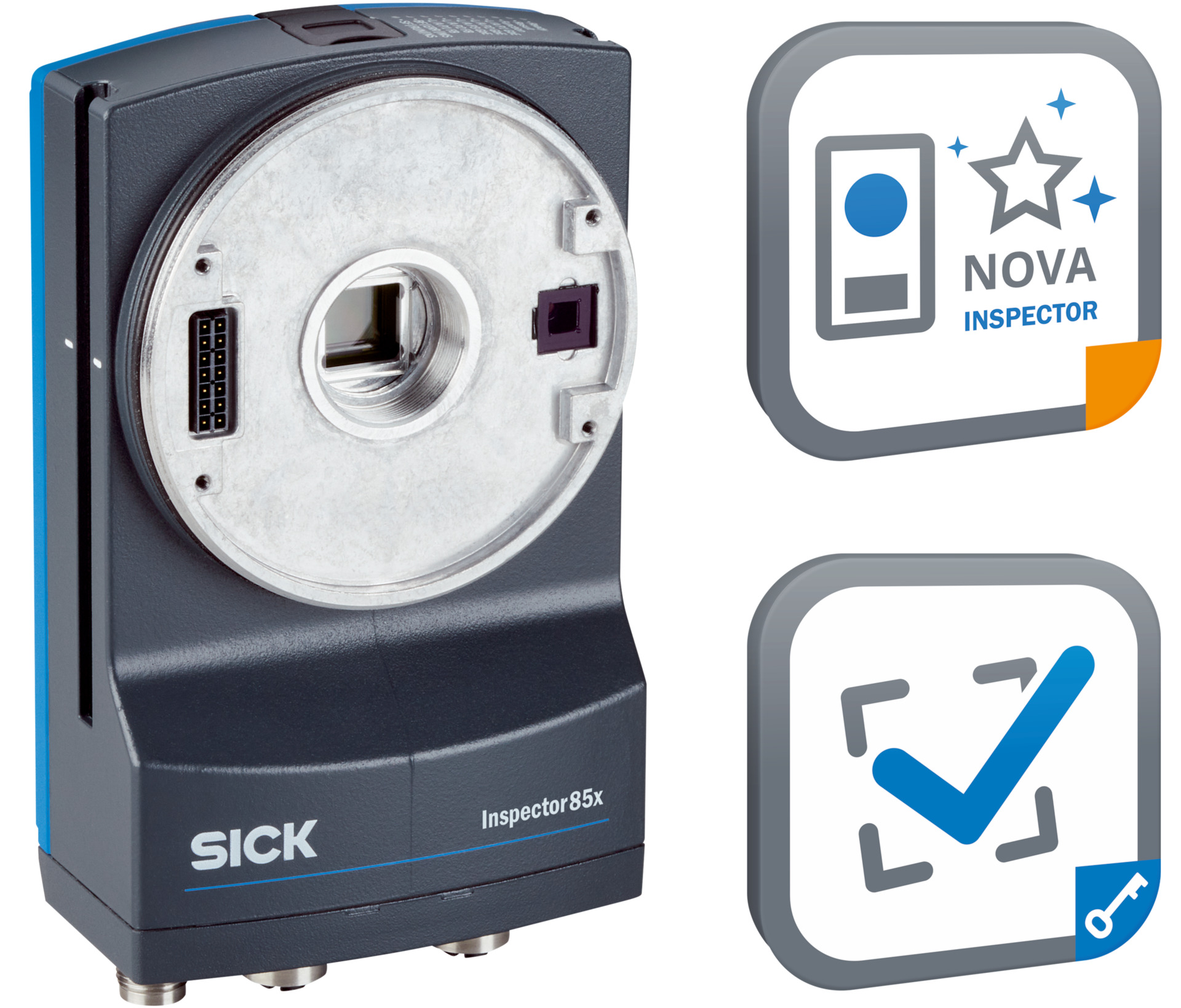

2D Snapshot Sensor | 5 Megapixel Resolution | IP65 Rated | Adjustable Optical Focus | by SICK
The 2D Snapshot Sensor is designed for high-precision quality inspection and measurement in industrial settings. Featuring a 5 Megapixel CMOS monochrome sensor and global-shutter technology, it ensures accurate dimension and contour measurements. With multiple interface options including Ethernet and PROFINET, this robust sensor is perfect for applications like 2D code identification and pattern recognition.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5 Megapixel)
- Pixel size: 2.74 µm x 2.74 µm
- Sensor size: 6.75 mm x 5.61 mm
- Scan/frame rate: 40 Hz
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typically 24 W ± 20%
- Enclosure rating: IP65 (IEC 60529)
- Housing material: Aluminum die cast
- Connection types: Multiple M12 connectors including 17-pin male, 5-pin female, 8-pin female, and 4-pin female
- Interfaces: Ethernet (TCP/IP), PROFINET Dual Port, EtherNet/IP Dual Port
- Inputs/outputs: 2 opto-decoupled inputs, 4 configurable I/O
- Optical focus: Adjustable manually
- Laser class: Class 1 compliant with IEC 60825-1:2014
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- MTBF: 100,000 hours
- Dimensions (H x L x W): 46mm x 143.3mm x 90mm
- Weight: 0.64 kg
Key Features
- 2D snapshot technology with 5 Megapixel CMOS monochrome sensor
- Programmable and configurable via SensorApp Nova Inspector
- Adjustable manual optical focus with C-mount lens
- Global-Shutter shutter technology
- LED feedback spot and red laser alignment aid
- Multiple interface options including Ethernet, PROFINET, and EtherNet/IP
- Robust aluminum die-cast housing with IP65 rating
- Supports customer-specific tool development via SICK AppSpace and AppStudio
- High electromagnetic compatibility and vibration/shock resistance
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and network protocols.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Sorting and 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with 24 V DC supply
- Supports digital inspection reducing material waste through early defect detection
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK V2D8505P-1MCXXXAF0SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and measurement applications.
