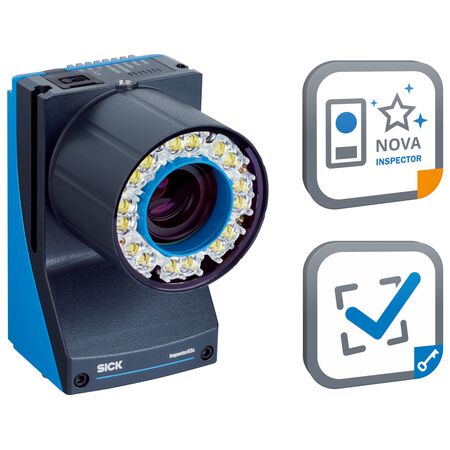

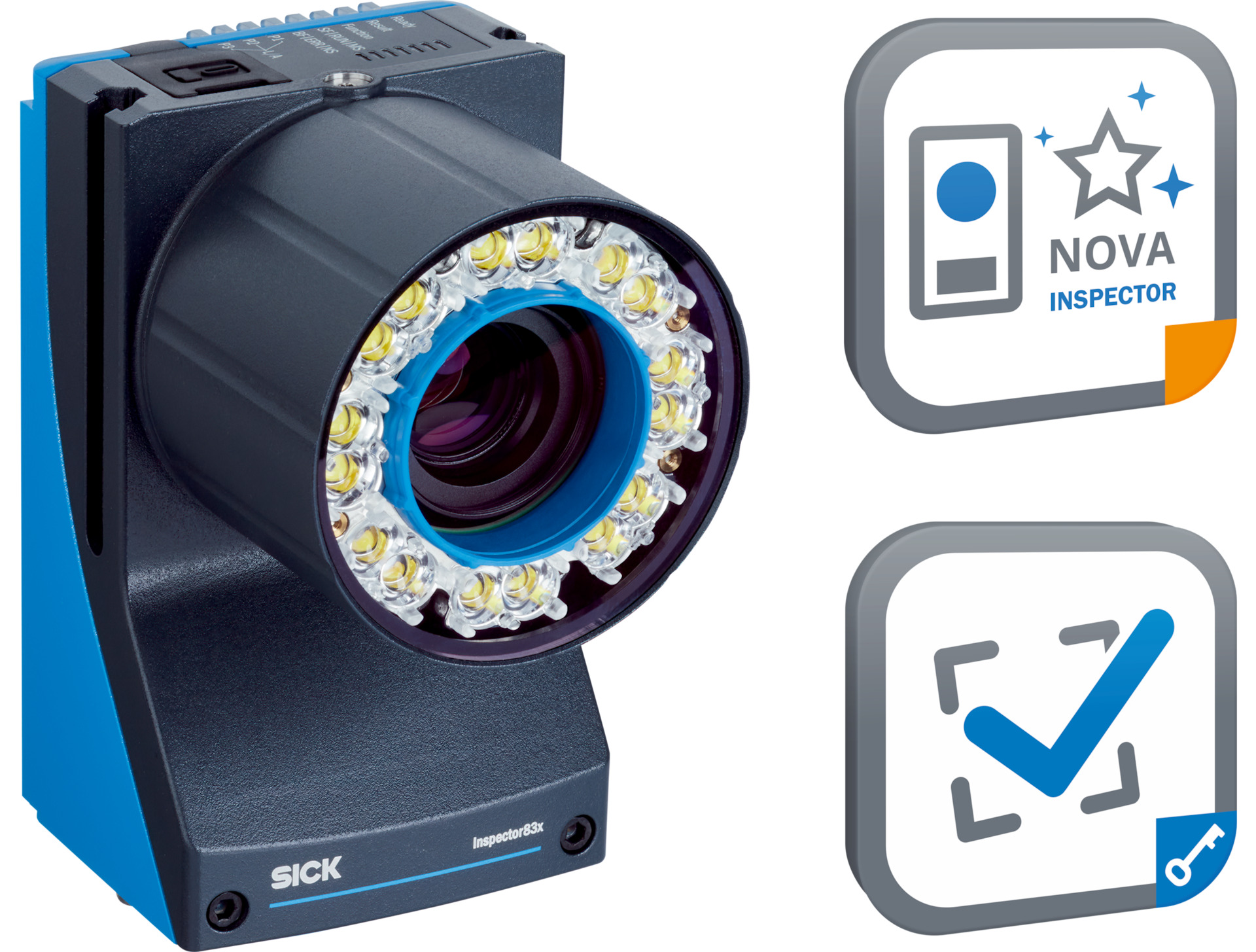

2D Snapshot Sensor | CMOS Color with Global-Shutter | 1.3 Mpixel Resolution | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for quality inspection in industrial settings, featuring advanced CMOS color technology and a high resolution of 1,232 px x 1,024 px. With integrated white LED illumination and robust IP65 aluminum housing, it ensures reliable performance in various applications, including dimension measurement and pattern recognition. Ideal for manufacturing environments, this sensor supports multiple interfaces for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Sensor: CMOS Color with Global-Shutter
- Sensor resolution: 1,232 px x 1,024 px (1.3 Mpixel)
- Pixel size: 5.48 µm x 5.48 µm
- Sensor size: 6.75 mm x 5.61 mm
- Working range: 200 mm to 2,500 mm depending on lens
- Illumination: Integrated white LED, 6,500 K ± 1,000 K
- Lens: C-mount, 8 mm focal length, optical format 1/1.8"
- Power supply: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, Web server
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Vibration and shock resistance compliant with EN 60068 standards
- MTBF: 100,000 hours
- Dimensions (H x L x W): 84.5mm x 108mm x 63.1mm
- Weight: 0.545 kg
Key Features
- 2D snapshot technology with CMOS color sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination (6,500 K ± 1,000 K)
- Adjustable manual optical focus
- Global-Shutter shutter technology
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP
- Robust IP65 aluminum die cast housing
- High sensor resolution of 1,232 px x 1,024 px (1.3 Mpixel)
- Supports external illumination and multiple I/O configurations
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Sorting and 2D position determination
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Integrated LED illumination reduces need for external lighting, lowering energy consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Supports efficient quality control to minimize defective products and material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8301P-1CCIBXAF1SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and automation applications.
