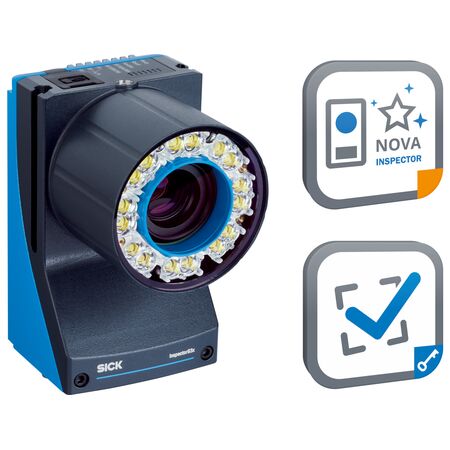

2D Snapshot Sensor | CMOS Color 1.3 Mpixel | Global-Shutter Technology | Adjustable Focus | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for precision quality inspection in industrial settings, featuring a high-resolution CMOS color sensor with 1,232 px x 1,024 px resolution. With global-shutter technology and integrated white LED illumination, it ensures accurate measurements and reliable performance. Ideal for automation applications, this sensor supports various interfaces including Ethernet and PROFINET, making it a versatile choice for modern manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Sensor: CMOS Color, 1,232 px x 1,024 px resolution
- Shutter: Global-Shutter
- Optical focus: Adjustable manually
- Working range: 200 mm to 2,500 mm depending on lens
- Illumination: Integrated white LED, 6,500 K ± 1,000 K
- LED class: Risk group 1 (IEC 62471)
- Lens: C-mount, 25 mm focal length, 1/1.8" optical format
- Connection types: M12 17-pin male, M8 4-pin female, M12 8-pin female (Gigabit Ethernet), M12 4-pin female (fieldbus Ethernet)
- Supply voltage: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- Weight: 545 g without lens and cables
- MTBF: 100,000 hours
- Scan/frame rate: 30 Hz
- Interfaces: Ethernet TCP/IP, PROFINET Dual Port, EtherNet/IP Dual Port
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Altitude: < 5,000 m
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS color sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination (6,500 K)
- Adjustable manual optical focus
- Global-Shutter shutter technology
- Multiple interface options including Ethernet, PROFINET, and EtherNet/IP
- Robust aluminum die cast housing with IP65 rating
- High sensor resolution of 1,232 px x 1,024 px (1.3 Mpixel)
- Supports customer-specific tool expansion via SICK AppSpace and AppStudio
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Position determination in automation
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Integrated LED illumination reduces need for external lighting, lowering energy consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Supports efficient quality inspection to minimize defective products and material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8301P-1CCKEXAF1SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and automation applications.
