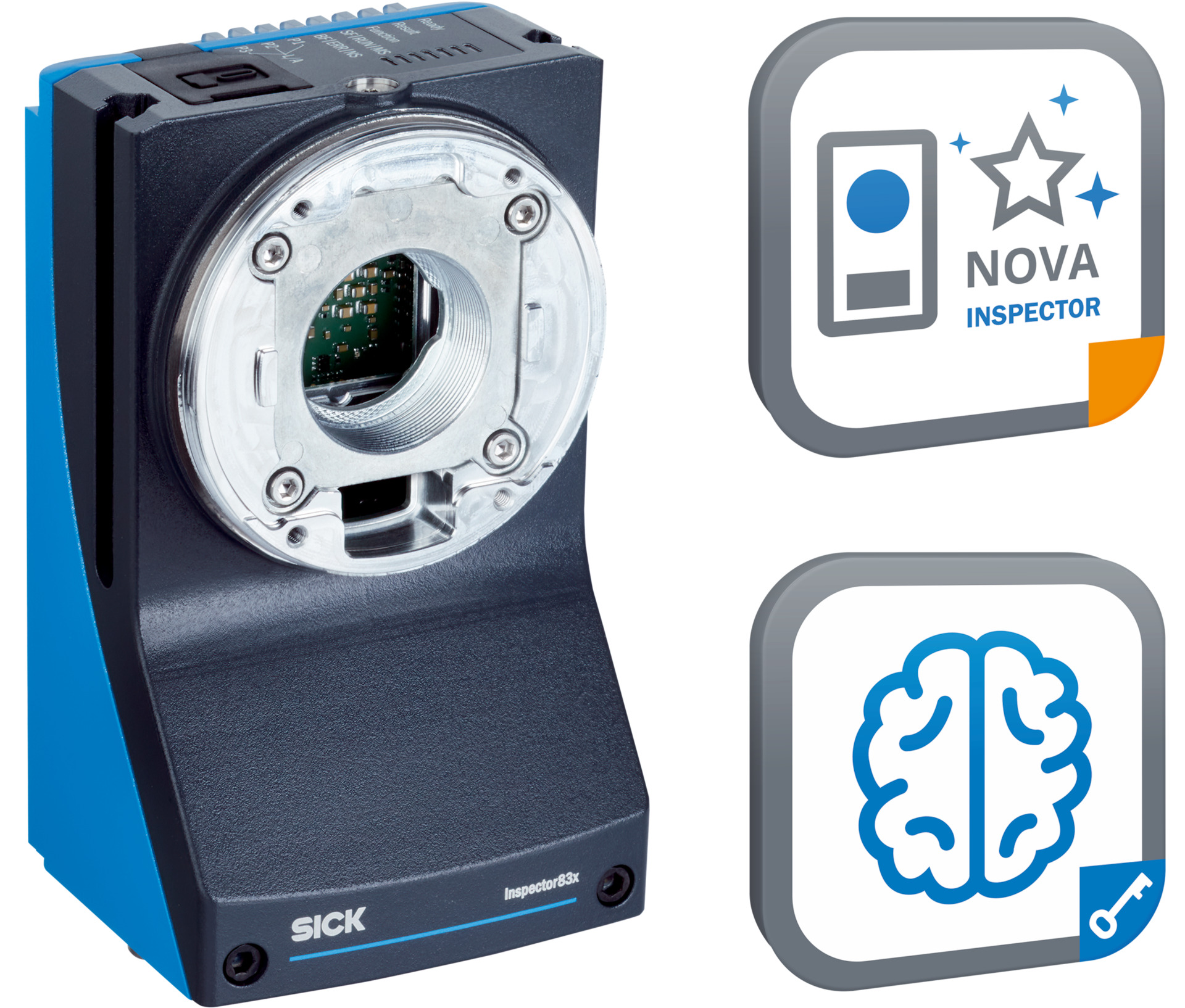

2D Snapshot Sensor | CMOS Color Sensor | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for industrial automation and quality control, featuring a high-resolution CMOS color sensor and global-shutter technology. With a working range of 200 mm to 2,500 mm and multiple Ethernet interfaces, it’s perfect for detecting objects, measuring dimensions, and identifying 2D codes. Built for durability with an IP65 rated aluminum housing, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Sensor: CMOS Color, 1,232 px x 1,024 px resolution
- Pixel size: 5.48 µm x 5.48 µm
- Sensor size: 6.75 mm x 5.61 mm
- Shutter technology: Global-Shutter
- Optical focus: Adjustable manually
- Working range: 200 mm to 2,500 mm depending on lens
- Lens: C-mount, 1/1.8" optical format (ordered separately)
- Supply voltage: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- Weight: 545 g without lens and cables
- MTBF: 100,000 hours
- Interfaces: Ethernet TCP/IP, PROFINET Dual Port, EtherNet/IP™ Dual Port
- Data transmission rate: 10/100/1,000 Mbit/s
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- External illumination support with max 1 A supply
- Optical indicators: 8 status LEDs
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Altitude: < 5,000 m
- Dimensions (H x L x W): 55mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS color sensor
- Programmable and configurable via SensorApp Nova Inspector
- Includes Intelligent Inspection License with unlimited time period
- Adjustable manual optical focus with C-mount lens option
- Global-Shutter shutter technology
- Working range from 200 mm to 2,500 mm depending on lens
- Multiple Ethernet interfaces including PROFINET and EtherNet/IP™
- IP65 rated aluminum die cast housing
- High sensor resolution of 1,232 px x 1,024 px (1.3 Mpixel)
- Scan/frame rate of 30 Hz
- Supports external illumination and multiple configurable I/O
- Web server and configuration software support including Web GUI, SICK AppManager, and SICK AppStudio
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- Determining 2D position
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient design reduces power consumption with only 21 W power usage
- Durable IP65 rated housing ensures long product life and reduces waste
- Supports external illumination to optimize energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

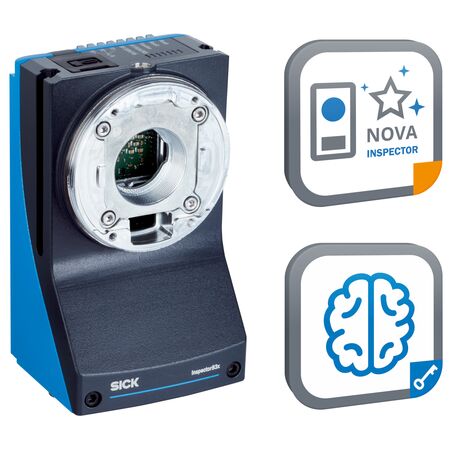

The SICK V2D8301P-1CCXXXAF0SXXXX 2D snapshot sensor is available for immediate purchase, ideal for industrial automation, quality control, and inspection applications.
