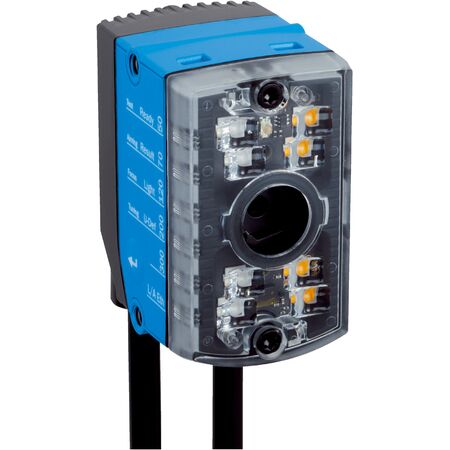

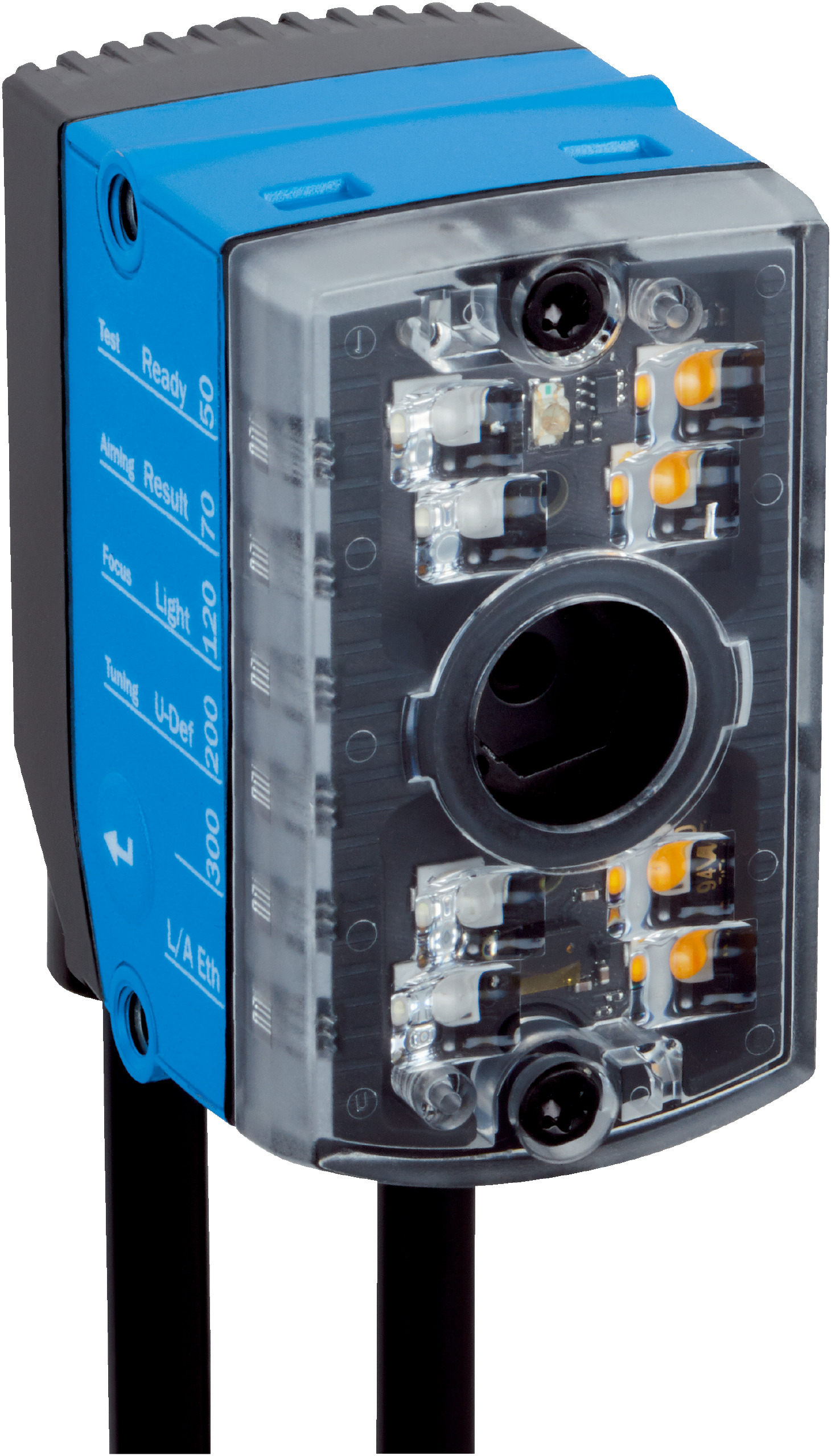

2D Snapshot Sensor | CMOS Monochrome | 1280 x 960 Resolution | IP54 Rated | by SICK
The 2D Snapshot Sensor is designed for industrial quality inspection, featuring advanced CMOS monochrome technology and a high resolution of 1280 px x 960 px. With a working range of 50 mm to 300 mm and integrated amber and blue LED illumination, it excels in detecting standard objects, measuring dimensions, and identifying 2D codes. Built for durability with an IP54 rating, this sensor is perfect for automated object detection applications in various industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Sensor: CMOS monochrome with global shutter
- Resolution: 1280 px x 960 px (1.2 Mpixel)
- Working range: 50 mm to 300 mm with internal illumination
- Illumination: Integrated amber (617 nm) and blue (470 nm) LEDs
- Feedback spot: Green LED (525 nm)
- Alignment aid: Red LED (630 nm)
- Laser class: 1 (IEC 60825-1:2014 compliant)
- LED class: Risk group 1 (IEC 62471)
- Power supply: 12 V DC to 24 V DC ±15%
- Power consumption: Typically 3.5 W
- Enclosure rating: IP54
- Housing material: Zinc diecast
- Window material: PMMA
- Interfaces: RS-232, Ethernet TCP/IP, EtherNet/IP™, PROFINET
- Data transmission rate: 10/100 MBit/s
- Inputs/outputs: 2 inputs, 3 configurable I/O
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- MTBF: 75,000 hours
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- 2D snapshot technology with programmable and configurable options
- Uses CMOS monochrome image sensor with global shutter
- Adjustable manual optical focus with working range 50 mm to 300 mm
- Integrated amber and blue LED illumination with visible feedback spot and alignment aid
- Complies with laser class 1 and LED risk group 1 safety standards
- High sensor resolution of 1280 px x 960 px (1.2 Mpixel) with 40 Hz scan/frame rate
- Multiple interfaces including RS-232 serial, Ethernet TCP/IP, EtherNet/IP™, and PROFINET
- Web server operator interface and configuration via Web GUI, SICK AppManager, and SICK AppStudio
- Robust zinc diecast housing with IP54 protection rating
- Low power consumption at typically 3.5 W
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade License
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial sensor systems and network protocols.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns
- Classifying and sorting
- 2D position determination
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable zinc diecast housing extends product lifespan
- Complies with RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK V2D611P-MMSBE4 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and automated object detection applications.
