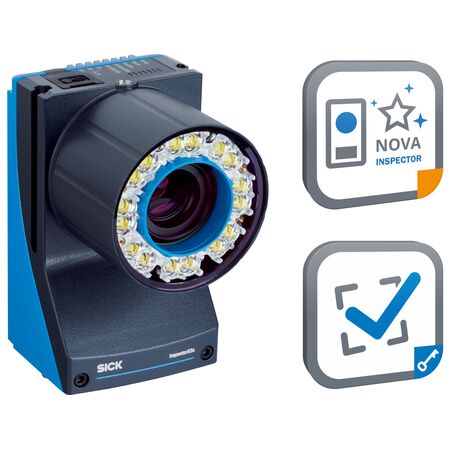

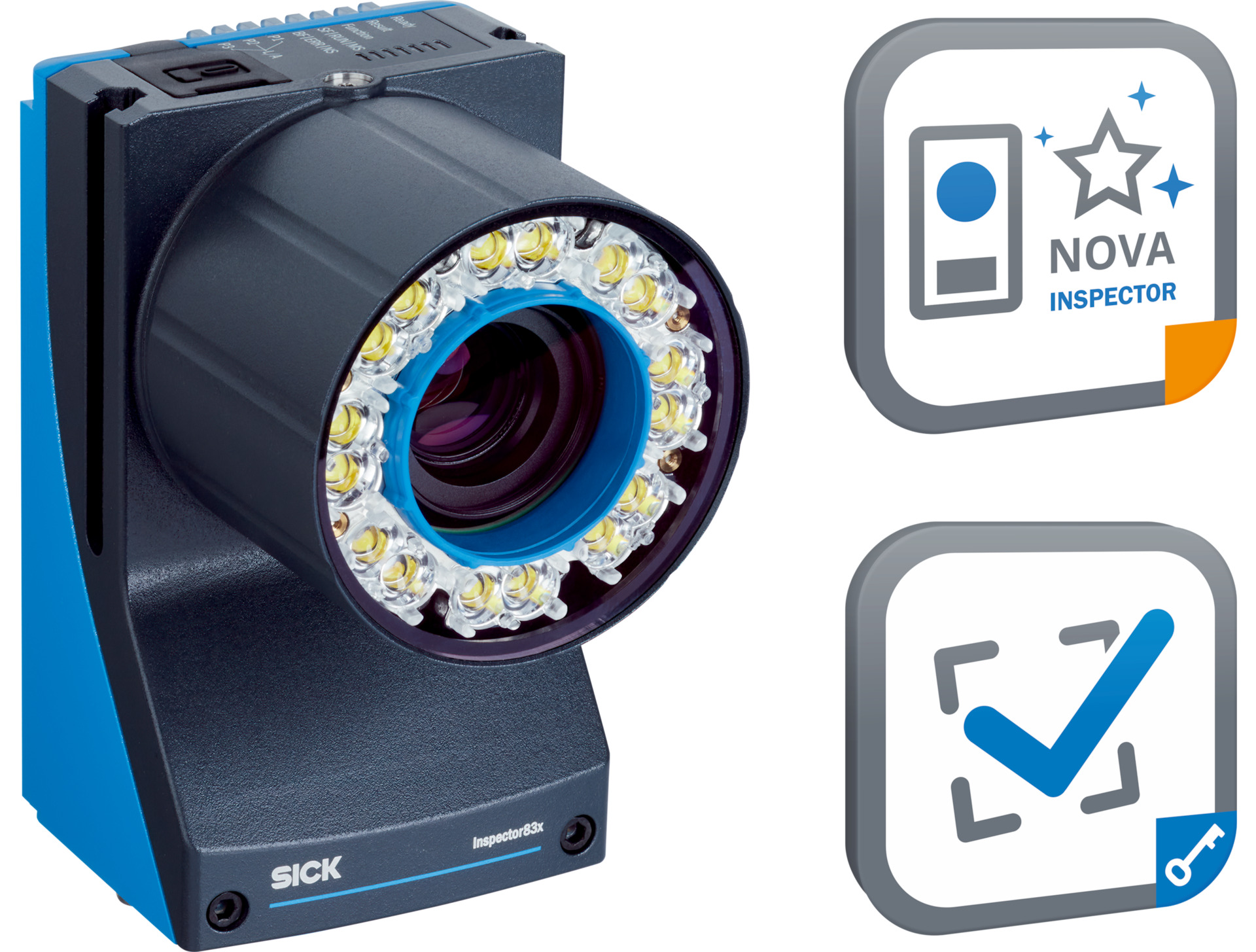

2D Snapshot Sensor | CMOS Monochrome | Global-Shutter Technology | Adjustable Focus | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for precision in industrial automation, featuring a high-resolution CMOS monochrome image sensor and global-shutter technology. With adjustable optical focus and integrated white LED illumination, it excels in quality control and inspection applications, ensuring accurate measurements and object detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Shutter technology: Global-Shutter
- Optical focus: Adjustable focus (manually)
- Working range: 200 mm to 2,500 mm depending on lens used
- Illumination: Integrated white LED, 6,500 K ± 1,000 K
- LED class: Risk group 1 (IEC 62471 / EN 62471)
- Lens: C-mount, optical format 1/1.8", focal length 16 mm
- Sensor resolution: 1,232 px x 1,024 px (1.3 Mpixel)
- Pixel size: 5.48 µm x 5.48 µm
- Sensor size: 6.75 mm x 5.61 mm
- Scan/frame rate: 60 Hz
- Connection types: M12 17-pin male (Power, I/O), M8 4-pin female (external illumination), M12 8-pin female (Gigabit Ethernet), M12 4-pin female (fieldbus Ethernet)
- Supply voltage: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- Weight: 545 g (without lens and cables)
- MTBF: 100,000 hours
- Interfaces: Ethernet TCP/IP, PROFINET Dual Port, EtherNet/IP Dual Port
- Operator interfaces: Web server
- Configuration software: Web GUI, SICK AppManager, SICK AppStudio
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- Output current: ≤ 50 mA
- Maximum encoder frequency: 50 kHz
- External illumination: Supported via connectors
- Optical indicators: 8 status LEDs
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Vibration resistance: EN 60068-2-6, EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Programmable and configurable via SensorApp Nova Inspector
- Adjustable manual optical focus
- Integrated white LED illumination (6,500 K ± 1,000 K)
- Global-Shutter shutter technology
- Supports multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP
- Robust aluminum die cast housing with IP65 rating
- High sensor resolution of 1,232 px x 1,024 px (1.3 Mpixel)
- 60 Hz scan/frame rate
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade License
- Supports expansion with SICK Nova Tool plug-in and development via SICK AppSpace and AppStudio
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration and integration with existing systems.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- 2D code identification
- Optical character recognition (OCR)
- Pattern identification
- Classification and sorting
- 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated LED illumination reduces energy consumption compared to traditional lighting
- Durable aluminum housing enhances product longevity and reduces waste
- Programmable features allow optimization of inspection processes, reducing material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D8301P-1MCKDXAF1SXXXX is available for immediate purchase, ideal for industrial automation, quality control, and inspection applications.
