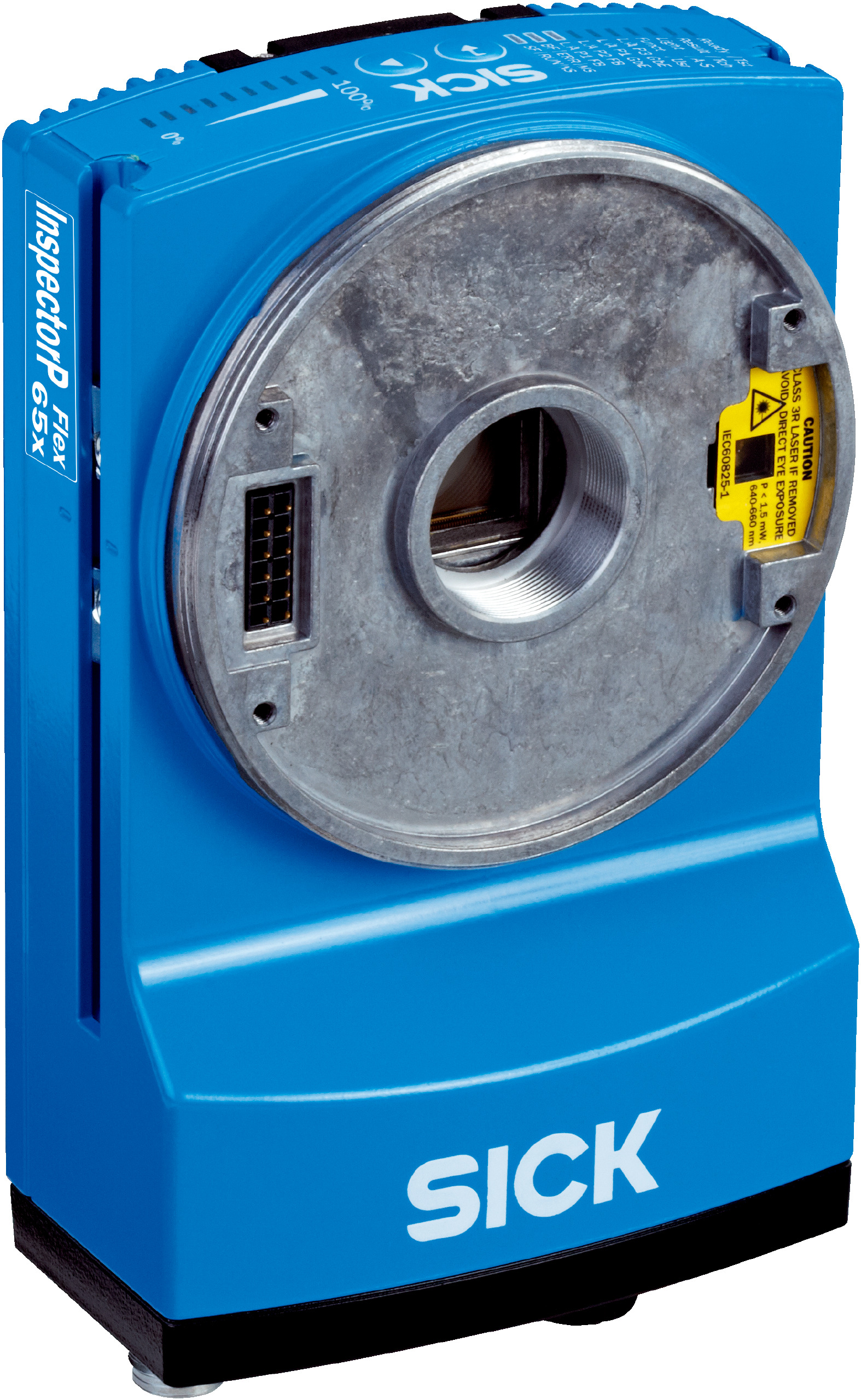

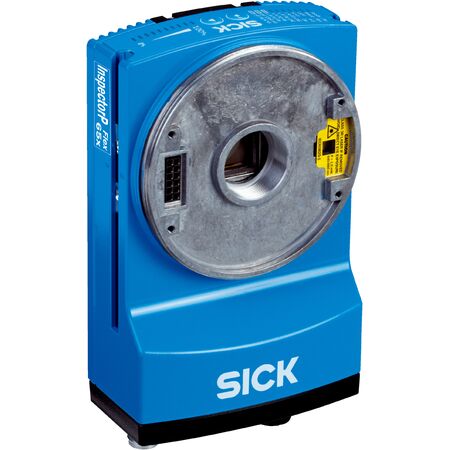

2D Snapshot Sensor | CMOS Monochrome | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor V2D652P-2MCXXA6 features advanced 2D snapshot technology with a high-resolution CMOS monochrome image sensor, perfect for industrial quality inspection and automated measurement applications. With global-shutter technology and adjustable optical focus, it ensures precise detection and measurement of objects, making it ideal for various automation tasks in manufacturing and logistics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Shutter technology: Global-Shutter
- Optical focus: Adjustable
- Illumination: Ordered separately (White, Red, Blue, Infrared)
- Laser class: 1 (Complies with IEC 60825-1 Ed.3)
- Spectral range: Approx. 400 nm to 900 nm
- Lens: C-mount, 1" optical format (ordered separately)
- Connection type: 1x M12 17-pin male, 1x M8 4-pin female (USB not used), 2x M12 8-pin socket (Gigabit Ethernet)
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Enclosure rating: IP65
- Protection class: III
- Housing material: Aluminum die cast
- Window material: Glass
- Sensor resolution: 2048 px x 1088 px (2.1 Mpixel)
- Scan/frame rate: 70 Hz
- Interfaces: Serial (RS-232, RS-422), Ethernet (TCP/IP), CAN, EtherNet/IP™, PROFINET
- Operator interfaces: Web server
- Configuration software: SICK AppStudio
- Data storage: microSD card and external FTP
- Inputs/outputs: 2 opto-decoupled inputs, 4 configurable inputs/outputs
- Output current: ≤ 100 mA
- Maximum encoder frequency: 1 kHz
- Control elements: 2 buttons
- Optical indicators: 21 LEDs
- Acoustic indicators: Beeper
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 46mm x 142mm x 90mm
- Weight: 0.635 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Programmable with SensorApp Nova Inspector
- Adjustable optical focus with C-mount lens option
- Global-Shutter shutter technology
- Laser alignment aid (Class 1 laser, 630 nm to 680 nm)
- High sensor resolution of 2048 px x 1088 px (2.1 Mpixel)
- Scan/frame rate of 70 Hz
- Multiple interface options including RS-232, RS-422, Ethernet, CAN, EtherNet/IP™, PROFINET
- IP65 rated aluminum die cast housing with glass window
- Supports image and data logging via microSD and FTP
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade License
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- Determining 2D position
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP65 rated housing ensures long product life and reduces waste
- Energy-efficient operation with typical power consumption of 20 W
- Supports digital data logging reducing paper and physical storage needs
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK V2D652P-2MCXXA6 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and automated measurement applications.
