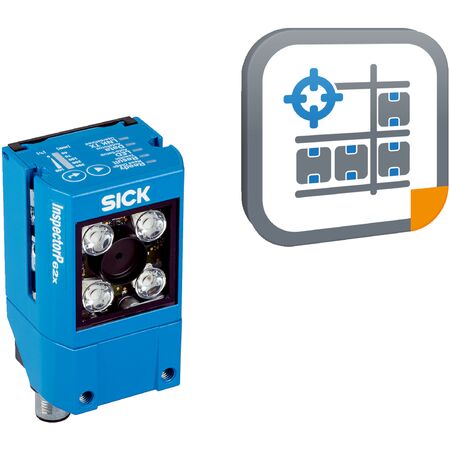

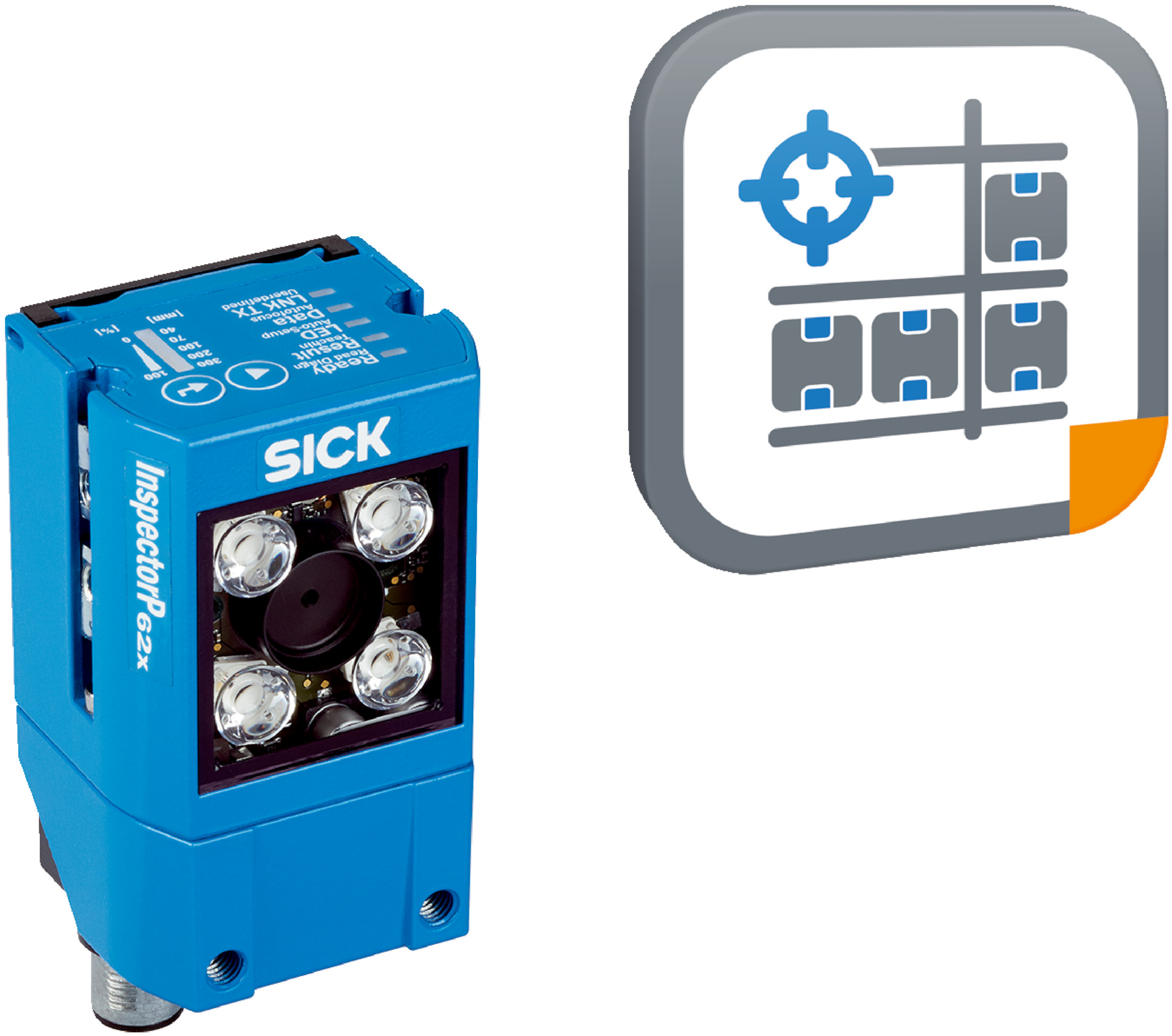

2D Snapshot Sensor | CMOS Monochrome | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for precise object localization in industrial automation, featuring advanced CMOS monochrome imaging and global-shutter technology. With an adjustable electric focus and integrated LED illumination, it ensures clear image capture from 50 mm to 700 mm. Ideal for applications like drill hole detection and positioning, this sensor is built to withstand tough environments with its IP65 rated aluminum housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Shutter technology: Global-Shutter
- Optical focus: Adjustable electric focus
- Working range: 50 mm to 350 mm or 50 mm to 700 mm
- Illumination: Integrated red and blue LEDs (617 nm and 470 nm)
- Feedback spot: Green LED (525 nm)
- Alignment aid: Red laser (630 nm to 680 nm), Laser class 1
- Sensor resolution: 1280 px x 1024 px (1.3 Mpixel)
- Repeatability: 0.05 mm to 0.1 mm typical
- Connection type: 1 x M12 17-pin male, 1 x M12 4-pin female (Ethernet)
- Supply voltage: 12 V DC to 24 V DC ±10%
- Power consumption: Typical 4 W
- Enclosure rating: IP65
- Protection class: III
- Housing material: Aluminum die cast
- Window material: PMMA
- Data transmission: Ethernet TCP/IP, PROFINET, FTP, HTTP
- Operator interfaces: Web interface, PLC interface
- Data storage: microSD card and external FTP
- Digital outputs: 4 outputs, 24 V, ≤ 100 mA
- Control elements: 2 buttons
- Optical indicators: 11 LEDs including status and feedback
- Acoustic indicators: Beeper
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 35.6mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Adjustable electric focus with 9.6 mm focal length lens
- Integrated red and blue LED illumination with visible light
- Green LED feedback spot and red laser alignment aid
- Global-Shutter shutter technology for clear image capture
- Working range from 50 mm to 700 mm depending on configuration
- IP65 rated aluminum die cast housing with PMMA window
- Ethernet and PROFINET interfaces with 10/100 MBit/s data rates
- 4 digital outputs with ≤ 100 mA output current
- Web interface and PLC interface for configuration
- Image and data logging via microSD and external FTP
- 11 LEDs for status and feedback indication, plus acoustic beeper
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Localizing, navigating and guiding in industrial automation
- 2D position determination for precise object localization
- Use in manufacturing for drill hole detection and positioning
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption at approximately 4 W reduces energy usage
- Durable IP65 rated housing extends product life and reduces waste
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D621P-2MSFBB5S51 2D Snapshot Sensor is available for immediate purchase, ideal for industrial automation and precise positioning applications.
