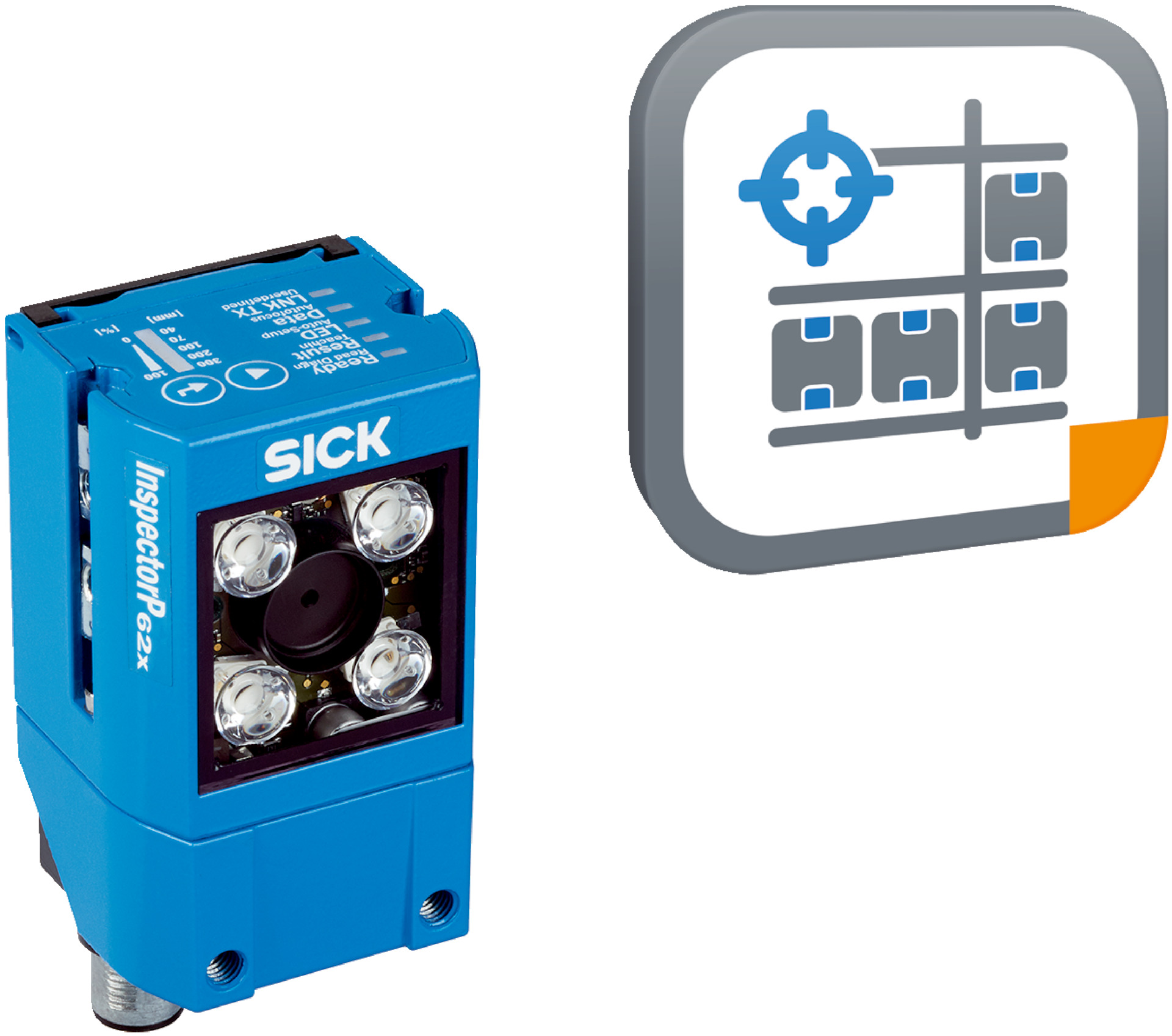

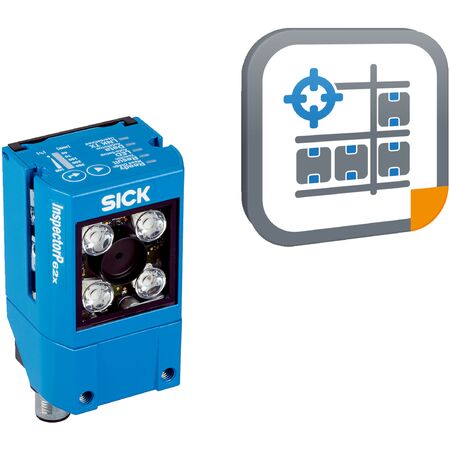

2D Snapshot Sensor | CMOS Monochrome | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for precise industrial positioning and quality control, featuring advanced CMOS monochrome imaging and global-shutter technology. With adjustable electric focus and integrated LED illumination, it excels in navigating and guiding automation tasks, ensuring high accuracy in drill hole inspections from 8 mm to 15 mm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Shutter technology: Global-Shutter
- Optical focus: Adjustable electric focus
- Working range: 50 mm to 1,950 mm
- Illumination: Integrated red and blue LEDs (617 nm and 470 nm)
- Feedback spot: Green LED (525 nm)
- Alignment aid: Red laser (630 nm to 680 nm), Laser class 1
- Focal length: 17 mm
- Connection type: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector (Ethernet)
- Supply voltage: 12 V DC to 24 V DC ±10%
- Power consumption: Typically 4 W
- Enclosure rating: IP65
- Protection class: III
- Housing material: Aluminum die cast
- Window material: PMMA
- Sensor resolution: 1280 px x 1024 px (1.3 Mpixel)
- Repeatability: 0.05 mm to 0.1 mm typical
- Target: Drill holes with diameter 8 mm to 15 mm
- Ethernet: TCP/IP with FTP and HTTP support, 10/100 MBit/s
- PROFINET: Supported, 10/100 MBit/s
- Operator interfaces: Web-Interface
- Configuration software: Web-Interface, PLC interface
- Data storage: Image and data logging via microSD and external FTP
- Digital outputs: 4 outputs, 24 V, ≤ 100 mA
- Control elements: 2 buttons
- Optical indicators: 11 LEDs including status and feedback spots
- Acoustic indicators: Beeper
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Shock and vibration resistance: EN 60068-2-27 and EN 60068-2-6
- Dimensions (H x L x W): 36mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Adjustable electric focus with 17 mm focal length lens
- Integrated red and blue LED illumination with visible wavelengths
- Green LED feedback spot and red laser alignment aid
- Global-Shutter shutter technology for accurate image capture
- High sensor resolution of 1280 px x 1024 px (1.3 Mpixel)
- Repeatability between 0.05 mm and 0.1 mm
- Robust aluminum die cast housing with IP65 protection rating
- Multiple interfaces including Ethernet (TCP/IP), PROFINET, and microSD data logging
- Low power consumption of approximately 4 W
- Complies with laser safety class 1 standards
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Localizing, navigating and guiding in industrial automation
- 2D position determination for precise positioning tasks
- Quality control and inspection of drill holes with diameters 8 mm to 15 mm
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now
The SICK V2D621P-2MSFFB5S51 2D Snapshot Sensor is available for immediate purchase. Ideal for industrial automation, navigation, and precise 2D positioning applications.
