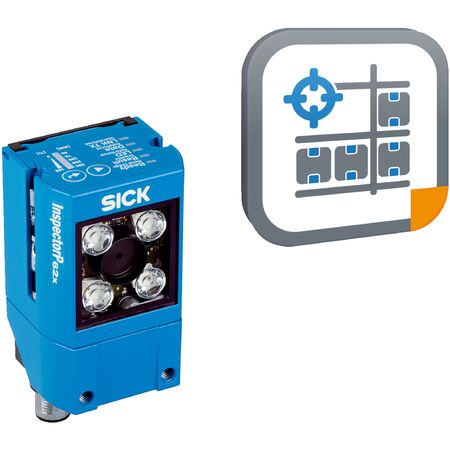

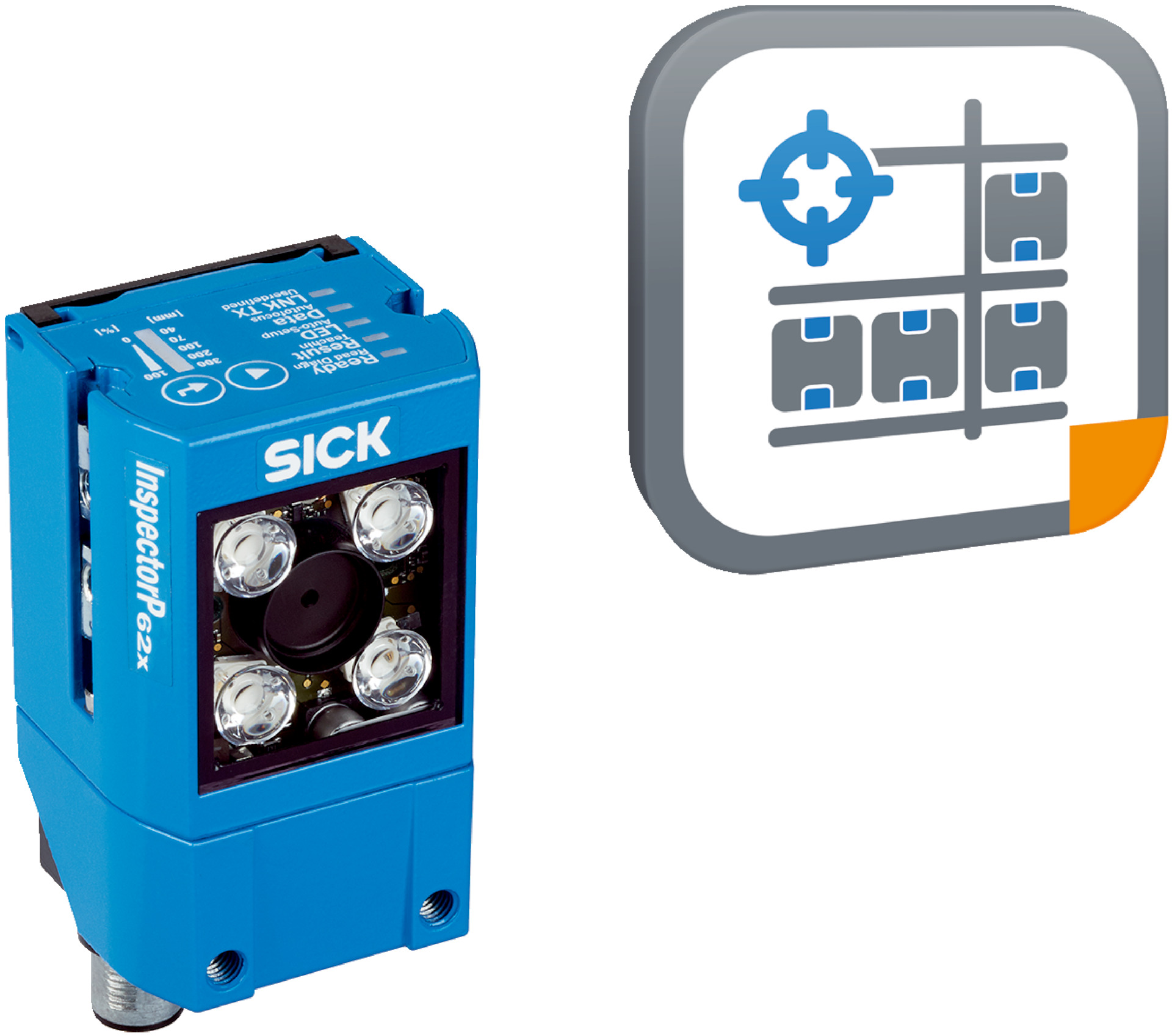

2D Snapshot Sensor | CMOS Monochrome | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for precision in industrial automation, featuring advanced CMOS monochrome imaging and global-shutter technology. With adjustable electric focus and integrated LED illumination, it excels in applications like navigation and position determination, even in cold storage environments. Built to last with an IP65 rated aluminum housing, this sensor ensures reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Shutter technology: Global-Shutter
- Optical focus: Adjustable electric focus
- Working range: 50 mm to 1,950 mm
- Illumination: Integrated red (617 nm) and blue (470 nm) LEDs
- Feedback spot: Green LED (525 nm)
- Sensor resolution: 1280 px x 1024 px (1.3 Mpixel)
- Repeatability: 0.05 mm to 0.1 mm typical
- Target: Drill holes with diameter 8 mm to 15 mm
- Connection type: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector
- Supply voltage: 12 V DC to 24 V DC ±10%
- Power consumption: Typically 4 to 6 W
- Enclosure rating: IP65
- Protection class: III
- Housing material: Aluminum die cast
- Window material: PMMA
- Data transmission rate: 10/100 MBit/s Ethernet and PROFINET
- Operator interfaces: Web-Interface
- Configuration software: Web-Interface, PLC interface
- Data storage: microSD memory card and external FTP
- Digital outputs: 4 outputs, 24 V, ≤ 100 mA
- Optical indicators: 11 LEDs including status displays and feedback spot
- Operating temperature: 0 °C to +50 °C (special conditions for cold storage)
- Storage temperature: -35 °C to +70 °C
- Dimensions (H x L x W): 35.6mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Adjustable electric focus lens with 17 mm focal length
- Integrated red and blue LED illumination
- Global-Shutter shutter technology
- IP65 rated aluminum die cast housing with PMMA window
- Supports Ethernet and PROFINET communication protocols
- Web interface and PLC interface for configuration
- Image and data logging via microSD and external FTP
- 4 digital outputs with ≤ 100 mA output current
- Cold storage capable with special conditions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical wiring standards to ensure proper setup and compliance with safety regulations.
Applications
- Localizing, navigating and guiding in automation
- 2D position determination for industrial processes
- Cold storage applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable IP65 housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D621P-2MCFFB6S51 2D Snapshot Sensor is available for immediate purchase, ideal for industrial automation, navigation, and position determination applications including cold storage environments.
