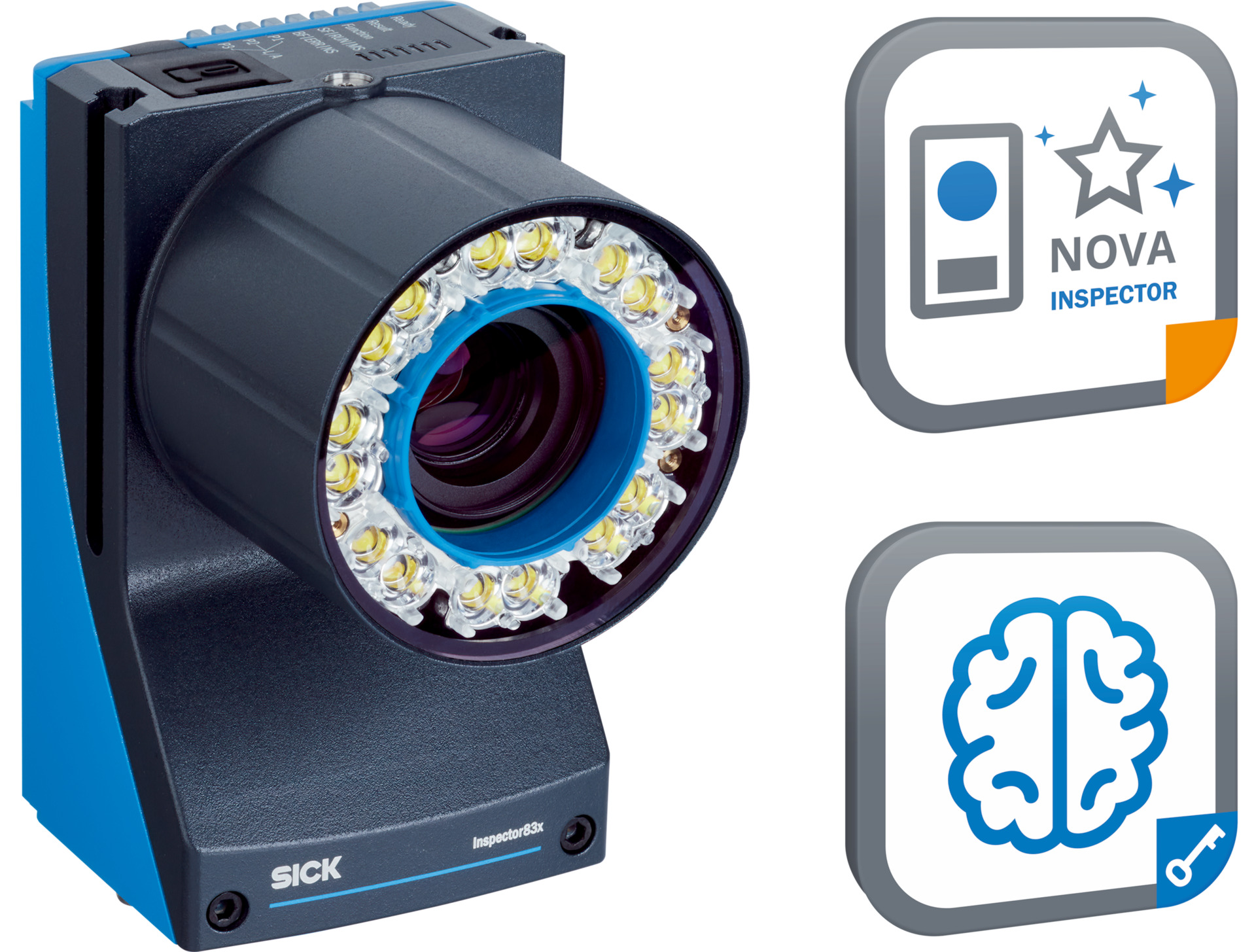

2D Snapshot Sensor | CMOS Monochrome | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor features advanced CMOS monochrome technology and global-shutter capabilities, making it ideal for industrial automation and quality inspection. With a high resolution of 2,464 px x 2,048 px and integrated white LED illumination, this sensor excels in detecting standard objects, measuring dimensions, and identifying 2D codes. Its robust aluminum housing ensures durability, while multiple industrial Ethernet interfaces provide seamless connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Sensor resolution: 2,464 px x 2,048 px (5.1 Mpixel)
- Pixel size: 2.74 µm x 2.74 µm
- Sensor size: 6.75 mm x 5.61 mm
- Shutter technology: Global-Shutter
- Optical focus: Adjustable (manual)
- Illumination: Integrated white LED, 6,500 K ± 1,000 K
- LED class: Risk group 1 (IEC 62471 / EN 62471)
- Working range: 200 mm to 2,500 mm depending on lens
- Connection types: M12 17-pin male, M8 4-pin female, M12 8-pin female (Gigabit Ethernet), M12 4-pin female (fieldbus Ethernet)
- Supply voltage: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- MTBF: 100,000 hours
- Scan/frame rate: 30 Hz
- Interfaces: Ethernet TCP/IP, PROFINET Dual Port, EtherNet/IP Dual Port
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- External illumination support with max 1 A output
- Optical indicators: 8 status LEDs
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination (6,500 K ± 1,000 K)
- Adjustable manual optical focus with C-mount lens (25 mm focal length)
- Global-Shutter shutter technology
- High sensor resolution of 2,464 px x 2,048 px (5.1 Mpixel)
- Multiple industrial Ethernet interfaces including PROFINET and EtherNet/IP™
- Robust aluminum die-cast housing with IP65 rating
- Supports external illumination and multiple configurable I/O
- Includes Intelligent Inspection License with unlimited license period
- Supports SICK AppSpace and SICK AppStudio for tool development and customization
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and network protocols to ensure optimal performance and safety.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- Determining 2D position
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

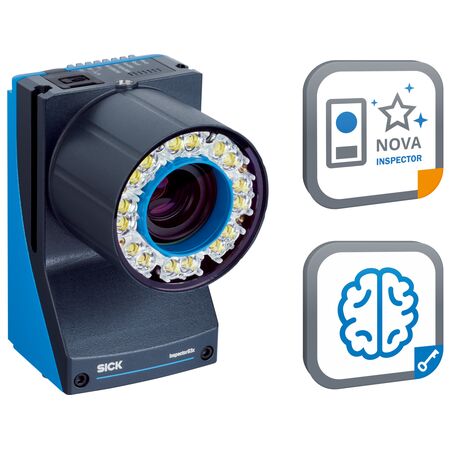

The SICK V2D8305P-1MCKEXAF1SXXXX 2D snapshot sensor is available for immediate purchase, ideal for industrial automation, quality inspection, and object detection applications.
