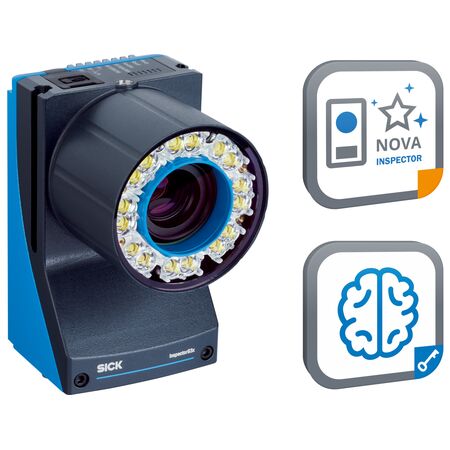

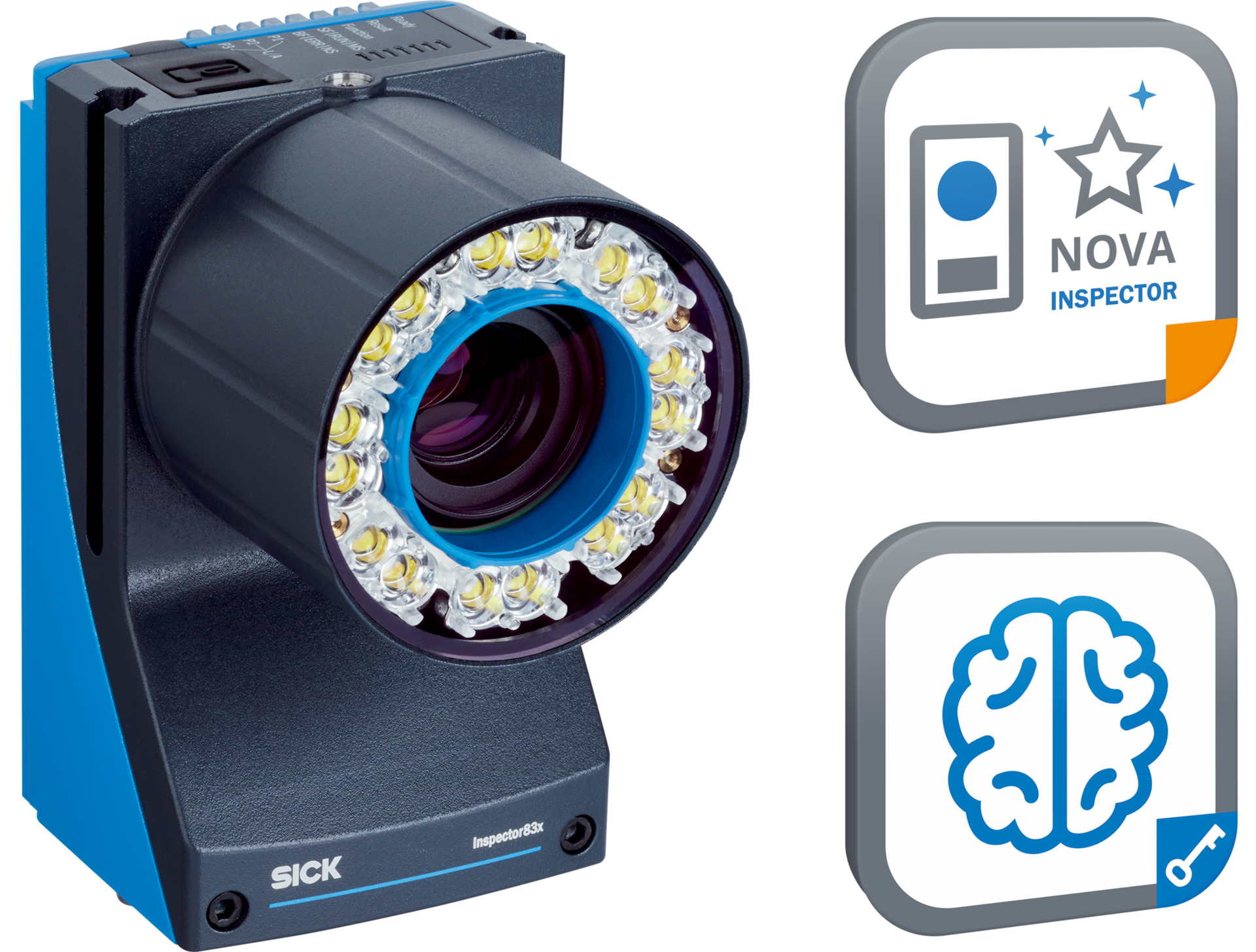

2D Snapshot Sensor | CMOS Monochrome | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for precision in industrial automation, featuring a high-resolution CMOS monochrome image sensor and global-shutter technology. Ideal for applications like object detection, dimension measurement, and 2D code identification, this robust sensor ensures reliable performance in various environments, thanks to its IP65-rated aluminum housing and integrated LED illumination.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Sensor resolution: 1,232 px x 1,024 px (1.3 Mpixel)
- Pixel size: 5.48 µm x 5.48 µm
- Sensor size: 6.75 mm x 5.61 mm
- Shutter technology: Global-Shutter
- Optical focus: Adjustable (manual)
- Lens: C-mount, 12 mm focal length, 1/1.8" optical format
- Working range: 200 mm to 2,500 mm depending on lens
- Illumination: Integrated white LED, 6,500 K ± 1,000 K
- LED class: Risk group 1 (IEC 62471 / EN 62471)
- Connection types: M12 17-pin male (Power, I/O), M8 4-pin female (external illumination), M12 8-pin female (Gigabit Ethernet), 2x M12 4-pin female (fieldbus Ethernet)
- Supply voltage: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65 (IEC 60529)
- Housing material: Aluminum die cast
- MTBF: 100,000 hours
- Scan/frame rate: 60 Hz
- Interfaces: Ethernet TCP/IP, PROFINET Dual Port, EtherNet/IP Dual Port
- Operator interfaces: Web server
- Configuration software: Web GUI, SICK AppManager, SICK AppStudio
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- Output current: ≤ 50 mA
- Maximum encoder frequency: 50 kHz
- Optical indicators: 8 status LEDs
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Altitude: < 5,000 m
- Dimensions (H x L x W): 84.5mm x 108mm x 63.1mm
- Weight: 0.545 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination (6,500 K ± 1,000 K)
- Adjustable manual optical focus with C-mount lens (12 mm focal length)
- Global-Shutter shutter technology
- High sensor resolution of 1,232 px x 1,024 px (1.3 Mpixel)
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™
- Robust aluminum die-cast housing with IP65 rating
- Supports external illumination and multiple configurable I/O
- Includes Intelligent Inspection License with unlimited license period
- Supports expansion via SICK Nova Tool plug-in and SICK AppSpace/AppStudio
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- Determining 2D position
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Integrated LED illumination reduces external lighting requirements and energy consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Supports efficient inspection processes that minimize material waste in production
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8301P-1MCICXAF1SXXXX 2D snapshot sensor is available for immediate purchase, ideal for industrial automation, quality control, and inspection applications.
