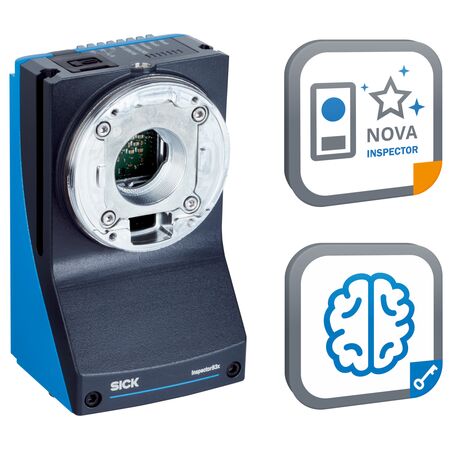

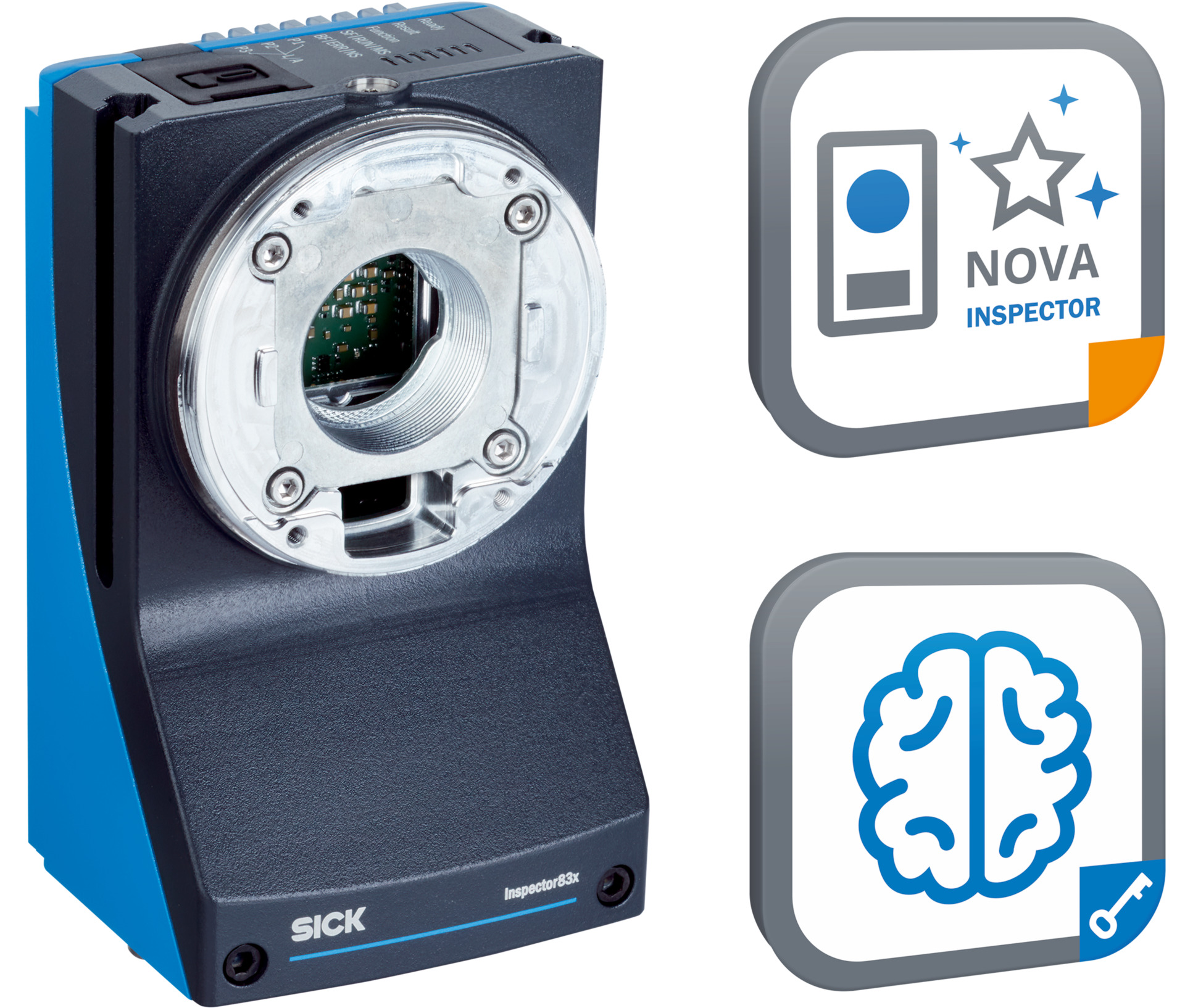

2D Snapshot Sensor | CMOS Monochrome | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for industrial automation, featuring advanced CMOS monochrome technology and global-shutter capabilities. With a high resolution of 1,232 px x 1,024 px, it excels in detecting objects, measuring dimensions, and identifying 2D codes. Built for robust performance, this sensor is ideal for quality control and inspection applications in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Sensor resolution: 1,232 px x 1,024 px (1.3 Mpixel)
- Pixel size: 5.48 µm x 5.48 µm
- Sensor size: 6.75 mm x 5.61 mm
- Shutter technology: Global-Shutter
- Optical focus: Adjustable (manual)
- Working range: 200 mm to 2,500 mm depending on lens
- Supply voltage: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- Connection types: M12 17-pin male, M8 4-pin female, M12 8-pin female, M12 4-pin female connectors
- Interfaces: Ethernet TCP/IP, PROFINET, EtherNet/IP
- Data transmission rate: 10/100/1,000 Mbit/s
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- MTBF: 100,000 hours
- Dimensions (H x L x W): 55mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Programmable and configurable via SensorApp Nova Inspector
- Includes Intelligent Inspection License with unlimited time period
- Adjustable manual optical focus with C-mount lens option
- Global-Shutter shutter technology
- High sensor resolution of 1,232 px x 1,024 px (1.3 Mpixel)
- Multiple industrial Ethernet interfaces including PROFINET and EtherNet/IP
- Robust aluminum die cast housing with IP65 rating
- Supports external illumination and multiple configurable I/O
- Web server and configuration software support including SICK AppStudio
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and network protocols to ensure optimal performance and safety.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns
- Classifying and sorting
- 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient 24 V DC operation reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Supports external illumination to optimize energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK V2D8301P-1MCXXXAF0SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial automation, quality control, and inspection applications.
