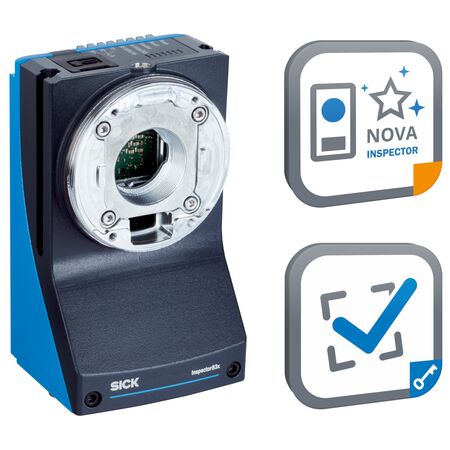

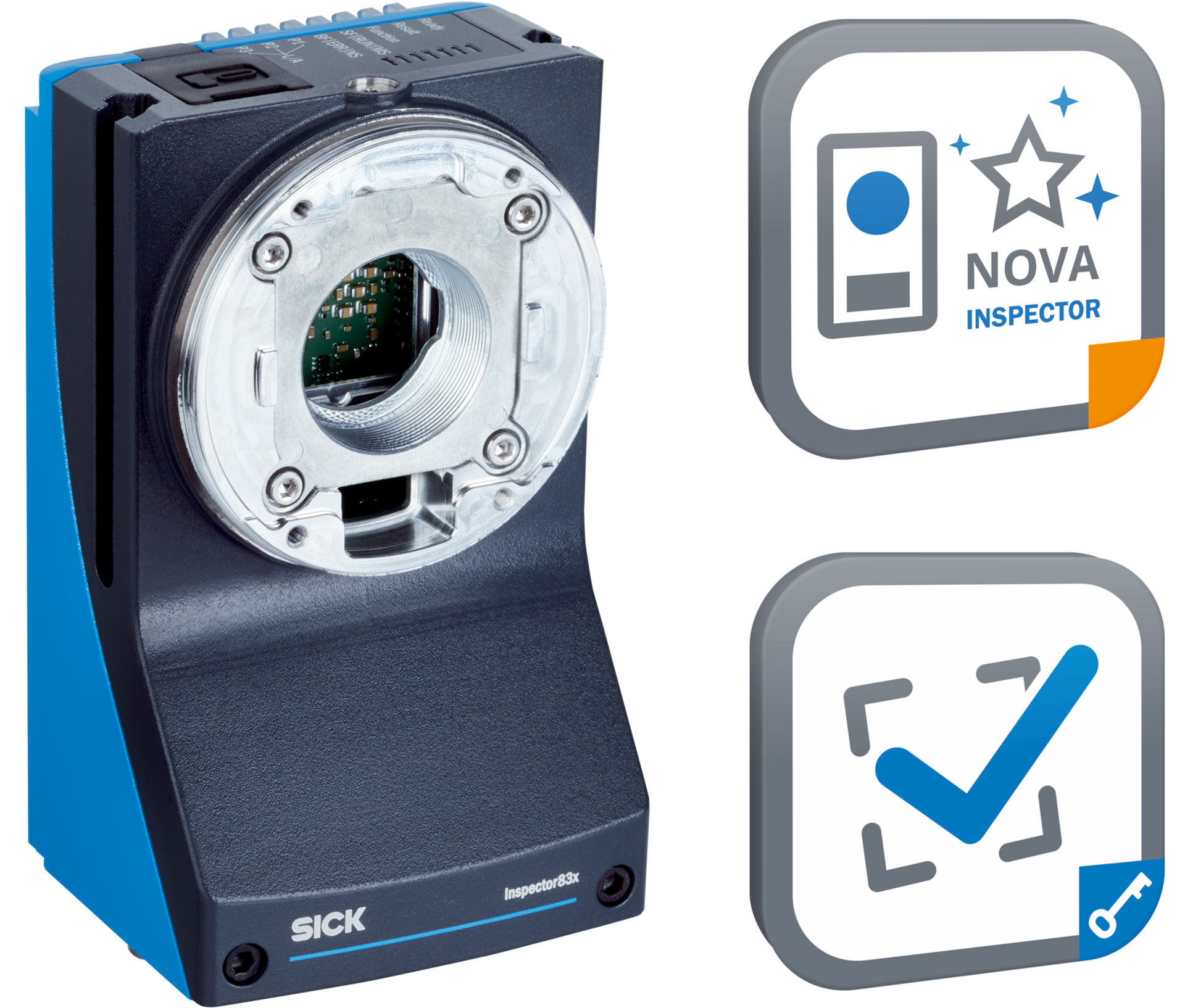

2D Snapshot Sensor | CMOS Monochrome | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for precision quality inspection in industrial settings, featuring a high-resolution CMOS monochrome image sensor and global-shutter technology. With an adjustable optical focus and robust IP65-rated aluminum housing, this sensor is perfect for applications like dimension measurement, pattern recognition, and 2D code identification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Shutter technology: Global-Shutter
- Optical focus: Adjustable (manual)
- Working range: 200 mm to 2,500 mm depending on lens
- Sensor resolution: 1,232 px x 1,024 px (1.3 Mpixel)
- Pixel size: 5.48 µm x 5.48 µm
- Sensor size: 6.75 mm x 5.61 mm
- Scan/frame rate: 60 Hz
- Supply voltage: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- MTBF: 100,000 hours
- Connection types: M12 17-pin male (Power, I/O), M8 4-pin female (external illumination), M12 8-pin female (Gigabit Ethernet), M12 4-pin female (fieldbus Ethernet)
- Communication protocols: Ethernet TCP/IP, PROFINET Dual Port, EtherNet/IP™ Dual Port
- Operator interfaces: Web server
- Configuration software: Web GUI, SICK AppManager, SICK AppStudio
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- Output current: ≤ 50 mA
- Maximum encoder frequency: 50 kHz
- Optical indicators: 8 status LEDs
- Dimensions (H x L x W): 55mm x 108mm x 63mm
- Weight: 0.545 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Programmable and configurable via SensorApp Nova Inspector
- Adjustable manual optical focus
- Global-Shutter shutter technology
- Supports multiple communication protocols including Ethernet, PROFINET, and EtherNet/IP™
- Robust aluminum die cast housing with IP65 rating
- High sensor resolution of 1,232 px x 1,024 px (1.3 Mpixel)
- 60 Hz scan/frame rate
- Multiple connector types for power, I/O, external illumination, and Ethernet
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and network protocols to ensure optimal performance and safety.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Sorting and 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum housing extends product lifespan reducing waste
- Energy-efficient operation with 21 W power consumption
- Supports remote configuration reducing need for physical interventions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8301P-1MCXXXAF0SXXXX 2D snapshot sensor is available for immediate purchase, ideal for industrial quality inspection and automation applications.
