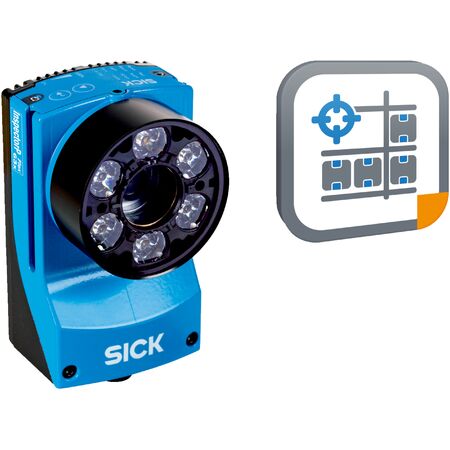

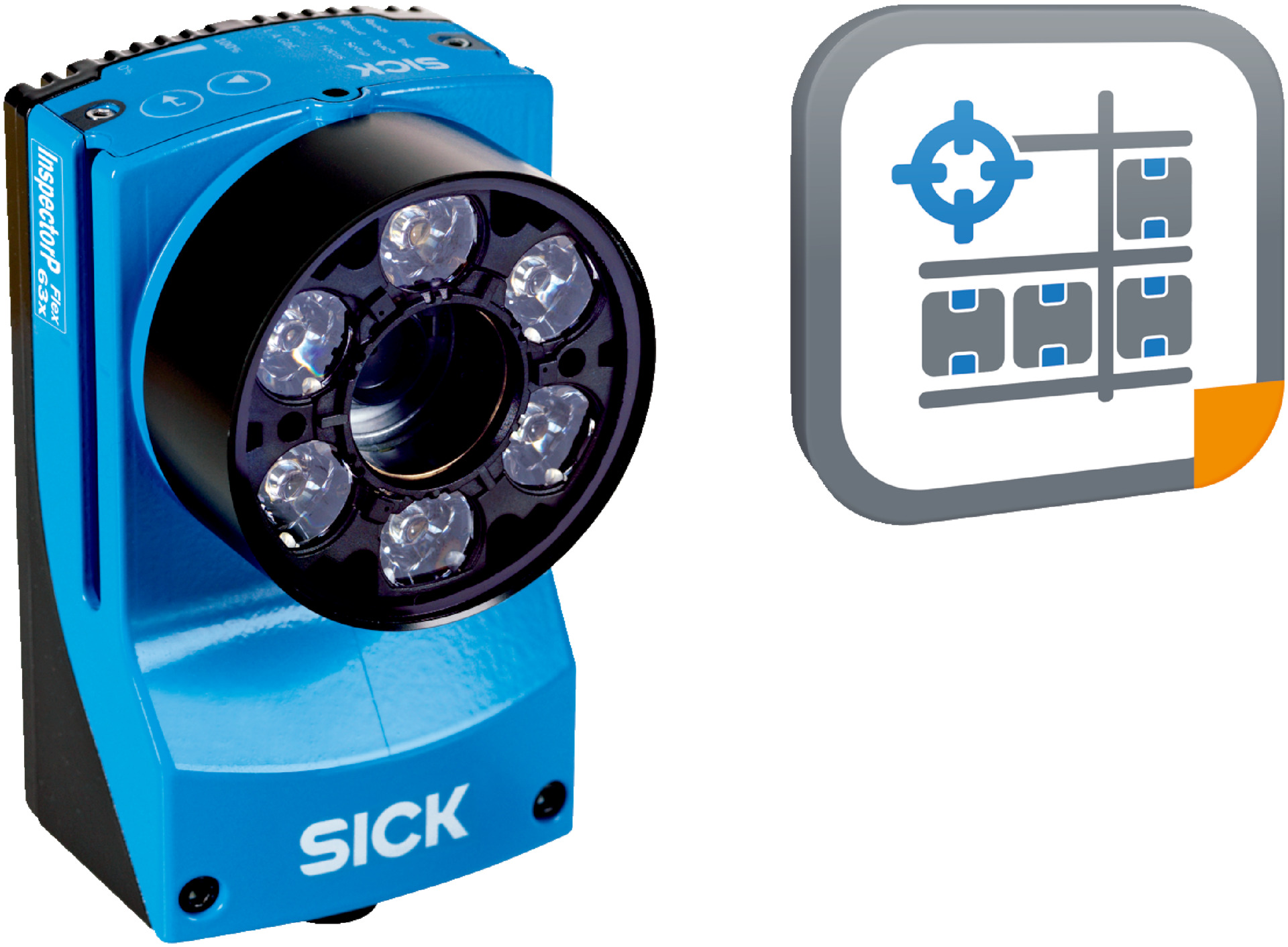

2D Snapshot Sensor | CMOS Monochrome | Global-Shutter Technology | IP67 Rated | by SICK
The 2D Snapshot Sensor is designed for precise object localization in industrial automation, featuring advanced CMOS monochrome technology and global-shutter for clear image capture. With a working range of 200 mm to 1,950 mm and integrated white LED illumination, it’s perfect for quality control and inspection tasks, ensuring high repeatability and robust performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Shutter technology: Global-Shutter
- Optical focus: Fixed focus
- Working range: 200 mm to 1,950 mm
- Illumination: Integrated white LED, 6000 K ± 500 K
- Alignment aid: Red laser 630 nm to 680 nm, Laser class 1
- Lens: S-mount, Optical format 1/1.8", Focal length 17.5 mm
- Connection types: M12 17-pin male, M8 4-pin female (USB, external illumination), M12 8-pin socket (Gigabit Ethernet)
- Supply voltage: 12 V DC to 24 V DC ± 20%
- Power consumption: Typical 10 W ± 20%
- Enclosure rating: IP67
- Protection class: III
- Housing material: Aluminum die cast
- Window material: PMMA
- Sensor resolution: 1280 px x 1024 px (1.3 Mpixel)
- Repeatability: 0.05 mm to 0.1 mm typical
- Digital outputs: 4 outputs, 24 V, ≤ 100 mA
- Indicators: 11 LEDs, acoustic beeper
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 59mm x 108mm x 63mm
- Weight: 0.45 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Global-Shutter shutter technology for clear image capture
- Fixed optical focus with working range from 200 mm to 1,950 mm
- Integrated white LED illumination at 6000 K
- Red laser alignment aid (Laser class 1 compliant)
- High sensor resolution of 1280 px x 1024 px (1.3 Mpixel)
- Repeatability between 0.05 mm and 0.1 mm
- Multiple interfaces including Ethernet (TCP/IP), PROFINET, USB
- Web interface and PLC interface for configuration
- Data logging via microSD and external FTP
- Robust aluminum die cast housing with IP67 rating
- Operating temperature range 0 °C to +50 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Localizing, navigating and guiding in industrial automation
- 2D position determination for precise object localization
- Quality control and inspection tasks involving drill holes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable IP67 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D631P-2MWSEB8S50 2D Snapshot Sensor is available for immediate purchase, ideal for industrial automation and precise positioning applications.
