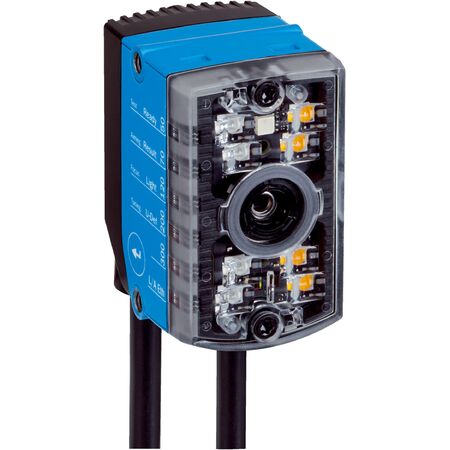

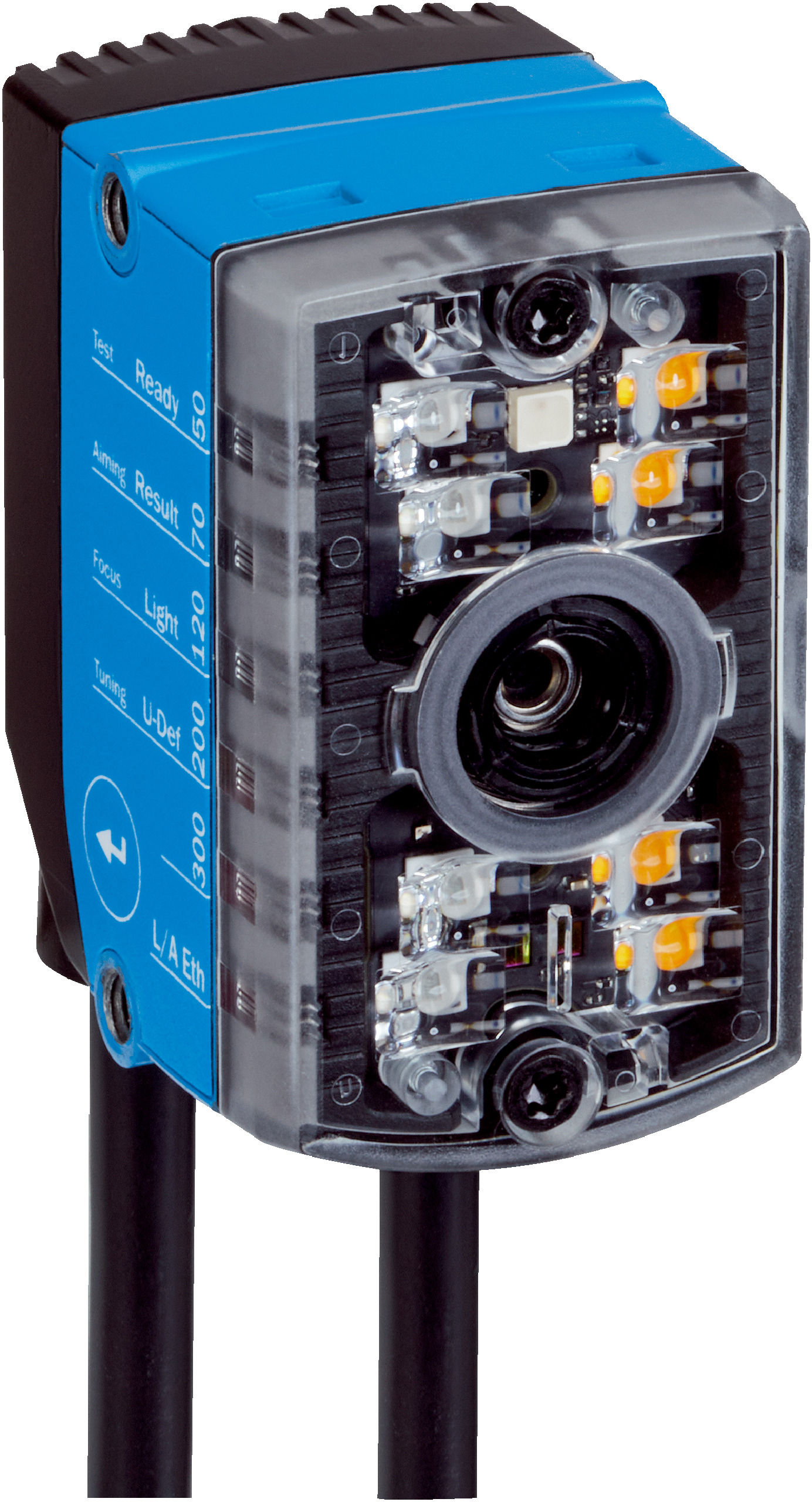

2D Snapshot Sensor | CMOS Monochrome | Integrated Infrared LED | Global-Shutter Technology | by SICK
The 2D Snapshot Sensor V2D611P-MLIBI5 features advanced CMOS monochrome imaging and integrated infrared LED illumination, making it perfect for industrial quality inspection and object detection. With a working range of 50 mm to 300 mm and multiple communication interfaces, this sensor is designed for high-performance applications, ensuring accurate measurement and identification of 2D codes and patterns.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.166 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated infrared LED illumination (850 nm) with visible green and red LED aids
- Global-Shutter shutter technology
- Teach auto focus with liquid lens
- Working range 50 mm to 300 mm with internal illumination, extendable with external illumination
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, and RS-232
- IP65 rated zinc diecast housing with PMMA window
- Low power consumption (typ. 3.5 W)
- High sensor resolution 1280 px x 960 px (1.2 Mpixel) with 40 Hz frame rate
- Complies with laser class 1 and LED risk group 0 safety standards
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration and integration with existing systems.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- Determining 2D position
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable zinc diecast housing enhances product longevity
- Integrated illumination reduces need for external lighting components
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D611P-MLIBI5 sensor is available for immediate purchase, ideal for industrial quality inspection, object detection, and measurement applications.
