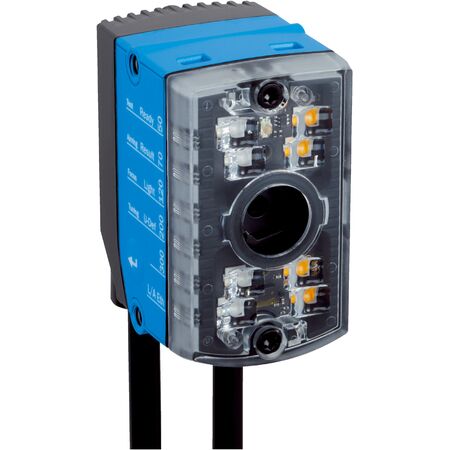

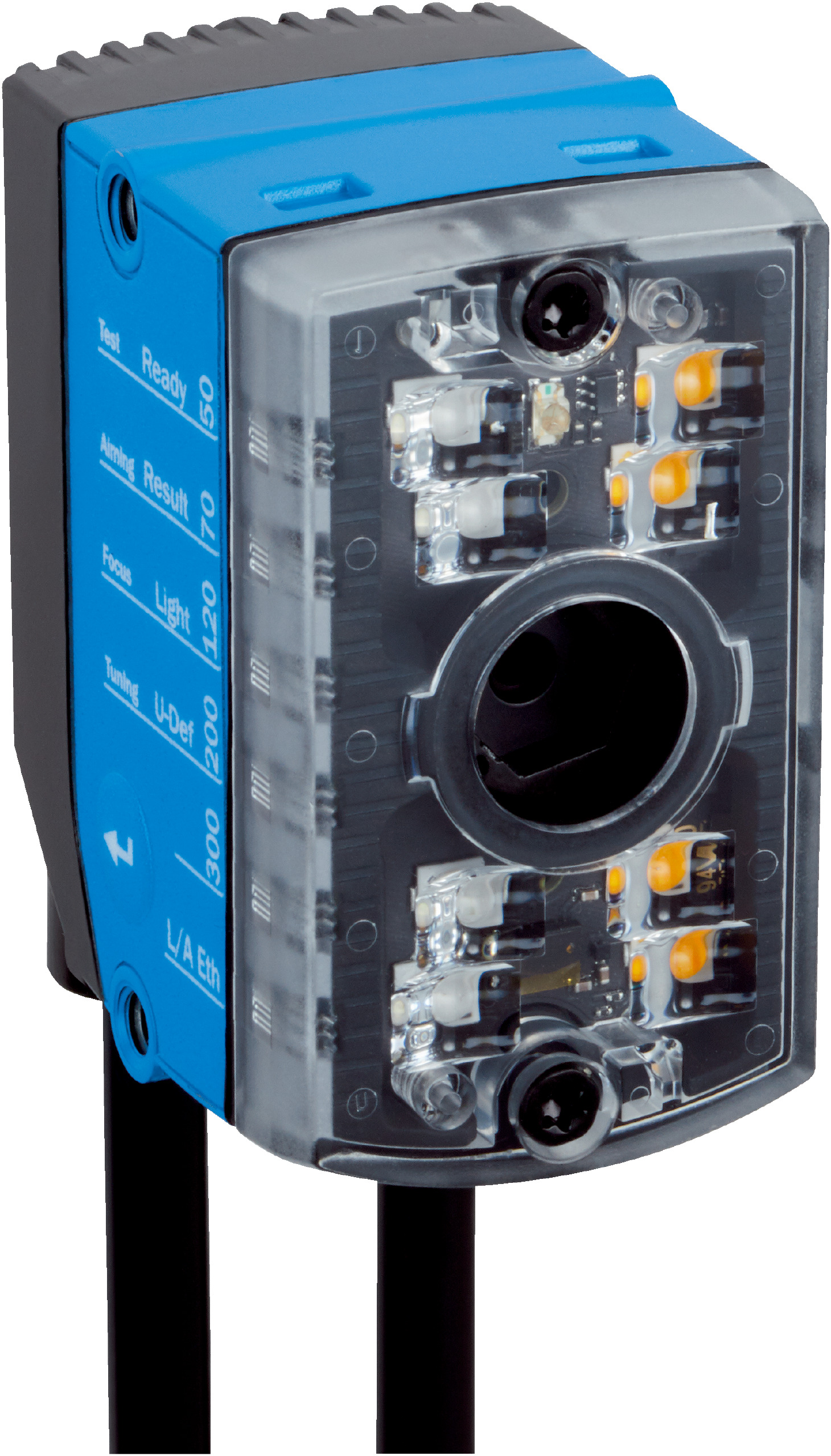

2D Snapshot Sensor | Global-Shutter CMOS | Integrated LED Illumination | IP54 Rated | by SICK
The 2D Snapshot Sensor is designed for precision quality inspection in industrial applications, featuring global-shutter CMOS technology and integrated amber and blue LED illumination. With a working range of 50 mm to 300 mm, it excels in detecting objects, measuring dimensions, and identifying 2D codes. Built for durability with an IP54 rating, this sensor is perfect for automation and inspection tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome with global shutter
- Sensor resolution: 1280 px x 960 px (1.2 Mpixel)
- Working range: 50 mm to 300 mm with internal illumination
- Illumination: Integrated amber (617 nm) and blue (470 nm) LEDs
- Connection type: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector
- Supply voltage: 12 V DC to 24 V DC ±15%
- Power consumption: Typical 3.5 W
- Enclosure rating: IP54
- Housing material: Zinc diecast
- Window material: PMMA
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Communication interfaces: Ethernet (TCP/IP, PROFINET, EtherNet/IP), RS-232 serial
- Data transmission rate: 10/100 MBit/s Ethernet, 300 Baud to 115.2 kBaud serial
- Control elements: 1 pushbutton
- Optical indicators: 9 LEDs for status and alignment
- MTBF: 75,000 hours
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- 2D snapshot technology with programmable and configurable options
- Integrated amber and blue LED illumination with adjustable optical focus
- Global-Shutter CMOS monochrome image sensor with 1,280 px x 960 px resolution
- Working range from 50 mm to 300 mm with internal illumination
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, and RS-232
- Robust zinc diecast housing with IP54 protection rating
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade License
- 9 LEDs for status, alignment aids, and feedback spot
- Low power consumption at approximately 3.5 W
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with electrical standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns
- Classifying and sorting
- 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable zinc diecast housing extends product lifespan
- Complies with RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK V2D611P-MMSCE4 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and automation applications.
