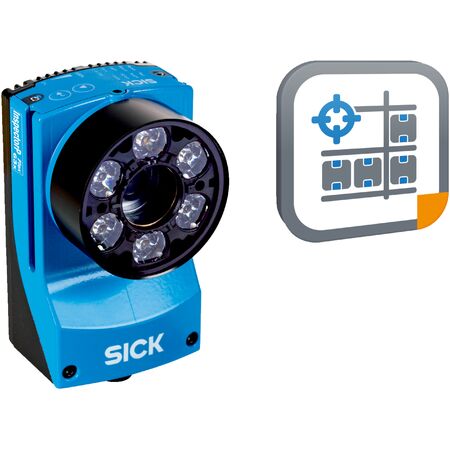

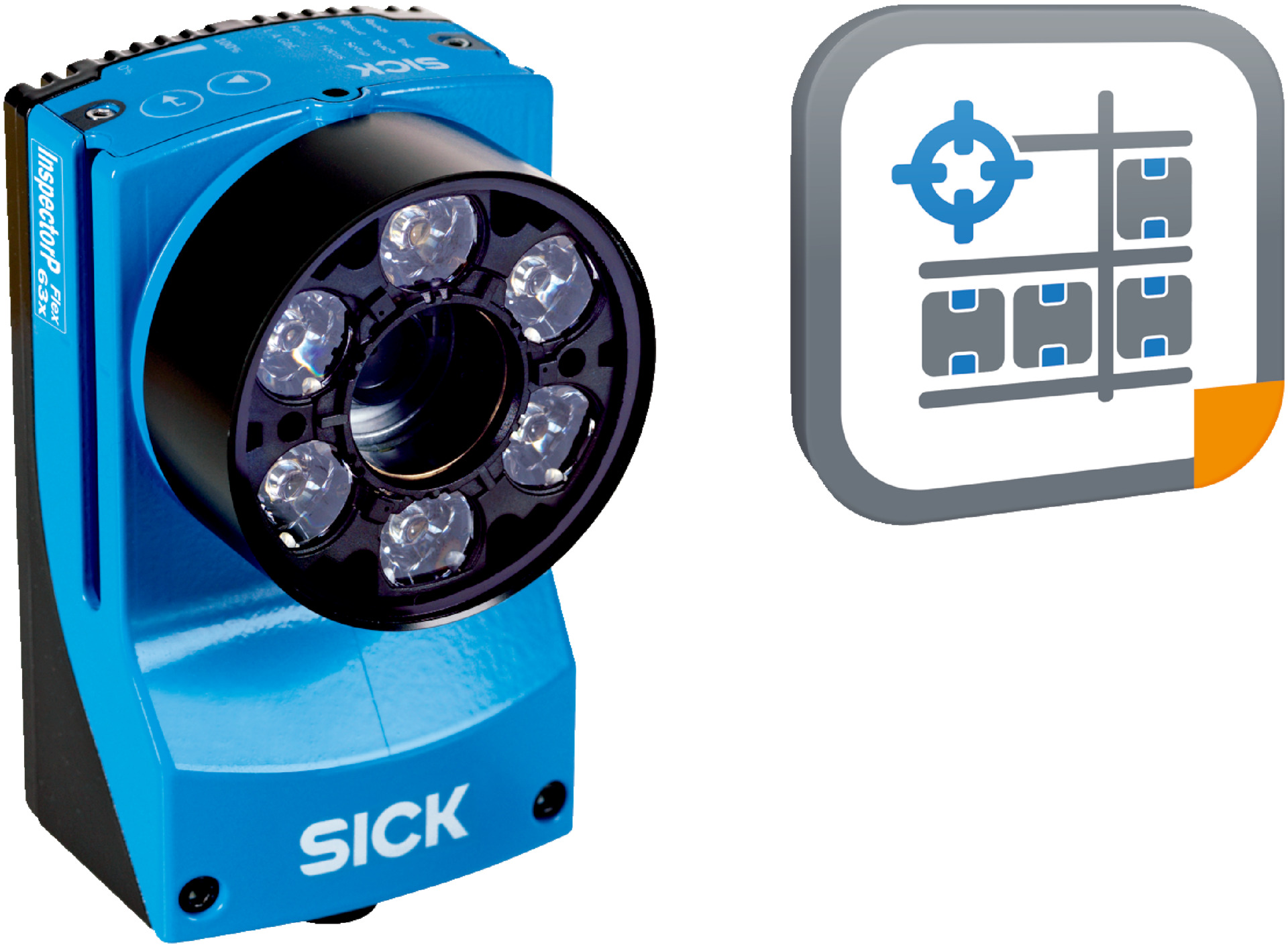

2D Snapshot Sensor V2D631P-2MISCB8S50 | CMOS Monochrome | Global-Shutter Technology | IP67 Rated | by SICK
The 2D Snapshot Sensor V2D631P-2MISCB8S50 features advanced 2D snapshot technology with a high-resolution CMOS monochrome image sensor. With a global-shutter design and integrated white LED illumination, it excels in industrial automation and quality control applications. Its robust IP67-rated housing ensures durability, making it ideal for precise 2D position determination and navigation tasks in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Shutter technology: Global-Shutter
- Optical focus: Fixed focus
- Working range: 100 mm to 350 mm or 150 mm to 700 mm
- Illumination: Integrated white LED, 6000 K ± 500 K
- Alignment aid: Red laser, 630 nm to 680 nm, Laser class 1
- Lens: S-mount, 1/1.8" optical format, 9.6 mm focal length
- Connection types: M12 17-pin male, M8 4-pin female USB (not used), M12 8-pin Gigabit Ethernet, M8 4-pin external illumination
- Supply voltage: 12 V DC to 24 V DC ± 20%
- Power consumption: Typical 10 W ± 20%
- Enclosure rating: IP67
- Protection class: III
- Housing material: Aluminum die cast
- Window material: PMMA
- Sensor resolution: 1280 px x 1024 px (1.3 Mpixel)
- Repeatability: 0.05 mm to 0.1 mm typical
- Digital outputs: 4 outputs, 24 V, ≤ 100 mA
- Data transmission rates: 10/100/1000 Mbit/s Ethernet, 10/100 Mbit/s PROFINET
- Operator interfaces: Web-Interface
- Configuration software: Web-Interface, PLC interface
- Data storage: microSD memory card, external FTP
- Indicators: 11 LEDs, acoustic beeper
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 59mm x 108mm x 63mm
- Weight: 0.45 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Global-Shutter shutter technology
- Fixed optical focus with working range 100 mm to 700 mm
- Integrated white LED illumination (6000 K ± 500 K)
- Red laser alignment aid (Laser class 1)
- High sensor resolution of 1280 px x 1024 px (1.3 Mpixel)
- Repeatability of 0.05 mm to 0.1 mm typical
- Multiple interfaces including Ethernet (TCP/IP), PROFINET, USB
- Robust aluminum die cast housing with IP67 rating
- Operating temperature range 0 °C to +50 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and compliance with electrical and safety standards.
Applications
- Localizing, navigating and guiding
- 2D position determination
- Industrial automation and quality control
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable IP67 rated housing ensures long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK V2D631P-2MISCB8S50 2D Snapshot Sensor is available for immediate purchase. Ideal for industrial automation, navigation, and precise 2D position determination applications.
