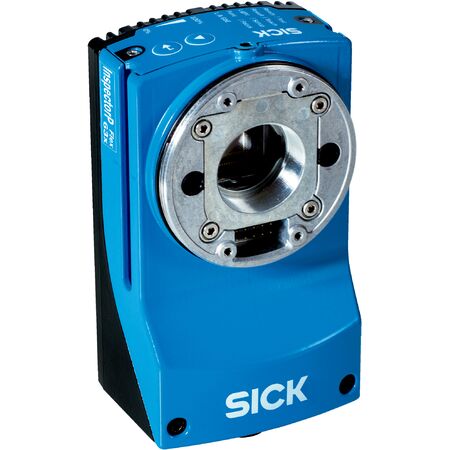

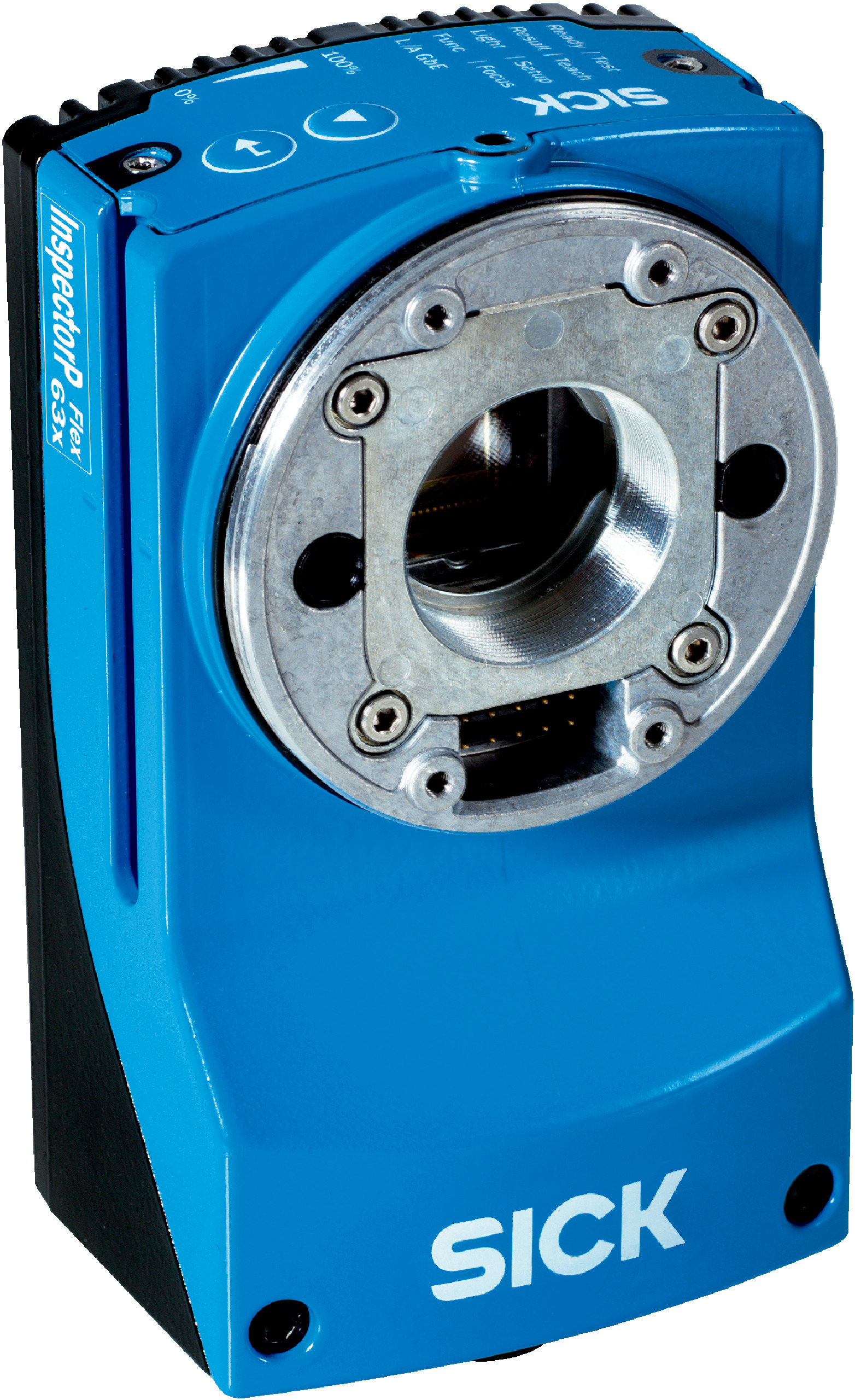

2D Snapshot Sensor V2D631P-2MXCXB0 | CMOS Monochrome | 1280 x 1024 Resolution | IP67 Rated | by SICK
The 2D Snapshot Sensor V2D631P-2MXCXB0 features advanced 2D snapshot technology with programmable capabilities, making it ideal for industrial applications such as object detection and quality inspection. With a high-resolution CMOS monochrome image sensor and adjustable optical focus, this sensor supports multiple illumination options and offers robust connectivity through various interfaces, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Programmable: Yes
- Image sensor: CMOS monochrome with global shutter
- Optical focus: Adjustable
- Illumination: Ordered separately; supports white, red, blue, infrared
- Laser class: Class 1 laser, compliant with IEC 60825-1:2014
- Spectral range: Approx. 400 nm to 900 nm
- Lens: C-mount, optical format 1/1.8" (ordered separately)
- Sensor resolution: 1280 px x 1024 px (1.3 Megapixel)
- Scan/frame rate: 50 Hz
- Connection types: M12 17-pin male, M8 4-pin female (USB and external illumination), M12 8-pin socket (Gigabit Ethernet)
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 10 W ±20%
- Enclosure rating: IP67
- Protection class: III
- Housing material: Aluminum die cast
- Window material: PMMA
- Interfaces: Serial (RS-232, RS-422), Ethernet (TCP/IP), PROFINET, EtherNet/IP, CAN
- Operator interfaces: Web server
- Configuration software: SICK AppStudio
- Data storage: microSD card and external FTP
- Inputs/outputs: 2 opto-decoupled inputs, 4 configurable inputs/outputs
- Output current: ≤ 100 mA
- Maximum encoder frequency: 1 kHz
- Control elements: 2 buttons
- Optical indicators: 11 LEDs including status displays and feedback spot
- Acoustic indicators: Beeper
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 46mm x 108mm x 63mm
- Weight: 0.43 kg
Key Features
- 2D snapshot technology with programmable features
- Uses CMOS monochrome image sensor with global shutter
- Adjustable optical focus with C-mount lens option
- Supports multiple illumination colors: white, red, blue, infrared (ordered separately)
- Laser alignment aid (Class 1 laser, compliant with IEC 60825-1:2014)
- High sensor resolution of 1280 x 1024 pixels (1.3 Megapixels)
- Scan/frame rate of 50 Hz
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, CAN, RS-232, RS-422
- Robust IP67 rated aluminum die-cast housing
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade License
- Web server operator interface and SICK AppStudio configuration software
- Data logging via microSD and external FTP
- Multiple optical and acoustic indicators for status feedback
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- 2D position determination
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing ensures long product life and reduces waste
- Energy-efficient operation with typical power consumption of 10 W
- Supports remote configuration and diagnostics reducing onsite visits
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK V2D631P-2MXCXB0 2D snapshot sensor is available for immediate purchase. Ideal for industrial quality inspection, object detection, and measurement applications.
