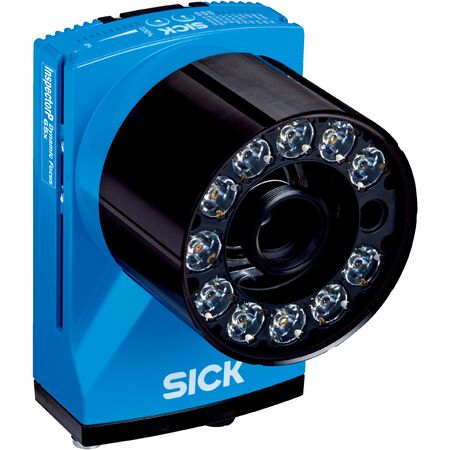

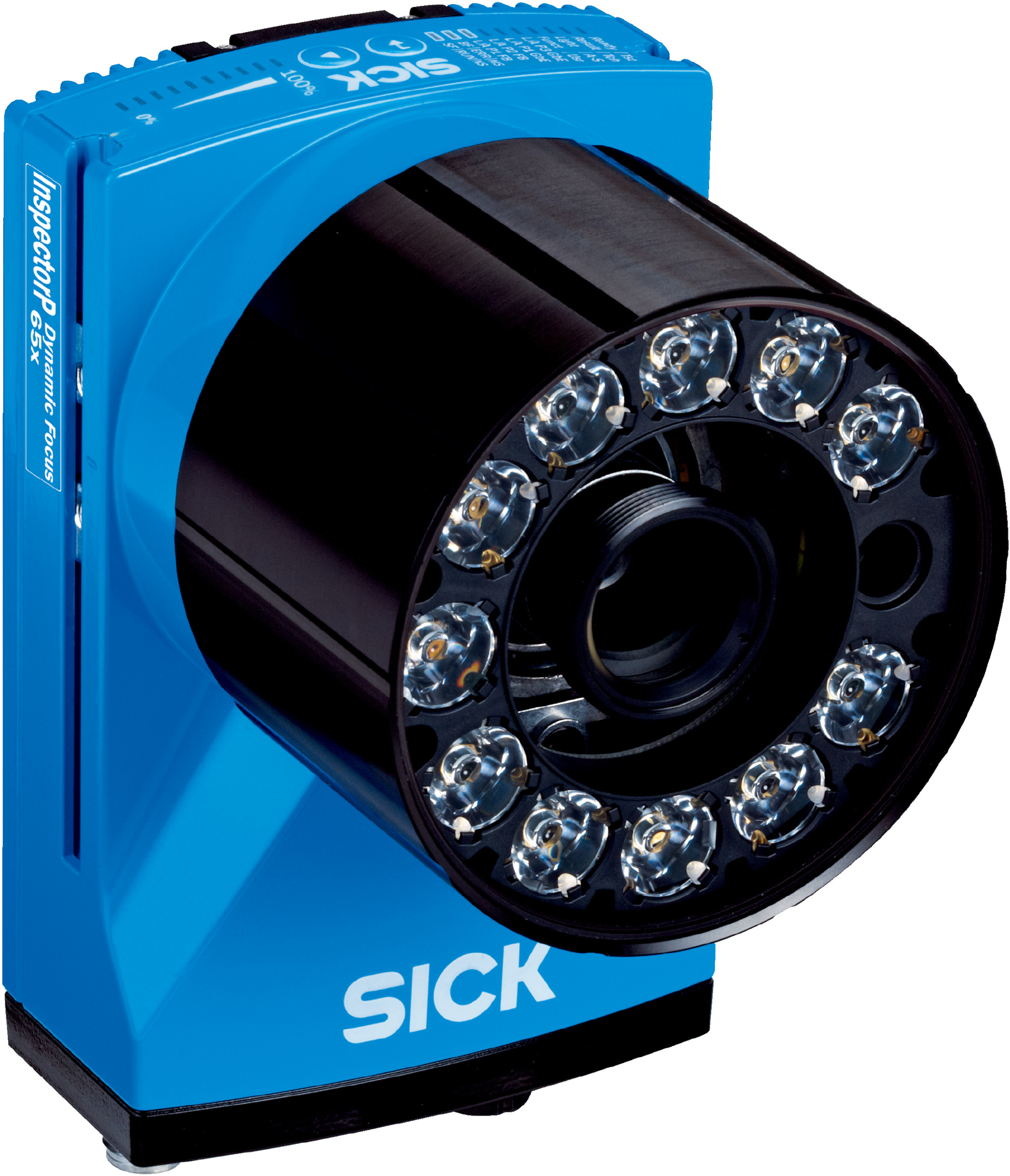

2D Snapshot Sensor V2D654P-2MEWHA6 | CMOS Monochrome | Global Shutter | IP65 Rated | by SICK
The 2D Snapshot Sensor V2D654P-2MEWHA6 features advanced 2D snapshot technology with a high-resolution CMOS monochrome image sensor, making it ideal for industrial quality inspection and automated vision applications. With integrated white and blue LED illumination, global shutter technology, and robust IP65-rated aluminum housing, this sensor ensures reliable performance in various environments, supporting tasks like object detection, dimension measurement, and 2D code identification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Shutter technology: Global-Shutter
- Optical focus: Dynamic focus control
- Illumination: Integrated white and blue LEDs
- Feedback spot: Green laser (525 nm ± 15 nm)
- Alignment aid: Red laser (630 nm to 680 nm)
- Laser class: Class 1 compliant with IEC 60825-1 Ed.3
- LED class: Risk group 1 (white) and risk group 2 (blue) according to IEC 62471-1
- Spectral range: Approx. 400 nm to 900 nm
- Optical format: 1 inch lens
- Sensor resolution: 2048 x 2048 pixels (4.2 Megapixels)
- Scan/frame rate: 40 Hz
- Connection types: M12 17-pin male, M8 4-pin female (USB not used), M12 8-pin socket (Gigabit Ethernet)
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Enclosure rating: IP65
- Protection class: III
- Housing material: Aluminum die cast
- Window material: Glass
- Interfaces: Serial (RS-232, RS-422), Ethernet (TCP/IP), CAN, EtherNet/IP, PROFINET
- Operator interfaces: Web server
- Configuration software: SICK AppStudio
- Data storage: microSD card and external FTP
- Inputs/outputs: 2 opto-decoupled inputs, 4 configurable inputs/outputs
- Output current: ≤ 100 mA
- Maximum encoder frequency: 1 kHz
- Control elements: 2 buttons
- Optical indicators: 21 LEDs
- Acoustic indicators: Beeper
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Shock and vibration tested to EN 60068-2-27 and EN 60068-2-6
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.96 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Programmable with SensorApp Nova Inspector
- Integrated white and blue LED illumination
- Laser feedback spot and alignment aid with visible green and red lasers
- Global shutter with dynamic focus control
- High sensor resolution of 2048 x 2048 pixels (4.2 Megapixels)
- Scan/frame rate of 40 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple interface options including Ethernet, PROFINET, CAN, RS-232/422
- Data logging via microSD and external FTP
- Comprehensive optical and acoustic indicators
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial vision sensor setup and electrical safety standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- Determining 2D position
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Integrated LED illumination reduces energy consumption compared to external lighting
- Durable aluminum housing extends product lifespan reducing waste
- Supports efficient quality inspection reducing material waste in production
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK V2D654P-2MEWHA6 2D snapshot sensor is available for immediate purchase, ideal for industrial quality inspection and automated vision applications.
