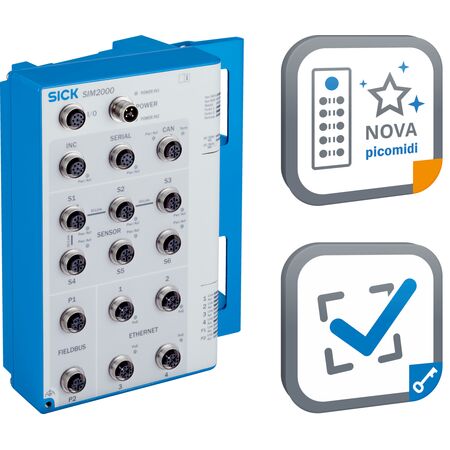

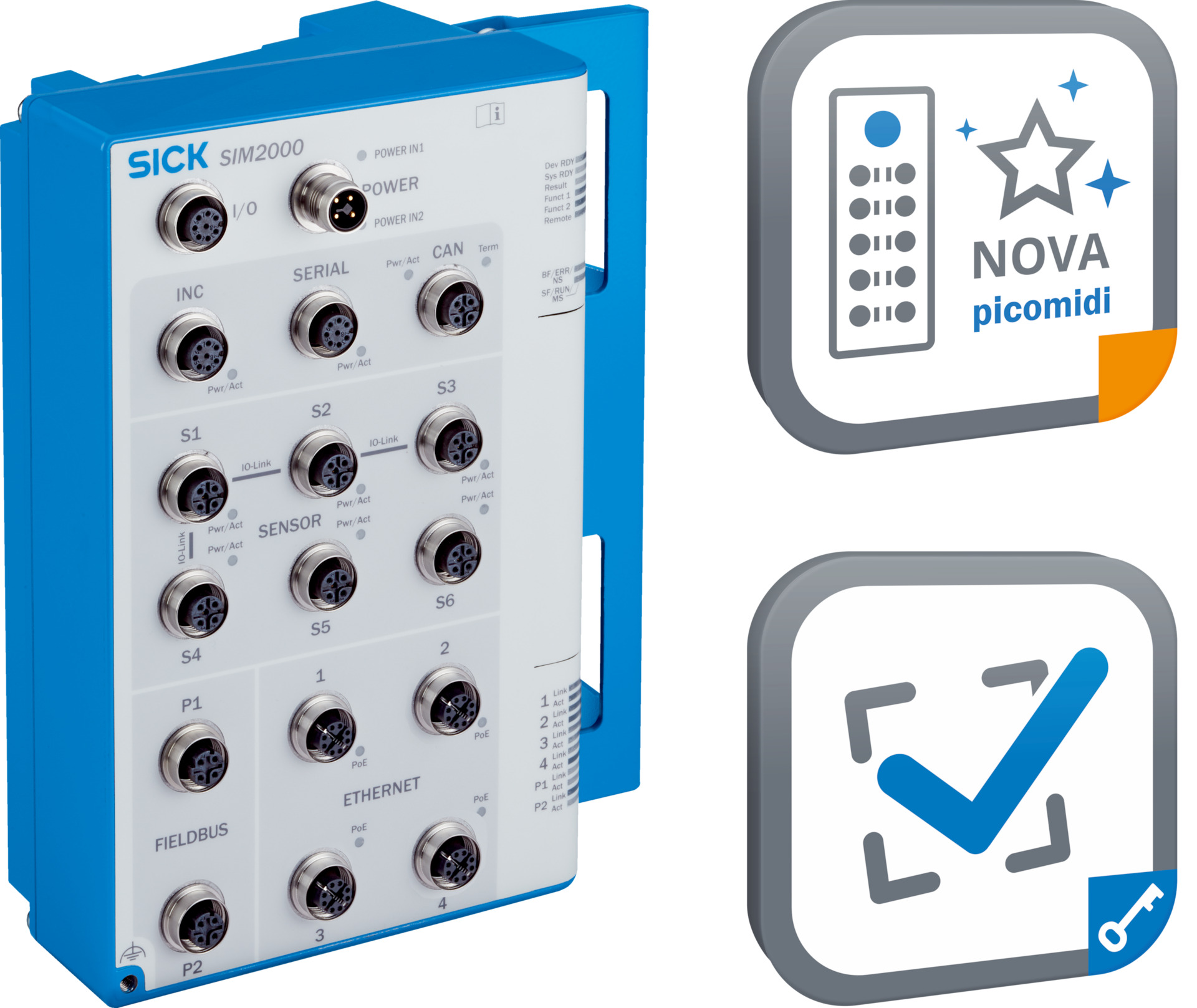

2D Snapshot Vision Sensor SIM2000-2AX4G10 | Configurable & Programmable | Quality Inspection License | by SICK
The 2D Snapshot Vision Sensor SIM2000-2AX4G10 is designed for precise image capture in industrial automation and quality inspection applications. With configurable and programmable features, it supports multiple connection options including Ethernet and USB, making it ideal for machine vision tasks. This sensor includes a Quality Inspection License with no time limit, ensuring reliable performance for manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Product category: Configurable, programmable
- Supported products: picoCam2, midiCam2
- License included: Quality Inspection License without time limit
- Connections: Multiple M12 connectors (8-pin, 4-pin, 5-pin), Micro-B USB
- Power consumption: Typical 45 W
- Power output: 140 W total across all connections
- Output current: SENSOR S1-S4 ≤ 1 A, SENSOR S5-S6 ≤ 2.5 A, CAN ≤ 3.2 A, SERIAL ≤ 1 A, INC ≤ 0.5 A, I/O ≤ 500 mA
- Electrical safety: EN 61010
- Interfaces: Ethernet (4 ports) with TCP/IP, FTP, OPC UA, MQTT; PROFINET (2 ports); EtherNet/IP (2 ports)
- Data transmission rate: 10/100/1,000/2,500 Mbit/s
- EMC compliance: IEC 61000-6-2:2016 / EN IEC 61000-6-2:2019 / IEC 61000-6-3:2020
- Documentation: Operating instructions included
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 2 kg
Key Features
- 2D snapshot technology for precise image capture
- Configurable and programmable with SICK Nova Tool plug-in
- Supports multiple languages including English, German, French, Italian, Spanish, Japanese, Korean, Chinese
- Includes Quality Inspection License with no time limit
- Multiple connection options including Ethernet with PoE, USB, Fieldbus, CAN, SERIAL, and SENSOR ports
- Power consumption typically 45 W with total power output of 140 W
- Supports GigE machine vision/GenICAM and dual port Ethernet-based fieldbus
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with electrical safety standards.
Applications
- Industrial automation and quality inspection
- Machine vision for manufacturing processes
- Configurable programmable vision tasks with picoCam2 and midiCam2
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports efficient quality inspection reducing waste and rework
- Energy-efficient operation with typical power consumption of 45 W
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK SIM2000-2AX4G10 Nova picomidi QI is available for immediate purchase, ideal for industrial automation and quality inspection applications.
