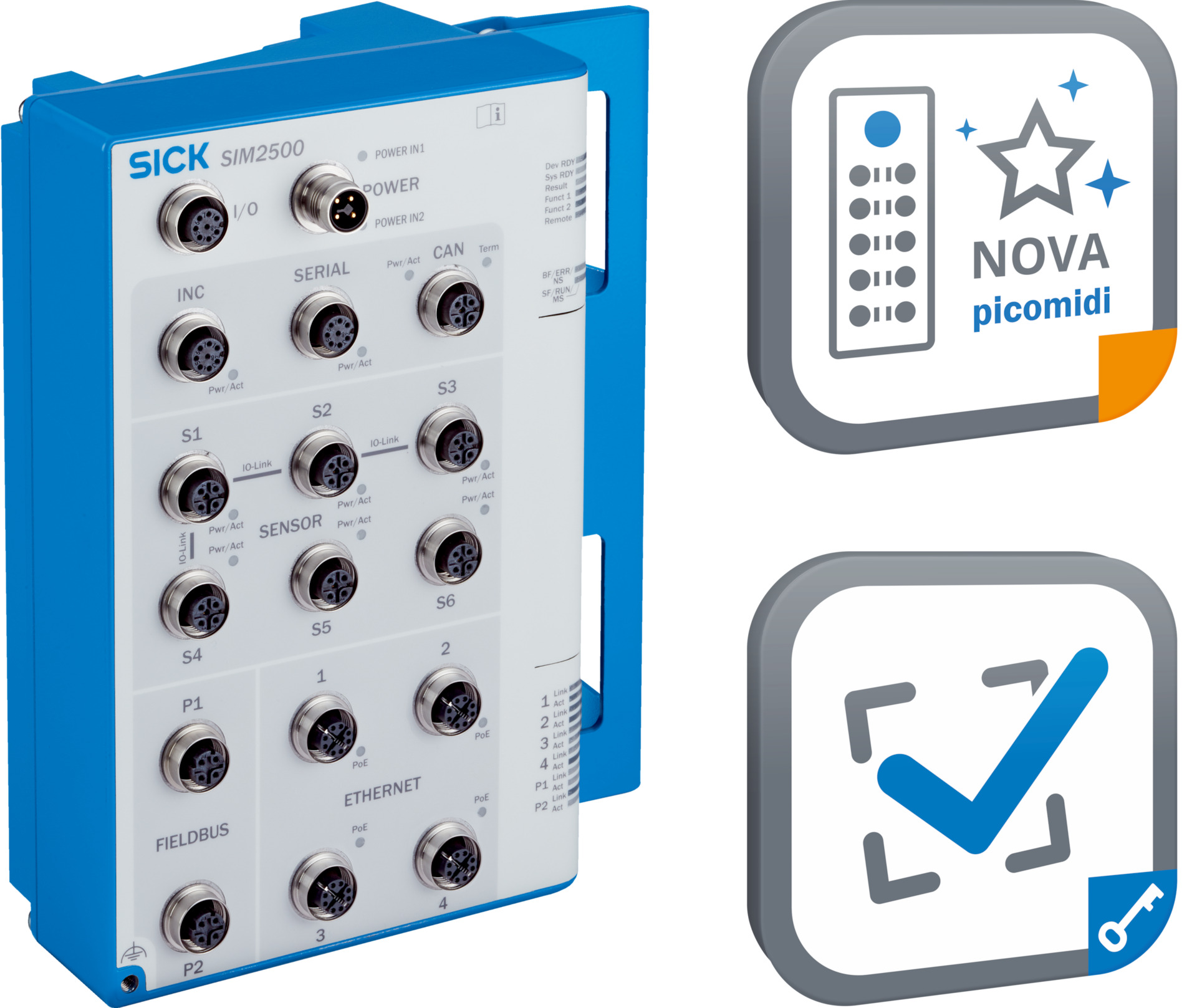

2D Snapshot Vision Sensor SIM2500-2AX1G10 | 8-Core ARM CPU | IP65 Rated | by SICK
The 2D Snapshot Vision Sensor SIM2500-2AX1G10 is designed for high-quality image capture in industrial automation. Featuring an 8-core ARM Cortex-A72 CPU and multiple connectivity options, it excels in quality inspection and process control. With an IP65 rated enclosure, this sensor is built for robust use in manufacturing environments, ensuring precise quality control and energy-efficient operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Processor: 8-core ARM Cortex-A72 CPU with NEON accelerator and FPGA co-processor
- Power supply: 24 V DC ± 10%
- Power consumption: Typically 45 W
- Power output: 140 W total across all connections
- Connectivity: 4x Ethernet with PoE (M12, 8-pin), USB Micro-B, CAN, SERIAL, Fieldbus ports
- Digital I/O: Configurable inputs/outputs with max frequency up to 30 kHz
- Enclosure rating: IP65
- Electrical safety: EN 61010
- Supported languages: English, German, French, Italian, Spanish, Japanese, Korean, Chinese
- Memory: Optional industry-grade microSD card up to 32 GB
- Operating temperature: 0 °C to +50 °C
- EMC compliance: IEC 61000-6-2:2016 / EN IEC 61000-6-2:2019 / IEC 61000-6-3:2020
- Shock load: IEC 60068-2-27:2008
- Dimensions (H x L x W): 196mm x 176mm x 83mm
- Weight: 2 kg
Key Features
- 2D snapshot technology for high-quality image capture
- Configurable and programmable with SICK Nova Tool plug-in
- Supports picoCam2 and midiCam2 products
- Includes Quality Inspection License with unlimited period
- 8-core ARM Cortex-A72 CPU with NEON accelerator and FPGA co-processor
- Multiple connectivity options including Ethernet with PoE, USB, CAN, SERIAL, and Fieldbus
- IP65 rated enclosure for robust industrial use
- Supports multiple languages including English, German, French, Italian, Spanish, Japanese, Korean, and Chinese
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards.
Applications
- Quality inspection in manufacturing
- Industrial automation and process control
- Machine vision for object detection and analysis
- Customizable image processing tasks in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise quality control reducing waste and rework
- Supports energy-efficient industrial automation processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

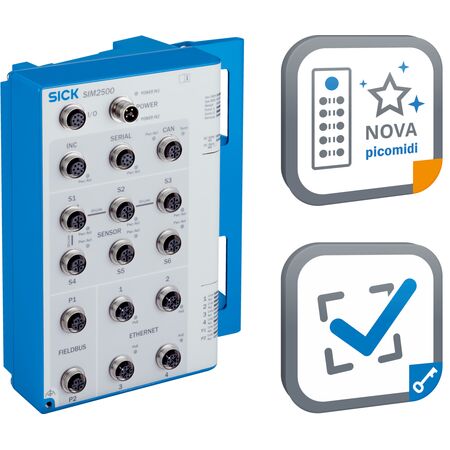

The SICK SIM2500-2AX1G10 Nova picomidi QI is available for immediate purchase, ideal for industrial quality inspection and automation applications.
