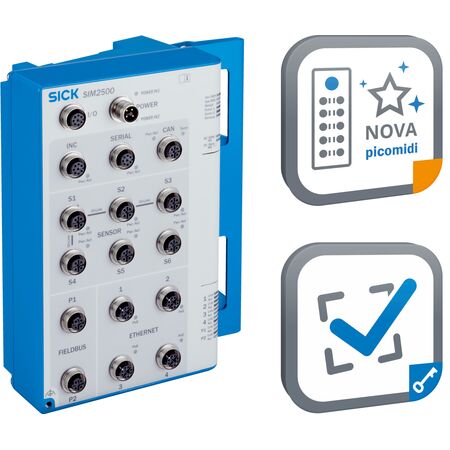

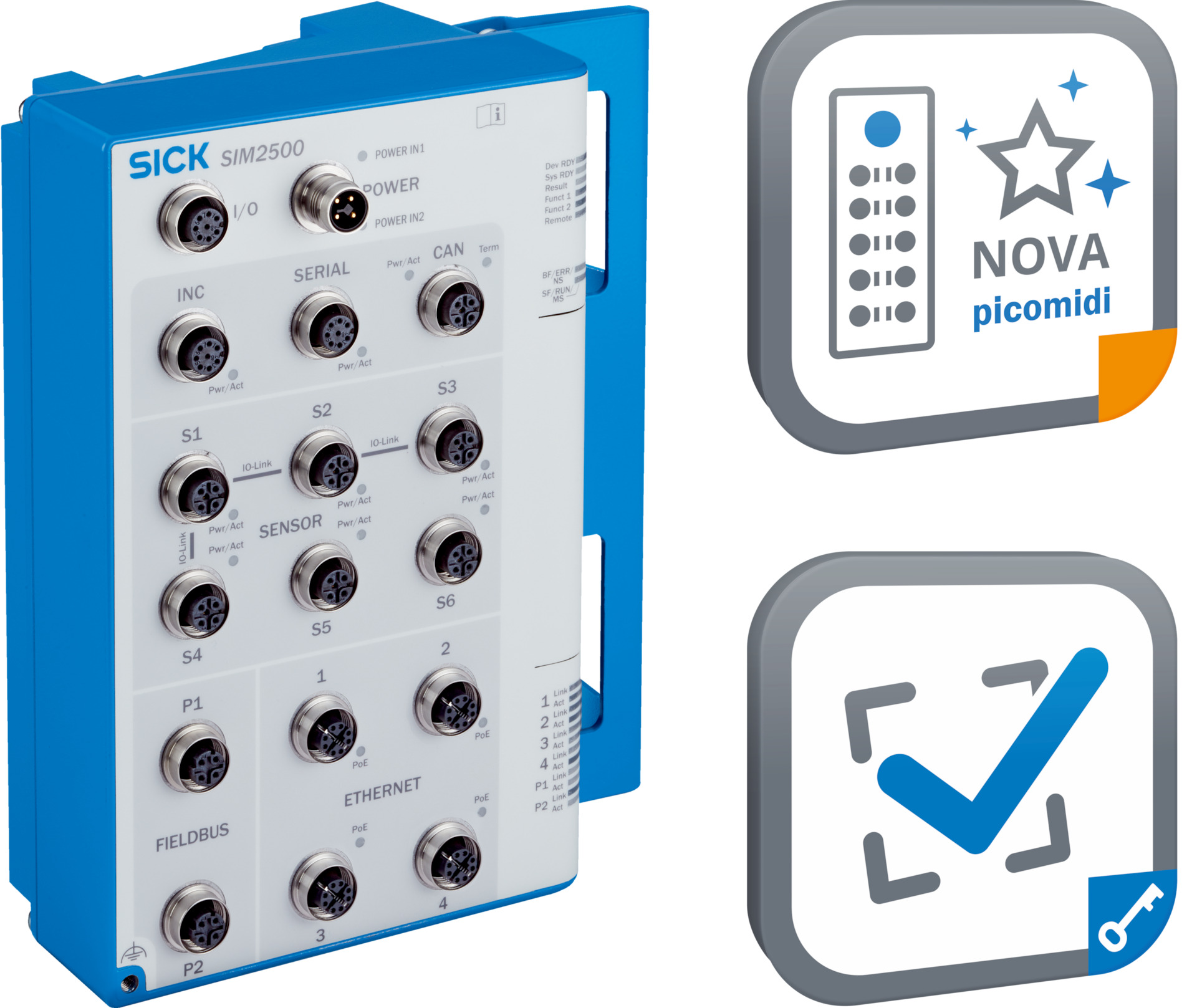

2D Snapshot Vision Sensor SIM2500-2AX3G10 | 8-Core ARM CPU | IP65 Enclosure | by SICK
The 2D Snapshot Vision Sensor SIM2500-2AX3G10 is engineered for precision in industrial automation and quality inspection. Featuring an 8-core ARM Cortex-A72 CPU and configurable image processing capabilities, it supports multiple connectivity options including Ethernet with PoE. With an IP65 enclosure rating, this sensor is built for robust performance in demanding environments, making it ideal for machine vision applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Processor: 8-core ARM Cortex-A72 CPU with NEON accelerator and FPGA co-processor
- Power supply: 24 V DC ± 10%
- Power consumption: Typical 45 W
- Output current: Various outputs up to 3.2 A depending on connection
- Connectivity: 4x Ethernet with PoE, USB Micro-B, CAN, Fieldbus, Serial, Digital I/O
- Memory: Optional industry-grade microSD card up to 32 GB
- Enclosure rating: IP65
- Electrical safety: EN 61010
- Supported languages: English, German, French, Italian, Spanish, Japanese, Korean, Chinese
- Data transmission rate: Up to 2,500 Mbit/s on Ethernet
- Dimensions (H x L x W): 196mm x 176mm x 83mm
- Weight: 2 kg
Key Features
- 2D snapshot technology for precise image capture
- Configurable and programmable with support for picoCam2 and midiCam2
- Includes Quality Inspection License with unlimited license period
- 8-core ARM Cortex-A72 CPU with NEON accelerator and FPGA co-processor for image processing
- Supports multiple languages including English, German, French, Italian, Spanish, Japanese, Korean, and Chinese
- Expansion options via SICK Nova Tool plug-in and development supported by SICK AppSpace and SICK AppStudio
- Multiple connectivity options including Ethernet with PoE, USB, CAN, Fieldbus, and serial interfaces
- Enclosure rated IP65 for robust industrial use
- Electrical safety compliant with EN 61010
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with electrical safety standards.
Applications
- Industrial automation and quality inspection
- Machine vision for manufacturing processes
- Configurable and programmable image processing tasks
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient design with low power consumption (typical 45 W)
- Supports digital and networked communication reducing need for additional hardware
- Durable IP65 rated housing reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK SIM2500-2AX3G10 Nova picomidi QI is available for immediate purchase, ideal for industrial automation and quality inspection applications.
