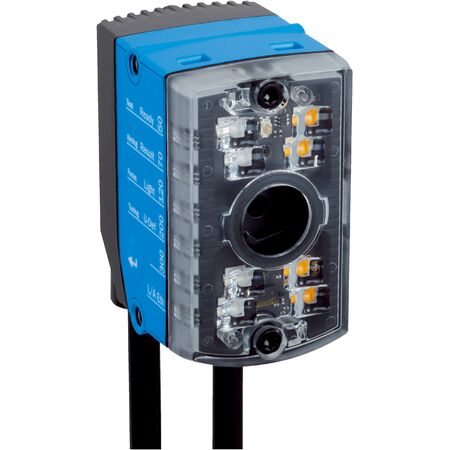

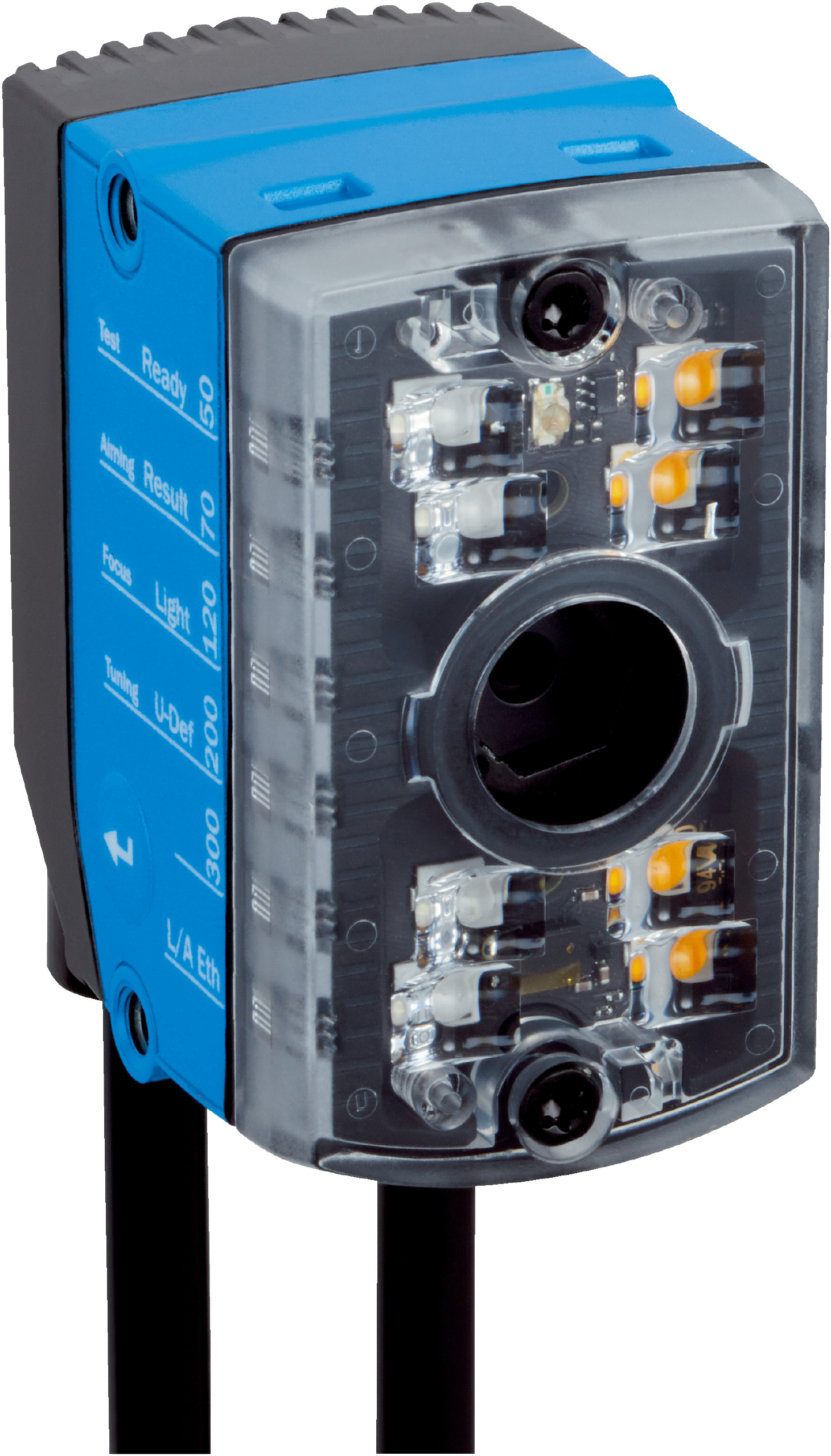

2D Vision Sensor V2D611P-MMIBI4 | 1.2 Mpixel Resolution | Global-Shutter Technology | Integrated Infrared LED | by SICK
The 2D Vision Sensor V2D611P-MMIBI4 features advanced 2D snapshot technology with a 1.2 Mpixel resolution and global-shutter capabilities, making it perfect for industrial automation and quality inspection. With integrated infrared LED illumination and an adjustable optical focus, it operates effectively within a working range of 50 mm to 300 mm. Ideal for detecting objects, measuring dimensions, and identifying 2D codes, this sensor is built for reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Sensor resolution: 1,280 px x 960 px (1.2 Mpixel)
- Shutter technology: Global-Shutter
- Optical focus: Adjustable manually
- Illumination: Integrated infrared LED (850 nm ± 15 nm)
- Working range: 50 mm to 300 mm (extendable with external illumination)
- Connection type: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector
- Supply voltage: 12 V DC to 24 V DC ± 15%
- Power consumption: Typically 3.5 W
- Enclosure rating: IP54
- Housing material: Zinc diecast
- Window material: PMMA
- Weight: 165 g
- Scan/frame rate: 40 Hz
- Interfaces: Ethernet (TCP/IP, PROFINET, EtherNet/IP™), RS-232 serial
- Inputs/outputs: 2 x input, 3 x configurable input/output, 1 x output
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- MTBF: 75,000 hours
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- 2D snapshot technology with programmable and configurable options
- Integrated infrared LED illumination (850 nm) with adjustable optical focus
- Global-Shutter CMOS monochrome image sensor with 1,280 px x 960 px resolution
- Working range from 50 mm to 300 mm with internal illumination
- Multiple interfaces including Ethernet, PROFINET, EtherNet/IP™, and RS-232 serial
- Robust zinc diecast housing with IP54 protection rating
- LED feedback spot and alignment aids for easy setup
- Supports Quality Inspection License with optional Intelligent Inspection Upgrade License
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- Determining 2D position
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption at approximately 3.5 W reduces energy usage
- Durable zinc diecast housing extends product lifespan, reducing waste
- Integrated LED illumination minimizes need for external lighting
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK V2D611P-MMIBI4 2D snapshot vision sensor is available for immediate purchase, ideal for industrial automation and quality inspection applications.
