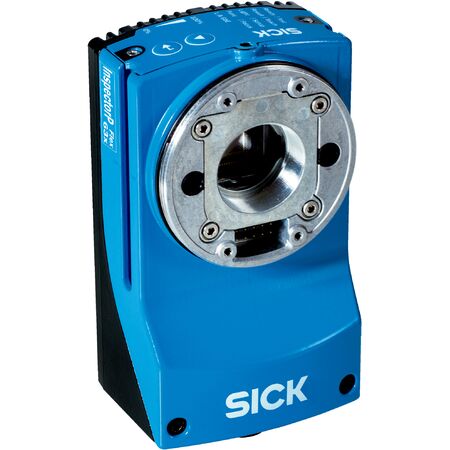

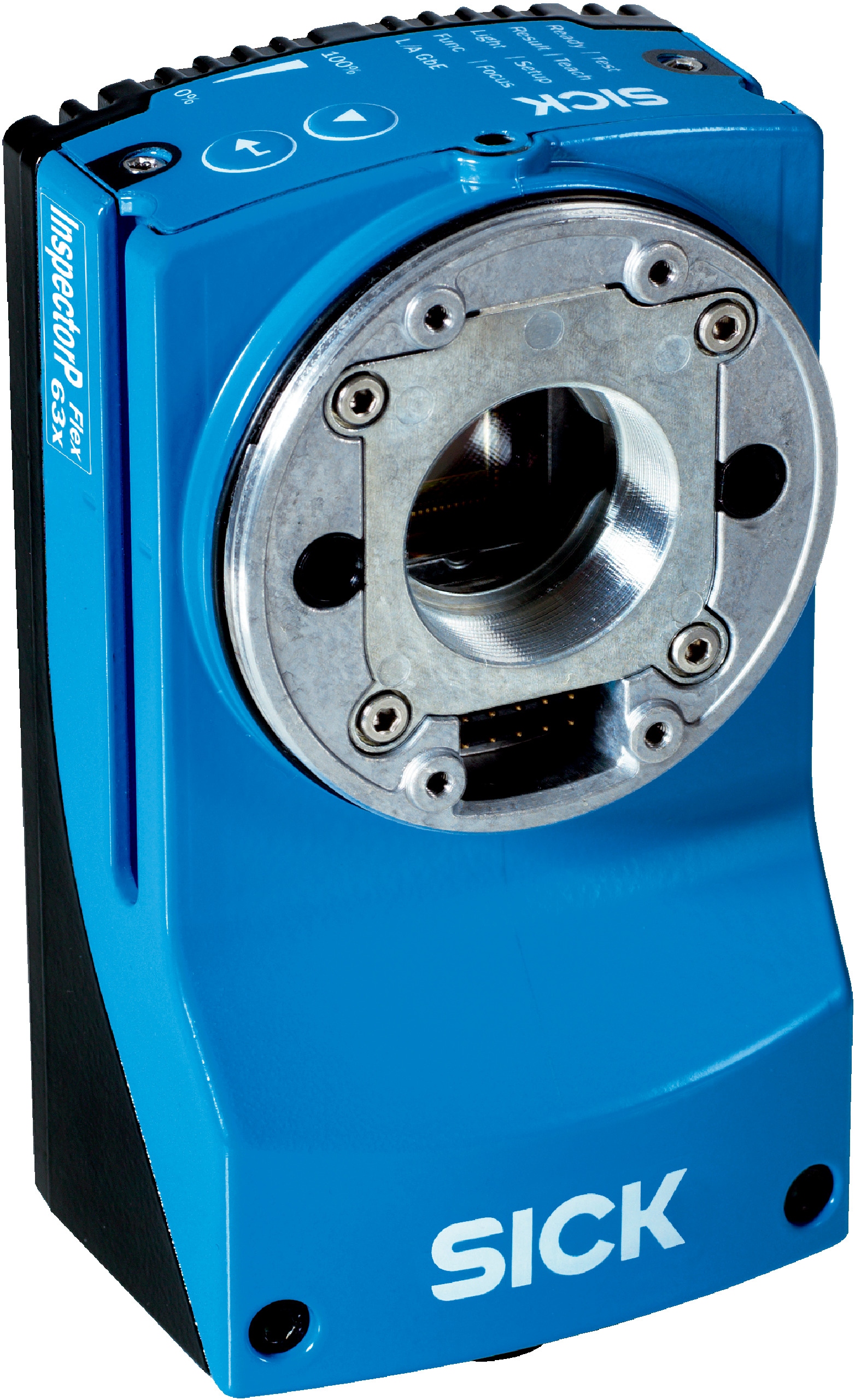

2D Vision Sensor | 1.9 Megapixel Resolution | 50 Hz Frame Rate | IP67 Rated | by SICK
The 2D Vision Sensor with 1.9 Megapixel resolution and 50 Hz frame rate is perfect for quality inspection in manufacturing. Built for industrial automation, it features robust IP67 rated aluminum housing and supports multiple interfaces including Ethernet and PROFINET. With programmable capabilities and global-shutter technology, this sensor ensures precise dimension and contour measurement, making it an essential tool for any production line.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1600 px x 1200 px (1.9 Megapixel)
- Scan/frame rate: 50 Hz
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typically 10 W ±20%
- Enclosure rating: IP67 (EN 60529)
- Protection class: III (EN 60950-1)
- Housing material: Aluminum die cast
- Window material: PMMA
- Connection types: M12 17-pin male, M8 4-pin female, M12 8-pin socket, M8 4-pin female for illumination
- Interfaces: Serial (RS-232, RS-422), Ethernet (TCP/IP, PROFINET, EtherNet/IP), CAN
- Optical format: 1/1.8 inch
- Lens: C-mount (ordered separately)
- Illumination: To be ordered separately
- Laser class: 1 (IEC 60825-1:2014 compliant)
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Dimensions (H x L x W): 46mm x 108mm x 63mm
- Weight: 0.43 kg
Key Features
- 2D snapshot technology with 1.9 Megapixel CMOS monochrome sensor
- Programmable with SensorApp Nova Inspector
- Global-Shutter shutter technology
- Adjustable optical focus with C-mount lens (ordered separately)
- Supports multiple illumination colors: White, Red, Blue, Infrared (accessories)
- Laser alignment aid (Class 1 laser, compliant with IEC 60825-1:2014)
- High scan/frame rate of 50 Hz
- Robust IP67 rated aluminum die cast housing
- Multiple industrial interfaces including Ethernet, PROFINET, CAN, EtherNet/IP
- Data logging via microSD and external FTP
- Configurable inputs/outputs with opto-decoupled inputs
- User-friendly control with buttons, LEDs, and acoustic beeper
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Position determination and sorting tasks
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing ensures long product life and reduces waste
- Energy-efficient operation with typical power consumption of 10 W
- Supports remote diagnostics and data logging to optimize maintenance and reduce downtime
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D632P-2MXCXB0 2D Snapshot Vision Sensor is available for immediate purchase, ideal for industrial automation and quality inspection applications.
