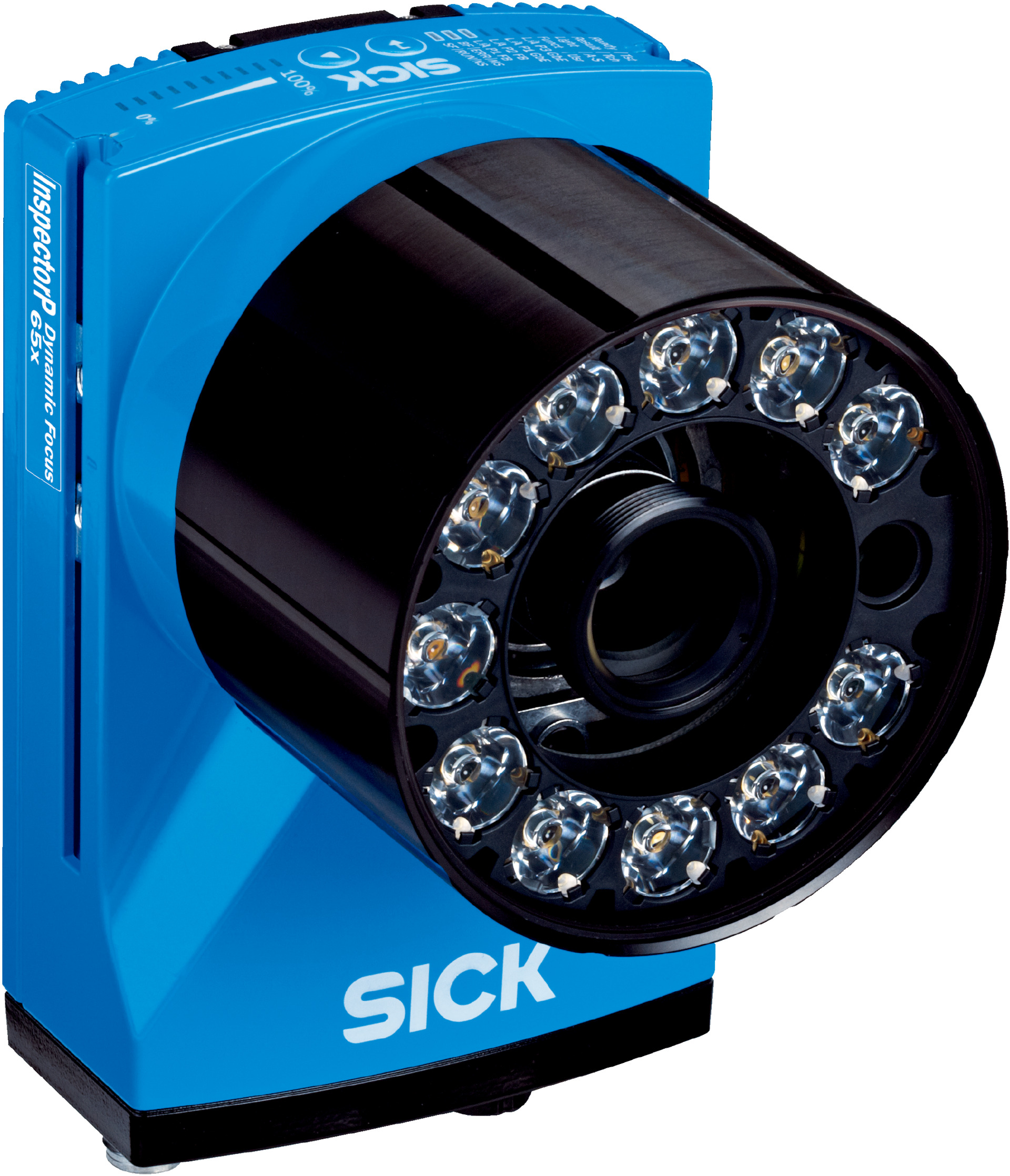

2D Vision Sensor | 2048 x 1088 Resolution | 70 Hz Frame Rate | Integrated LED Illumination | by SICK
The 2D Vision Sensor offers a high-resolution 2048 x 1088 px imaging capability and a rapid 70 Hz scan/frame rate, making it ideal for industrial automation and quality inspection tasks. With integrated white and blue LED illumination and a Class 1 laser alignment aid, this sensor ensures precise detection and measurement of objects, 2D codes, and patterns, enhancing efficiency in machine vision applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2048 px x 1088 px (2.1 Megapixel)
- Scan/frame rate: 70 Hz
- Illumination: Integrated white and blue LEDs (455 nm)
- Feedback spot: Green LED (525 nm ± 15 nm)
- Alignment aid: Red laser (630 nm to 680 nm), Class 1 laser
- Connection types: M12 17-pin male, M8 4-pin female (USB not used), M12 8-pin socket (Gigabit Ethernet)
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Enclosure rating: IP65
- Protection class: III
- Housing material: Aluminum die cast
- Window material: Glass
- Interfaces: Serial (RS-232, RS-422), Ethernet (TCP/IP), CAN, EtherNet/IP, PROFINET
- Operator interface: Web server
- Configuration software: SICK AppStudio
- Data storage: microSD card and external FTP
- Inputs/outputs: 2 opto-decoupled inputs, 4 configurable inputs/outputs
- Output current: ≤ 100 mA
- Maximum encoder frequency: 1 kHz
- Control elements: 2 buttons
- Optical indicators: 21 LEDs
- Acoustic indicators: Beeper
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.963 kg
Key Features
- 2D snapshot technology with programmable functions
- Integrated white and blue LED illumination
- Dynamic focus control with global shutter CMOS monochrome image sensor
- Laser alignment aid with Class 1 laser safety
- Multiple communication interfaces including Ethernet, PROFINET, CAN, and EtherNet/IP
- Robust aluminum die-cast housing with IP65 rating
- High scan/frame rate of 70 Hz
- Feedback spot LED and acoustic beeper indicators
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classes, and sorting
- Determining 2D position
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Supports digital data logging reducing paper usage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

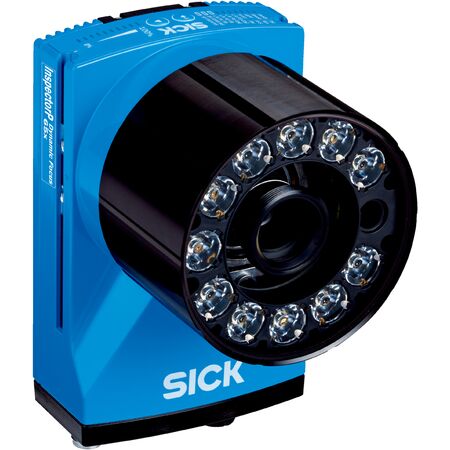

The SICK V2D652P-2MEWHA6 2D Snapshot Vision Sensor is available for immediate purchase. Ideal for industrial automation, quality inspection, and machine vision applications.
