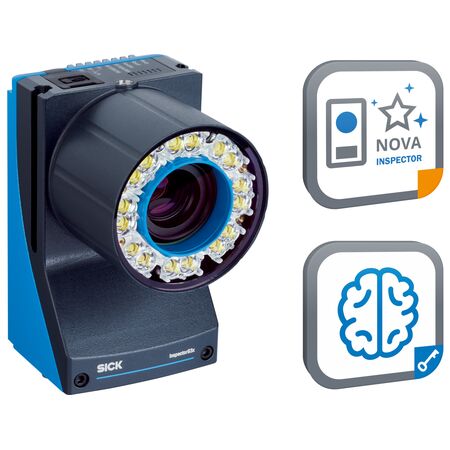

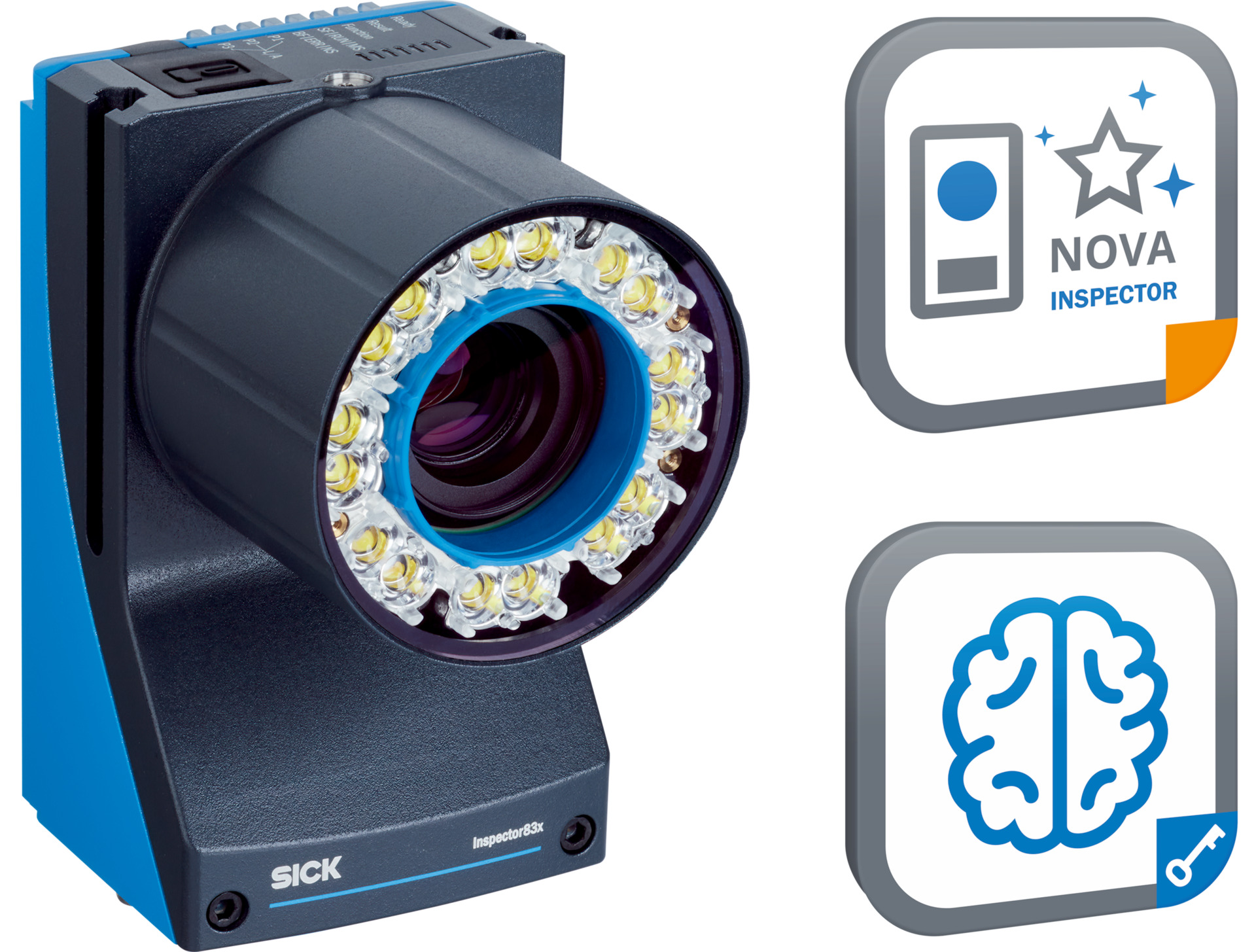

2D Vision Sensor | 5.1 Megapixels | IP65 Rated | Integrated White LED | by SICK
The 2D Vision Sensor offers high-resolution imaging with 5.1 megapixels, perfect for detecting standard objects and measuring dimensions in industrial automation. With integrated white LED illumination and robust IP65-rated housing, it ensures reliable performance in various environments. Ideal for quality inspection and machine vision applications, this sensor is programmable via SensorApp Nova Inspector for customized solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5.1 Megapixels)
- Pixel size: 2.74 µm x 2.74 µm
- Sensor size: 6.75 mm x 5.61 mm
- Scan/frame rate: 30 Hz
- Supply voltage: 24 V DC ± 20%
- Power consumption: 21 W
- Connection types: M12 17-pin male (Power, I/O), M8 4-pin female (external illumination), M12 8-pin female (Gigabit Ethernet), 2x M12 4-pin female (fieldbus Ethernet)
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Vibration resistance: EN 60068-2-6:2007, EN 60068-2-64:2019
- Shock resistance: EN 60068-2-27:2008
- Illumination color: White LED, 6500 K ± 1000 K
- LED class: Risk group 1 (IEC 62471 / EN 62471)
- Lens: C-mount, 12 mm focal length, optical format 1/1.8"
- MTBF: 100,000 hours
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS monochrome sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination (6500 K)
- Adjustable manual optical focus
- Global-Shutter shutter technology
- High sensor resolution of 5.1 Megapixels (2464 x 2048 px)
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP
- Robust aluminum die cast housing with IP65 rating
- Supports SICK Nova Tool plug-in for custom tool development
- Includes Intelligent Inspection License with unlimited period
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with electrical standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns
- Classifying and sorting
- 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable IP65 rated housing extends product lifespan and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8305P-1MCICXAF1SXXXX vision sensor is available for immediate purchase, ideal for industrial automation, quality inspection, and machine vision applications.
