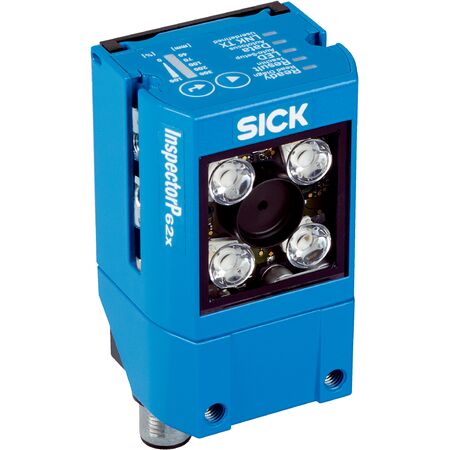

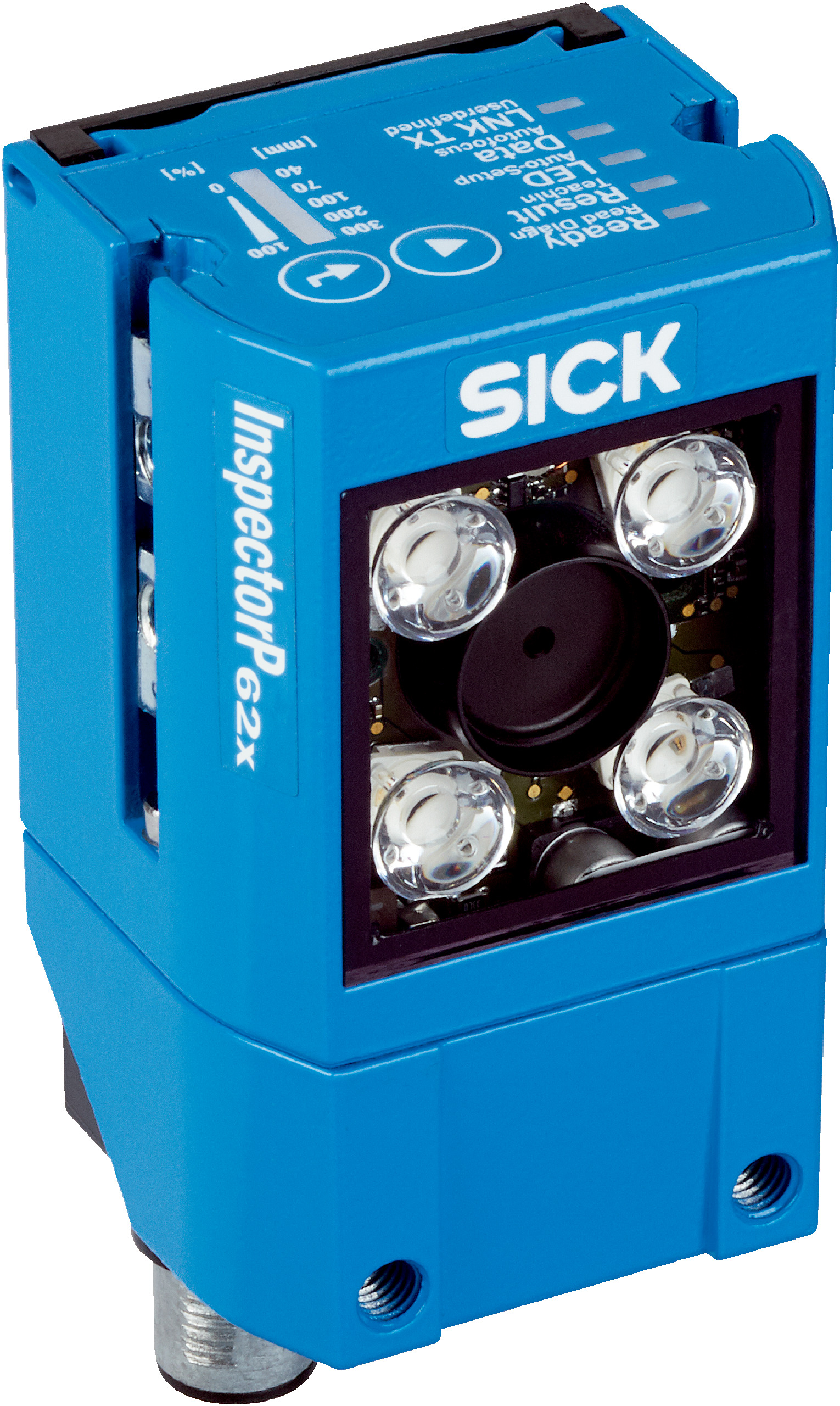

2D Vision Sensor | CMOS Monochrome | 1280 x 1024 Resolution | IP65 Rated | by SICK

BRAND: SICK
SKU: 1110849
$9,270.10 List price: $11,651.50
+ −
30 Days Return Delivery Options
The 2D Vision Sensor V2D621P-2MDFGB5 features advanced 2D snapshot technology with a high-resolution CMOS monochrome image sensor, perfect for quality inspection in manufacturing. With programmable settings via SensorApp Nova Inspector and integrated infrared LED illumination, it ensures precise dimension and contour measurements, making it ideal for industrial automation and quality control applications.
Technical Specifications
  • Dimensions (H x L x W): 36mm x 71mm x 43mm
  • Weight: 0.17 kg
Key Features
  • 2D snapshot technology with CMOS monochrome image sensor
  • Programmable and configurable via SensorApp Nova Inspector
  • Adjustable electric optical focus
  • Integrated infrared LED illumination (850 nm)
  • Visible green LED feedback spot
  • Red laser alignment aid (Laser Class 1)
  • High sensor resolution of 1280 x 1024 pixels (1.3 MPixel)
  • 50 Hz scan/frame rate
  • Multiple industrial interfaces including Ethernet, PROFINET, EtherCAT, CAN, and PROFIBUS
  • IP65 rated aluminum die-cast housing with glass window
  • Low power consumption (typ. 4 W)
  • Robust design with MTBF of 75,000 hours
Professional Installation Requirements
  • Installation and configuration by qualified personnel recommended to ensure proper integration and safety compliance.
Applications
  • Quality inspection in manufacturing
  • Dimension, contour, and volume measurement
  • 2D code and OCR identification
  • Pattern recognition and classification
  • Sorting and 2D position determination
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
  • Low power consumption reduces energy usage
  • Durable aluminum housing extends product lifespan
  • Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.

Available Now

The SICK V2D621P-2MDFGB5 is available for immediate purchase, ideal for industrial automation and quality control applications.
