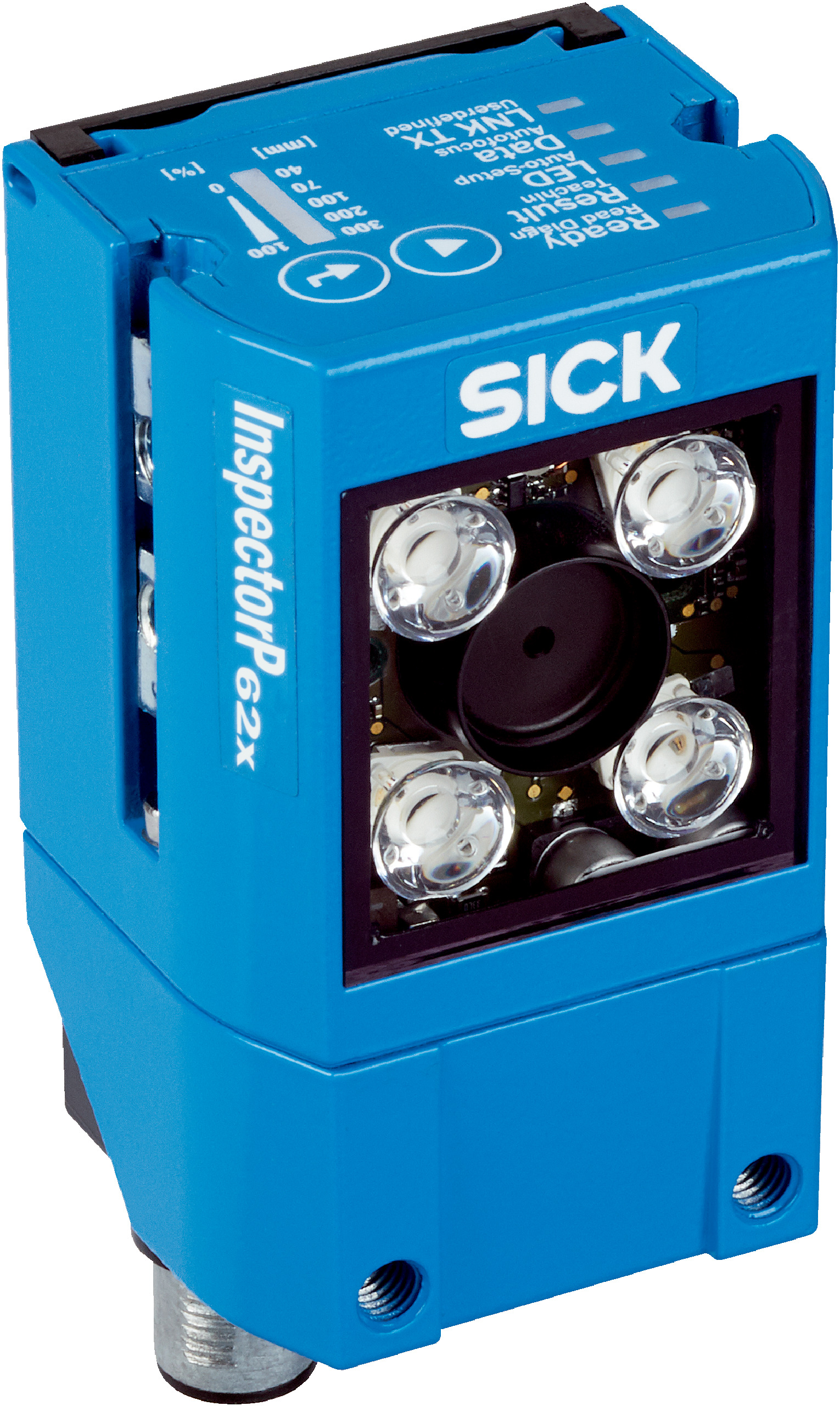

2D Vision Sensor | CMOS Monochrome | Adjustable Electric Focus | IP65 Rated | by SICK
The 2D Vision Sensor is designed for quality inspection in industrial settings, featuring advanced 2D snapshot technology with a high-resolution CMOS monochrome image sensor. With adjustable electric optical focus and integrated red and blue LED illumination, it ensures precise measurements and reliable performance. Ideal for applications like dimension measurement, 2D code identification, and pattern recognition, this sensor is built to withstand tough environments with its IP65 rated aluminum housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Shutter technology: Global-Shutter
- Optical focus: Adjustable electric focus
- Working range: 300 mm to 1500 mm
- Illumination: Integrated red (617 nm) and blue (470 nm) LEDs
- Feedback spot: Green LED (525 nm)
- Laser class: Class 1 laser, IEC 60825-1 compliant
- LED class: Risk group 1 (IEC 62471)
- Spectral range: Approx. 400 nm to 900 nm
- Focal length: 17.1 mm
- Sensor resolution: 1280 px x 1024 px (1.3 Mpixel)
- Scan/frame rate: 50 Hz
- Connection type: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector
- Supply voltage: 12 V DC to 24 V DC ±10%
- Power consumption: Typically 4 W
- Enclosure rating: IP65
- Protection class: III
- Housing material: Aluminum die cast
- Window material: PMMA
- MTBF: 75,000 hours
- Interfaces: Serial (RS-232, RS-422), Ethernet (TCP/IP, PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP), CAN
- Operator interfaces: Web server, Web GUI, SICK AppStudio
- Inputs/outputs: 2 opto-decoupled inputs, 4 configurable inputs/outputs
- Output current: ≤ 100 mA
- Maximum encoder frequency: 300 Hz
- Control elements: 2 buttons
- Optical indicators: 16 LEDs
- Acoustic indicators: Beeper
- Dimensions (H x L x W): 35.6mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Programmable and configurable via SensorApp Nova Inspector
- Adjustable electric optical focus
- Integrated red and blue LED illumination with visible feedback spot
- Laser alignment aid with Class 1 laser safety
- High sensor resolution of 1280 x 1024 pixels at 50 Hz scan rate
- Multiple industrial communication interfaces including Ethernet, PROFINET, EtherCAT, CAN, and PROFIBUS
- IP65 rated aluminum die cast housing with PMMA window
- Low power consumption of approximately 4 W
- Robust design with MTBF of 75,000 hours
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Sorting and 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

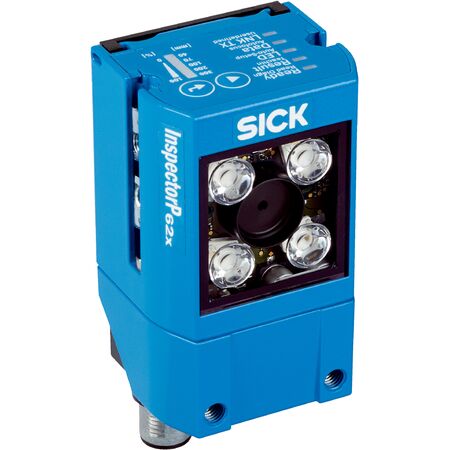

The SICK V2D621P-2MSFFB5 2D snapshot vision sensor is available for immediate purchase, ideal for industrial quality inspection and measurement applications.
