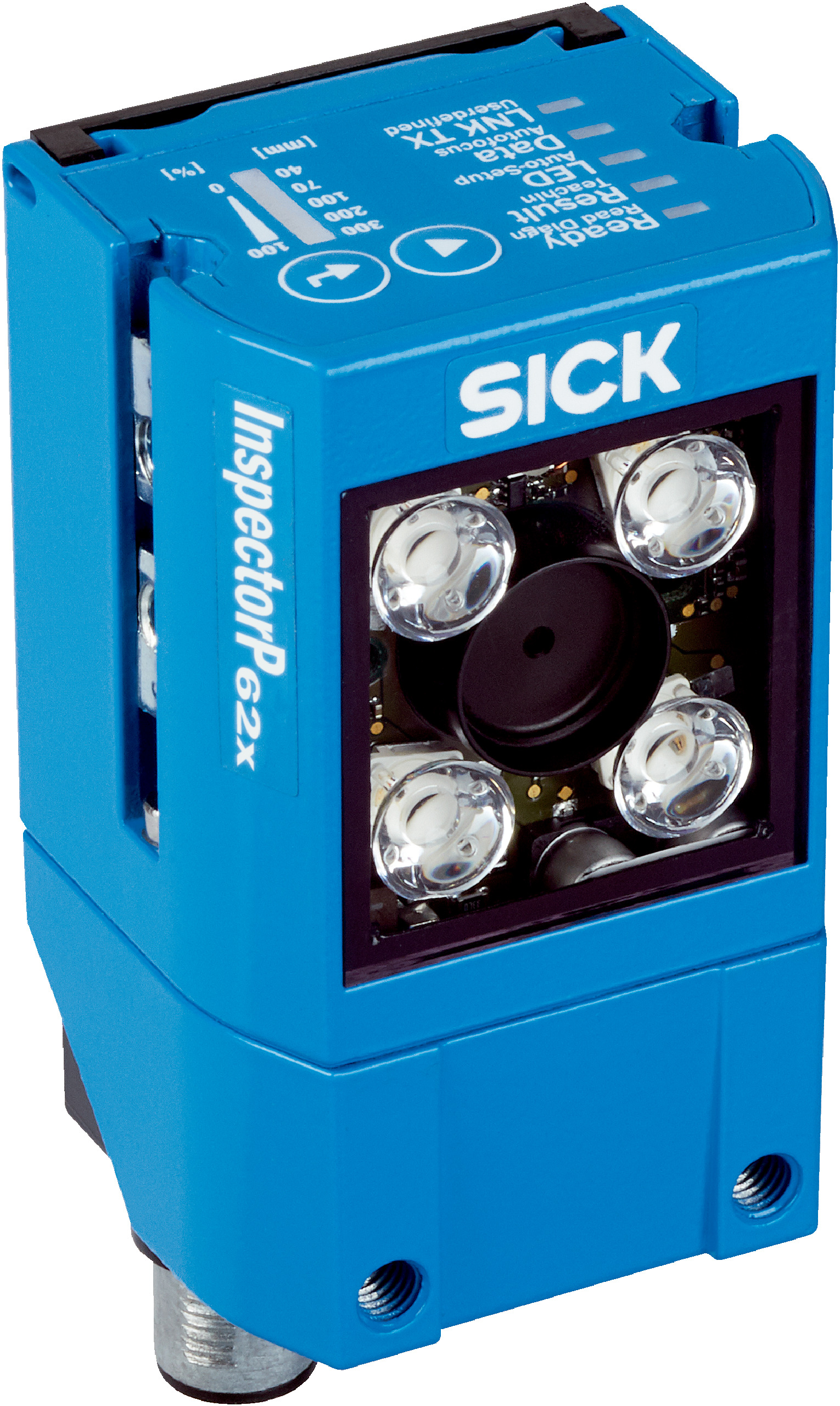

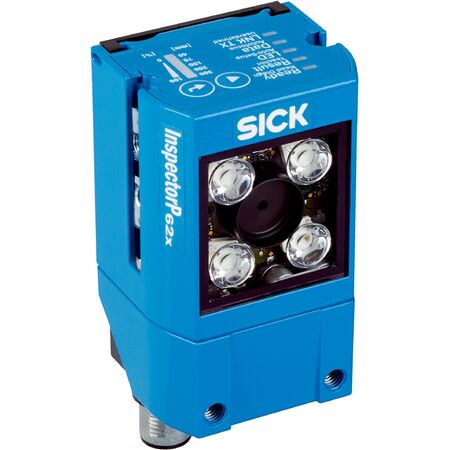

2D Vision Sensor | CMOS Monochrome | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Vision Sensor V2D621P-2MDFCB5 features advanced 2D snapshot technology with a high-resolution CMOS monochrome image sensor, perfect for quality inspection in manufacturing. With adjustable electric focus and integrated infrared LED illumination, it ensures precise measurements and reliable performance in various industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Shutter technology: Global-Shutter
- Optical focus: Adjustable electric focus
- Working range: 70 mm to 1500 mm
- Illumination: Integrated infrared LED (850 nm ± 25 nm)
- Feedback spot: Visible green LED (525 nm ± 15 nm)
- Alignment aid: Red laser (630 nm to 680 nm), Laser class 1
- LED class: Risk group 1 (IEC 62471)
- Sensor resolution: 1280 px x 1024 px (1.3 Mpixel)
- Scan/frame rate: 50 Hz
- Connection type: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector
- Supply voltage: 12 V DC to 24 V DC ± 10%
- Power consumption: Typical 4 W
- Enclosure rating: IP65
- Protection class: III
- Housing material: Aluminum die cast
- Window material: PMMA
- MTBF: 75,000 hours
- Interfaces: Serial (RS-232, RS-422), Ethernet (TCP/IP, PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP), CAN
- Operator interfaces: Web server, Web GUI, SICK AppStudio
- Inputs/outputs: 2 opto-decoupled inputs, 4 configurable inputs/outputs
- Output current: ≤ 100 mA
- Maximum encoder frequency: 300 Hz
- External illumination: Via digital output (max. 24 V trigger)
- Control elements: 2 buttons
- Optical indicators: 16 LEDs
- Acoustic indicators: Beeper
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Shock load: EN 60068-2-27
- Vibration load: EN 60068-2-6
- Dimensions (H x L x W): 35.6mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Programmable and configurable via SensorApp Nova Inspector
- Adjustable electric optical focus
- Integrated infrared LED illumination (850 nm)
- Visible green LED feedback spot and red laser alignment aid
- Global-Shutter shutter technology
- Multiple industrial communication interfaces including Ethernet, PROFINET, EtherCAT, CAN, and PROFIBUS
- IP65 rated aluminum die-cast housing with PMMA window
- Low power consumption (typ. 4 W)
- High sensor resolution of 1280 x 1024 pixels with 50 Hz frame rate
- Robust against shock and vibration per EN 60068 standards
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Position determination and sorting tasks
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable IP65 rated housing extends product life and reduces waste
- Supports efficient quality control to minimize defective products and material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK V2D621P-2MDFCB5 2D Snapshot Vision Sensor is available for immediate purchase, ideal for industrial automation and quality inspection applications.
