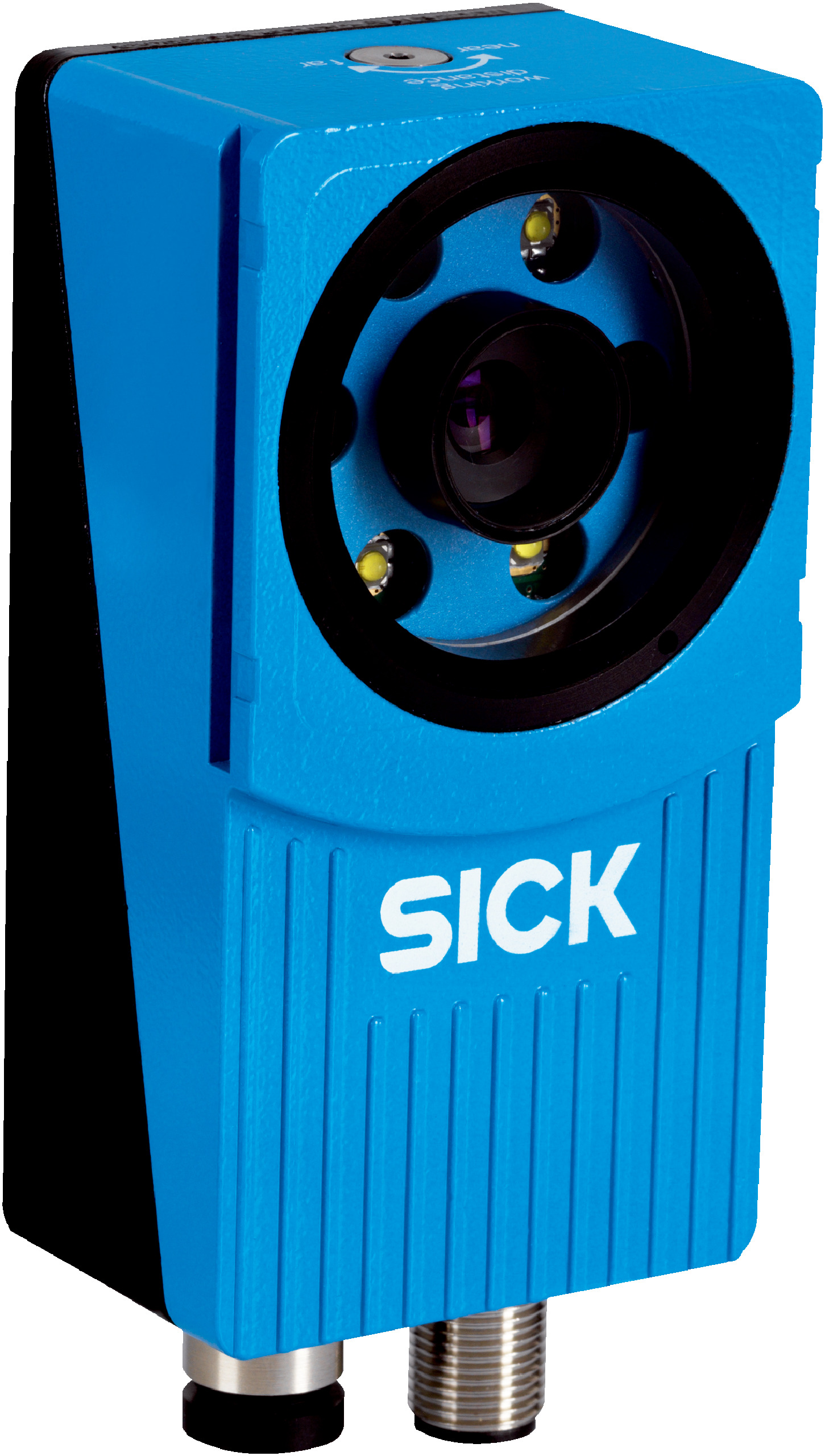

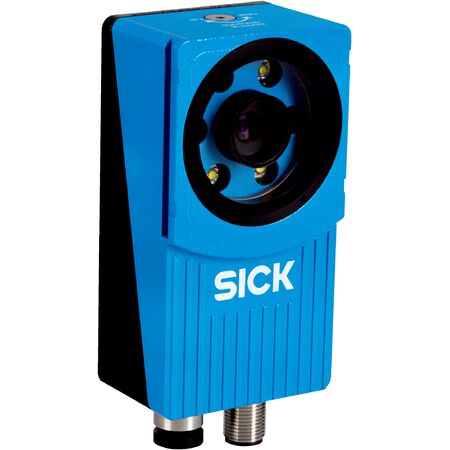

2D Vision Sensor VSPI-4F2111 | CMOS Monochrome | IP67 Rated | 40 fps Frame Rate | by SICK
The 2D Vision Sensor VSPI-4F2111 features advanced 2D snapshot technology with a high-resolution CMOS monochrome image sensor. Ideal for industrial automation and quality control, it offers a working range starting from 50 mm and integrated white LED illumination for low-risk operation. With a robust IP67 rated aluminum housing, this sensor is built for durability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2D Vision Sensor VSPI-4F2111 | CMOS Monochrome | IP67 Rated | 40 fps Frame Rate | by SICK
Brand: SICK
SKU: 1047913
Alternatively Known As: 2D Vision Sensor, Snapshot Vision Sensor, Industrial Vision Sensor, Object Detection Sensor, OCR Vision Sensor
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Optical focus: Adjustable manual focus
- Working range: ≥ 50 mm
- Operating distance with internal illumination: 50 mm to 200 mm
- Field of view of internal illumination: 22 mm x 15 mm to 79 mm x 58 mm
- Illumination: Integrated white LED, Risk group 1 (low risk, IEC62471: 2006)
- Sensor resolution: 640 px x 480 px (0.3 Mpixel)
- Scan/frame rate: 40 fps
- Number of inspections: 32
- Reference images: 32 objects
- Connection type: M12 12-pin male and M12 4-pin female connectors
- Supply voltage: 24 V DC ± 20%
- Current consumption: < 450 mA without output load
- Enclosure rating: IP67
- Housing material: Aluminum
- Window material: PMMA
- Data transmission rate: 100 Mbit/s via EtherNet/IP™
- Digital inputs: 4 inputs (24 V)
- Digital outputs: 3 digital outputs (24 V, B-type)
- Maximum encoder frequency: 40 kHz
- Operating temperature: 0 °C to +45 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 38mm x 100mm x 53mm
- Weight: 0.35 kg
Key Features
- 2D snapshot technology with configurable toolkit including Object Locator, Contour Pixel Counter, Edge Pixel Counter, and Pattern
- CMOS monochrome image sensor with adjustable manual focus
- Integrated white illumination with low risk LED class (IEC62471: 2006)
- Working range starting from 50 mm with internal illumination field of view from 22 mm x 15 mm to 79 mm x 58 mm
- High sensor resolution of 640 px x 480 px (0.3 Mpixel) and scan/frame rate of 40 fps
- Robust IP67 rated aluminum housing with PMMA window
- Multiple interfaces including EtherNet/IP™, digital inputs and outputs, and configurable I/O options
- Supports offline emulator and configuration via SOPAS ET software
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying OCR and patterns
- 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated LED illumination reduces the need for external lighting, lowering energy consumption
- Durable IP67 rated housing extends product lifespan, reducing waste
- Supports efficient automated inspection reducing material waste in production
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VSPI-4F2111 2D Snapshot Vision Sensor is available for immediate purchase, ideal for industrial automation, quality control, and manufacturing inspection applications.
