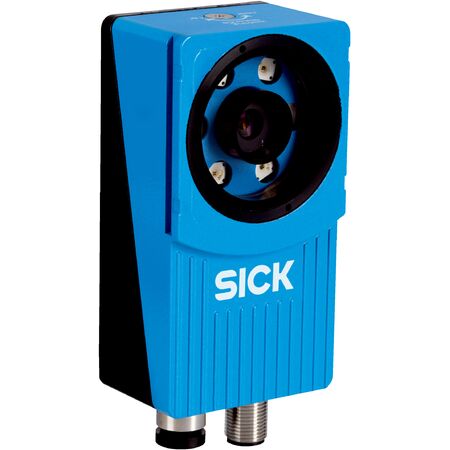

2D Vision Sensor VSPI-4F2411 | CMOS Monochrome | 40 fps Capture | IP67 Rated | by SICK
The 2D Vision Sensor VSPI-4F2411 features advanced 2D snapshot technology with a CMOS monochrome image sensor, delivering high-speed image capture at 40 fps. Ideal for industrial automation and quality control, this sensor offers integrated infrared illumination and a robust IP67 aluminum housing, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2D Vision Sensor VSPI-4F2411 | CMOS Monochrome | 40 fps Capture | IP67 Rated | by SICK
Brand: SICK
SKU: 1054705
Alternatively Known As: 2D Vision Sensor, Industrial Vision Sensor, Snapshot Camera Sensor, Machine Vision Sensor
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Optical focus: Adjustable (manual)
- Working range: ≥ 50 mm
- Operating distance with internal illumination: 50 mm to 200 mm
- Field of view of internal illumination: 22 mm x 15 mm to 79 mm x 58 mm
- Illumination: Integrated infrared, risk-free LED class (IEC62471: 2006)
- Sensor resolution: 640 px x 480 px (0.3 Mpixel)
- Scan/frame rate: 40 fps
- Number of inspections: 32
- Reference images: 32 objects
- Connection type: M12 12-pin male and M12 4-pin female connectors
- Supply voltage: 24 V DC ± 20%
- Current consumption: < 450 mA without output load
- Enclosure rating: IP67
- Housing material: Aluminum
- Window material: PMMA
- Data transmission rate: 100 Mbit/s via EtherNet/IP™
- Digital inputs: 4 (24 V), configurable
- Digital outputs: 3 (24 V B-type), configurable
- Maximum encoder frequency: 40 kHz
- Operating temperature: 0 °C to +45 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 38mm x 100mm x 53mm
- Weight: 0.35 kg
Key Features
- 2D snapshot technology with configurable toolkit including Object Locator, Contour Pixel Counter, Edge Pixel Counter, and Pattern
- CMOS monochrome image sensor with adjustable manual focus
- Integrated infrared illumination with risk-free LED class (IEC62471: 2006)
- Working range starting from 50 mm with internal illumination field of view from 22 mm x 15 mm to 79 mm x 58 mm
- High-speed image capture at 40 fps with 640 px x 480 px resolution
- Multiple digital inputs and outputs with configurable logic and Ethernet/IP communication
- Robust IP67 aluminum housing suitable for industrial environments
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial vision systems and electrical standards to ensure proper setup and compliance.
Applications
- Industrial automation for object detection and measurement
- Quality control with OCR and pattern identification
- Position determination in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated infrared illumination reduces the need for external lighting, lowering energy consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VSPI-4F2411 2D Snapshot Vision Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
