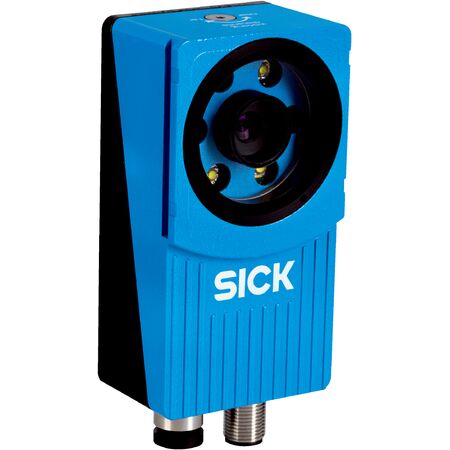

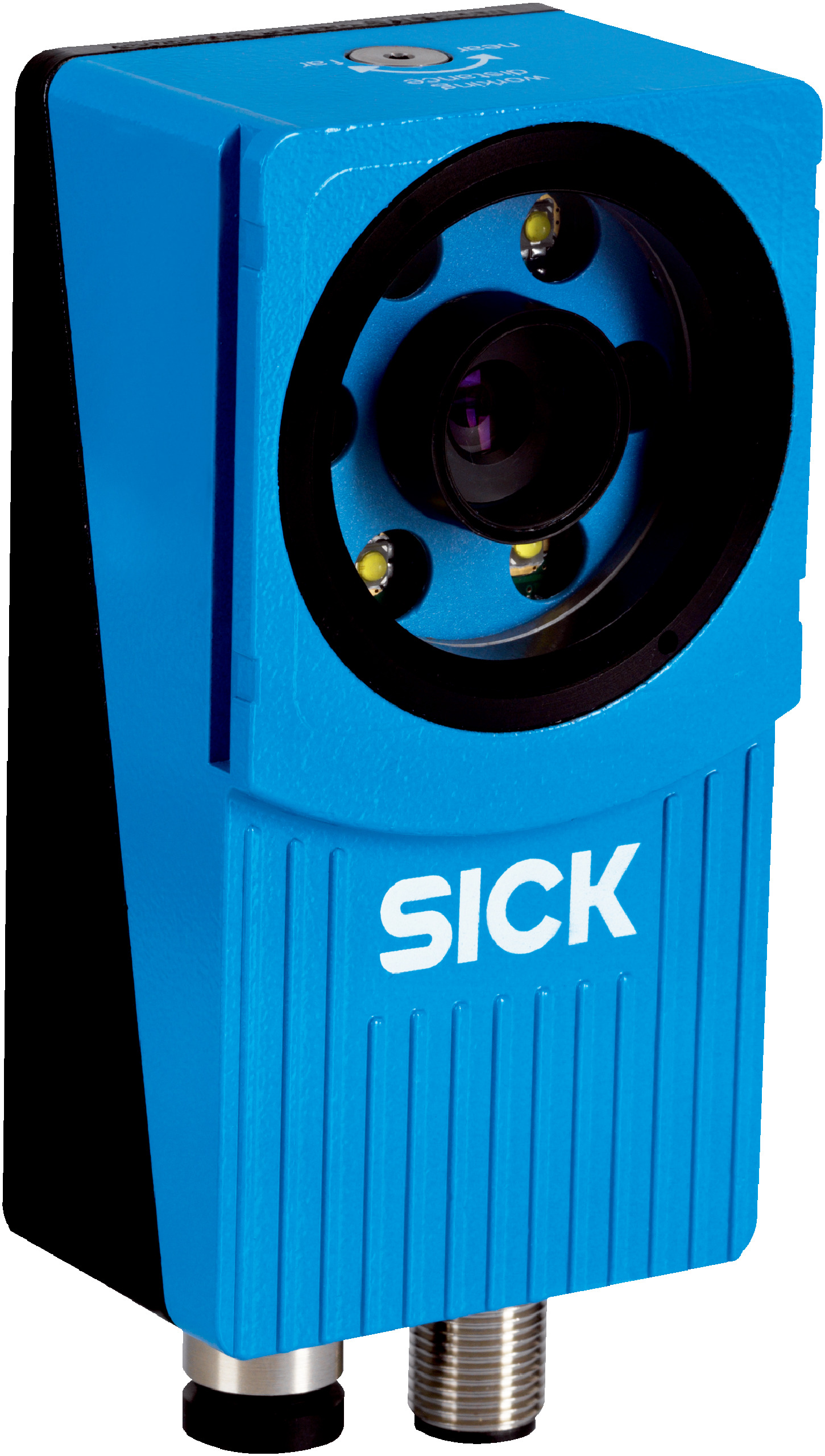

2D Vision Sensor VSPM-6B2113 | CMOS Monochrome | 40 fps Scan Rate | IP67 Rated | by SICK
The 2D Vision Sensor VSPM-6B2113 features advanced 2D snapshot technology with a CMOS monochrome image sensor, delivering a 40 fps scan rate for high-speed inspections. Ideal for industrial automation and quality control, this sensor is built with a robust IP67 aluminum housing, ensuring durability in harsh environments while providing precise object detection and measurement capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2D Vision Sensor VSPM-6B2113 | CMOS Monochrome | 40 fps Scan Rate | IP67 Rated | by SICK
Brand: SICK
SKU: 1064565
Alternatively Known As: 2D Vision Sensor, Industrial Vision Sensor, Snapshot Vision Sensor, SICK VSPM Camera, Machine Vision Sensor
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome, 640 px x 480 px (0.3 Mpixel)
- Optical focus: Adjustable manually
- Calibration: Perspective and lens distortion correction with mm results
- Working range: ≥ 50 mm
- Operating distance with internal illumination: 50 mm to 200 mm
- Illumination: Integrated white LED, Risk group 1 (low risk, IEC62471: 2006)
- Scan/frame rate: 40 fps
- Number of inspections: 64
- Reference images: 32 objects
- Connection type: M12 12-pin male and M12 4-pin female connectors
- Supply voltage: 24 V DC ± 20%
- Current consumption: < 450 mA without output load
- Enclosure rating: IP67
- Housing material: Aluminum
- Weight: 350 g
- Data transmission rate: 100 Mbit/s via Ethernet and EtherNet/IP™
- Digital inputs: 4 (24 V), Digital outputs: 3 (24 V, B-type)
- Maximum encoder frequency: 40 kHz
- Operating temperature: 0 °C to +45 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 38mm x 100mm x 53mm
- Weight: 0.35 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Configurable with advanced toolkit including Object Locator, Pixel Counter, Pattern Blob Finder, and OCR
- Adjustable manual optical focus with perspective and lens distortion correction
- Integrated white illumination with low risk LED class (IEC62471: 2006)
- High-speed performance with 40 fps scan/frame rate and 64 inspections
- Robust IP67 aluminum housing suitable for industrial environments
- Multiple interfaces including Ethernet, EtherNet/IP™, digital inputs/outputs, and web server operator interface
- Supports robot coordinate alignment and external illumination control
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial vision systems and compliant with electrical safety standards.
Applications
- Industrial automation for object detection and measurement
- Robotics for 2D position determination and robot coordinate alignment
- Quality control for dimension, contour, volume measurement, and OCR
- Pattern recognition and inspection tasks in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated LED illumination reduces the need for external lighting, lowering energy consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Supports precise inspection and measurement, minimizing material waste in manufacturing
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VSPM-6B2113 2D Snapshot Vision Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
