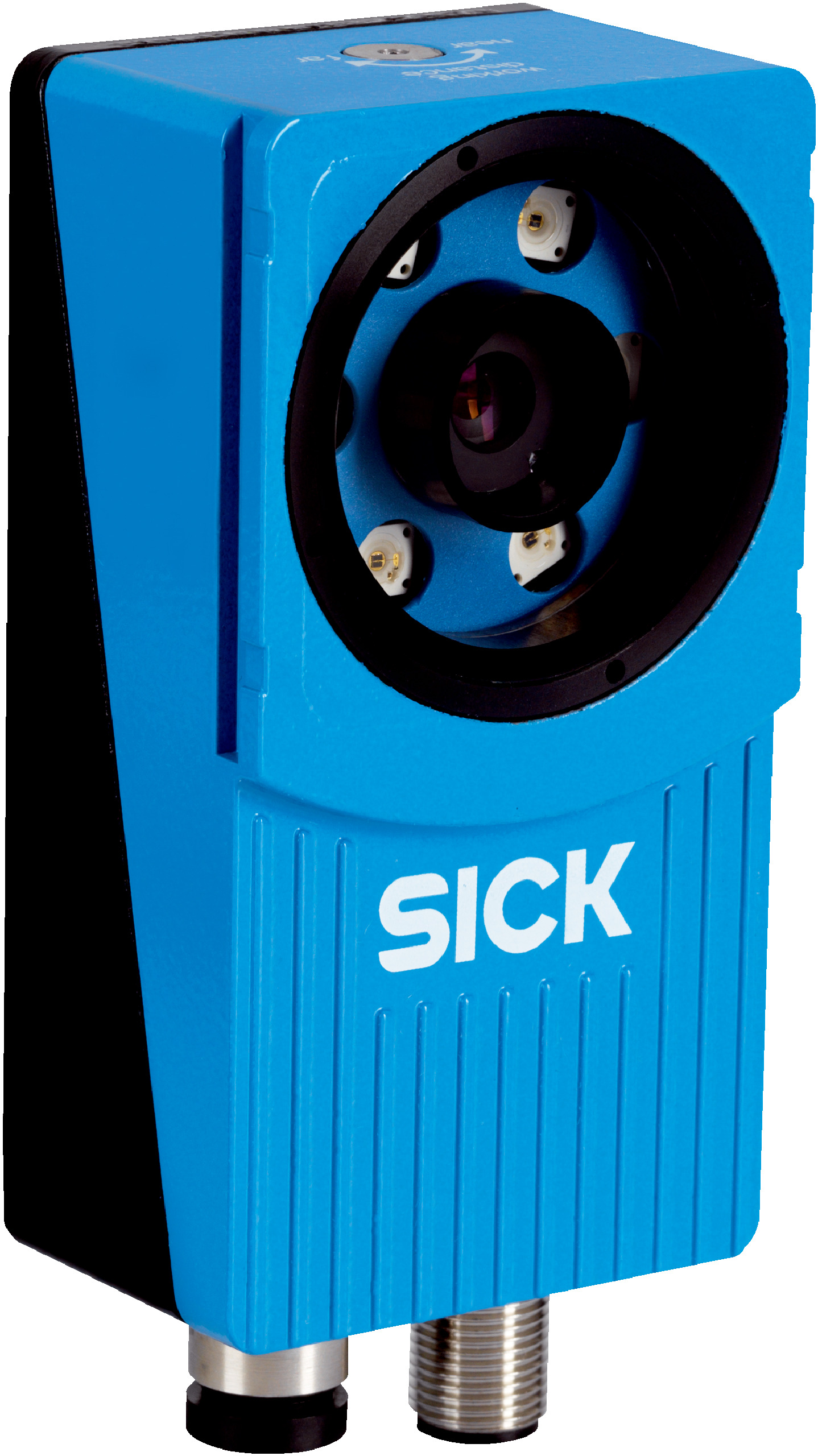

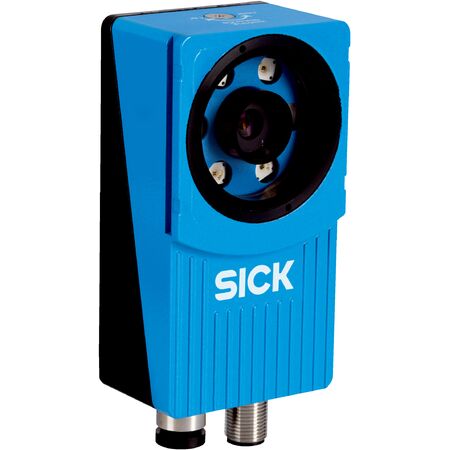

2D Vision Sensor VSPM-6B2413 | CMOS Monochrome | IP67 Rated | 40 fps Frame Rate | by SICK
The 2D Vision Sensor VSPM-6B2413 features advanced 2D snapshot technology with a CMOS monochrome image sensor, delivering high-speed image capture at 40 fps. Ideal for industrial automation, quality control, and object detection, this sensor offers adjustable optical focus and integrated infrared illumination, ensuring precise measurements and reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome, 640 px x 480 px (0.3 Mpixel)
- Optical focus: Adjustable manually
- Illumination: Integrated infrared, spectral range approx. 370 nm to 900 nm
- LED class: Risk-free group (IEC62471: 2006)
- Working range: ≥ 50 mm
- Operating distance with internal illumination: 50 mm to 200 mm
- Scan/frame rate: 40 fps
- Number of inspections: 64
- Reference images: 32 objects
- Connection type: M12 12-pin male and M12 4-pin female connectors
- Supply voltage: 24 V DC ± 20%
- Current consumption: < 450 mA without output load
- Enclosure rating: IP67
- Housing material: Aluminum
- Weight: 350 g
- Data transmission rate: 100 Mbit/s via Ethernet and EtherNet/IP™
- Digital inputs: 4 inputs (24 V)
- Digital outputs: 3 digital outputs (24 V, B-type), max output current ≤ 100 mA
- Operator interface: Web server
- Configuration software: SOPAS ET
- Data storage: Log for 30 images, record images on PC, store images to FTP
- Shock load: EN 60068-2-27
- Vibration load: IEC 60068-2-6
- Operating temperature: 0 °C to +45 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 38mm x 100mm x 53mm
- Weight: 0.35 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Configurable with multiple toolkits including Object Locator, Pixel Counter, Pattern Blob Finder, and OCR
- Adjustable manual optical focus
- Integrated infrared illumination with risk-free LED class (IEC62471: 2006)
- Perspective and lens distortion correction for precise mm results
- Robot coordinate alignment supported
- Working range starting from 50 mm with internal illumination from 50 mm to 200 mm
- High-speed image capture at 40 fps
- Ethernet and EtherNet/IP™ communication with 100 Mbit/s data rate
- Web server operator interface and SOPAS ET configuration software
- IP67 rated aluminum housing for robust industrial use
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and integration with industrial systems.
Applications
- Industrial automation for object detection and measurement
- Quality control and inspection in manufacturing
- Robot coordinate alignment and positioning
- Optical character recognition (OCR) and pattern identification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated infrared illumination reduces the need for external lighting, lowering energy consumption
- Durable IP67 rated housing extends product lifespan, reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VSPM-6B2413 2D Snapshot Vision Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
