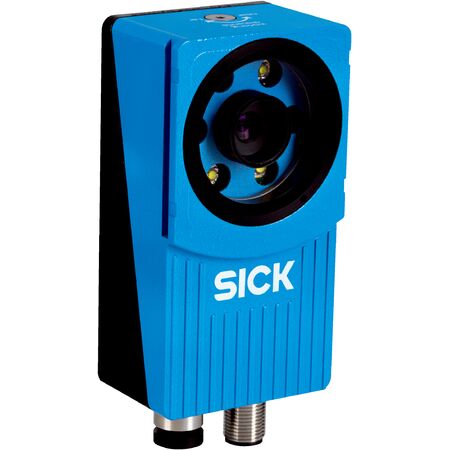

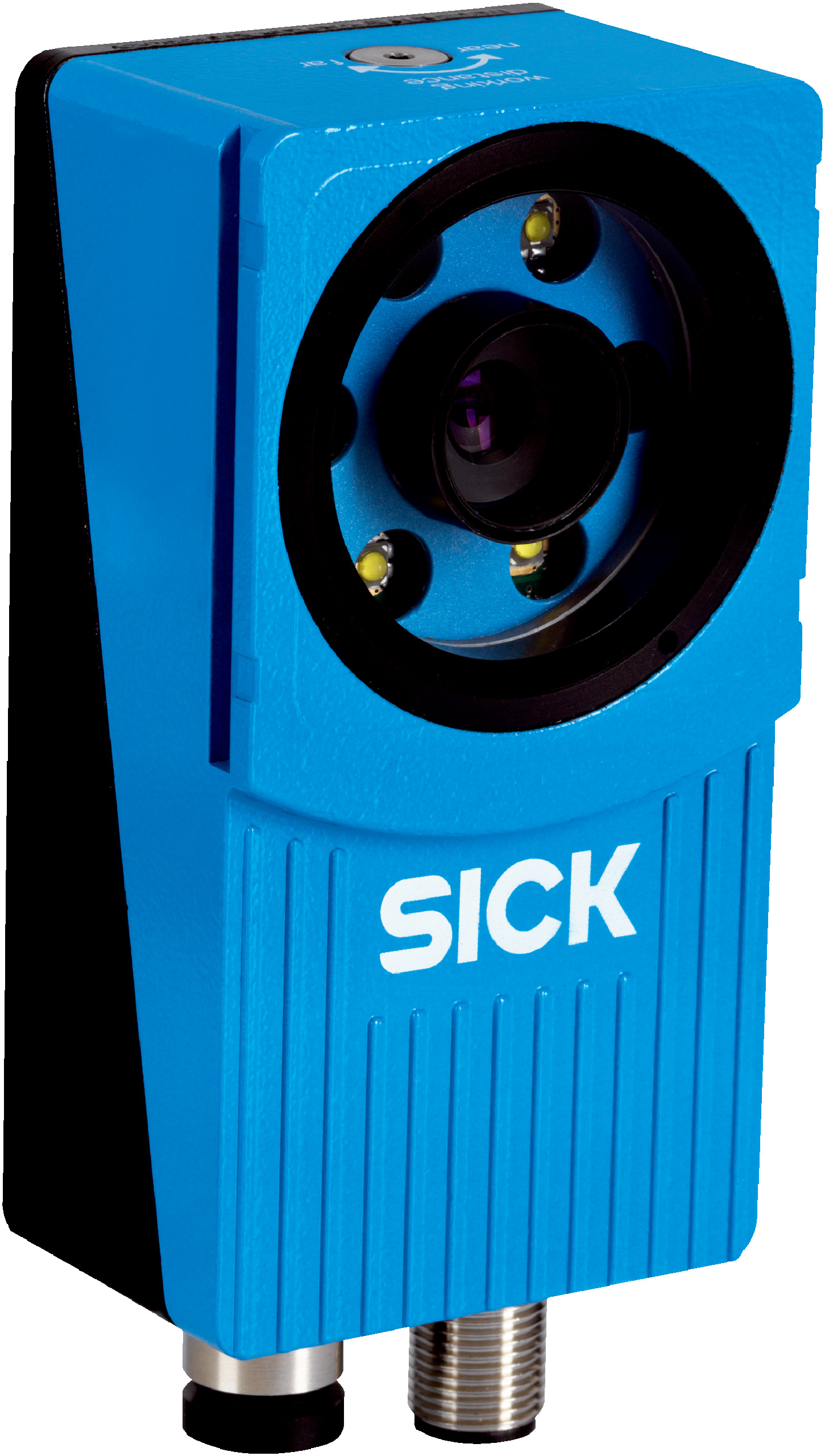

2D Vision Sensor VSPM-6F2113 | CMOS Monochrome | 40 fps Frame Rate | IP67 Rated | by SICK
The 2D Vision Sensor VSPM-6F2113 features advanced 2D snapshot technology with a CMOS monochrome image sensor, delivering high-speed image capture at 40 fps and a resolution of 640 x 480 pixels. Ideal for industrial automation, quality control, and optical inspection, this sensor is built with a robust IP67 rated aluminum housing and integrated white LED illumination, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Sensor resolution: 640 px x 480 px (0.3 Mpixel)
- Scan/frame rate: 40 fps
- Working range: ≥ 50 mm
- Operating distance with internal illumination: 50 mm to 200 mm
- Field of view of internal illumination: 22 mm x 15 mm to 79 mm x 58 mm
- Illumination: Integrated white LED, Risk group 1 (low risk, IEC62471: 2006)
- Optical focus: Adjustable manually
- Lens: S-mount, 1/3" optical format, 10 mm focal length
- Connection type: M12 12-pin male and M12 4-pin female connectors
- Supply voltage: 24 V DC ± 20%
- Current consumption: < 450 mA without output load
- Enclosure rating: IP67
- Housing material: Aluminum
- Window material: PMMA
- Digital inputs: 4 inputs (24 V)
- Digital outputs: 3 outputs (24 V, B-type), max 100 mA
- Ethernet: TCP/IP, 100 Mbit/s
- EtherNet/IP™: Supported, 100 Mbit/s
- Configuration software: SOPAS ET
- Data storage: Log for 30 images, image recording on PC, FTP storage
- Operating temperature: 0 °C to +45 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 38mm x 100mm x 53mm
- Weight: 0.35 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Configurable with advanced toolkit including Object Locator, Pixel Counter, Pattern Blob Finder, and OCR
- Adjustable manual optical focus with perspective and lens distortion correction
- Integrated white illumination with low risk LED class (IEC62471: 2006)
- High-speed image capture at 40 fps with 640 x 480 pixel resolution
- Robust IP67 rated aluminum housing with PMMA window
- Multiple interfaces including Ethernet, EtherNet/IP™, and digital I/O
- Supports robot coordinate alignment and various measurement tasks
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for object detection and measurement
- Quality control in manufacturing processes
- Robot coordinate alignment and positioning
- Optical inspection and pattern recognition
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated LED illumination reduces the need for external lighting, lowering energy consumption
- Durable IP67 rated housing extends product lifespan, reducing waste
- Supports precise quality control to minimize defective products and material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VSPM-6F2113 2D Snapshot Vision Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
