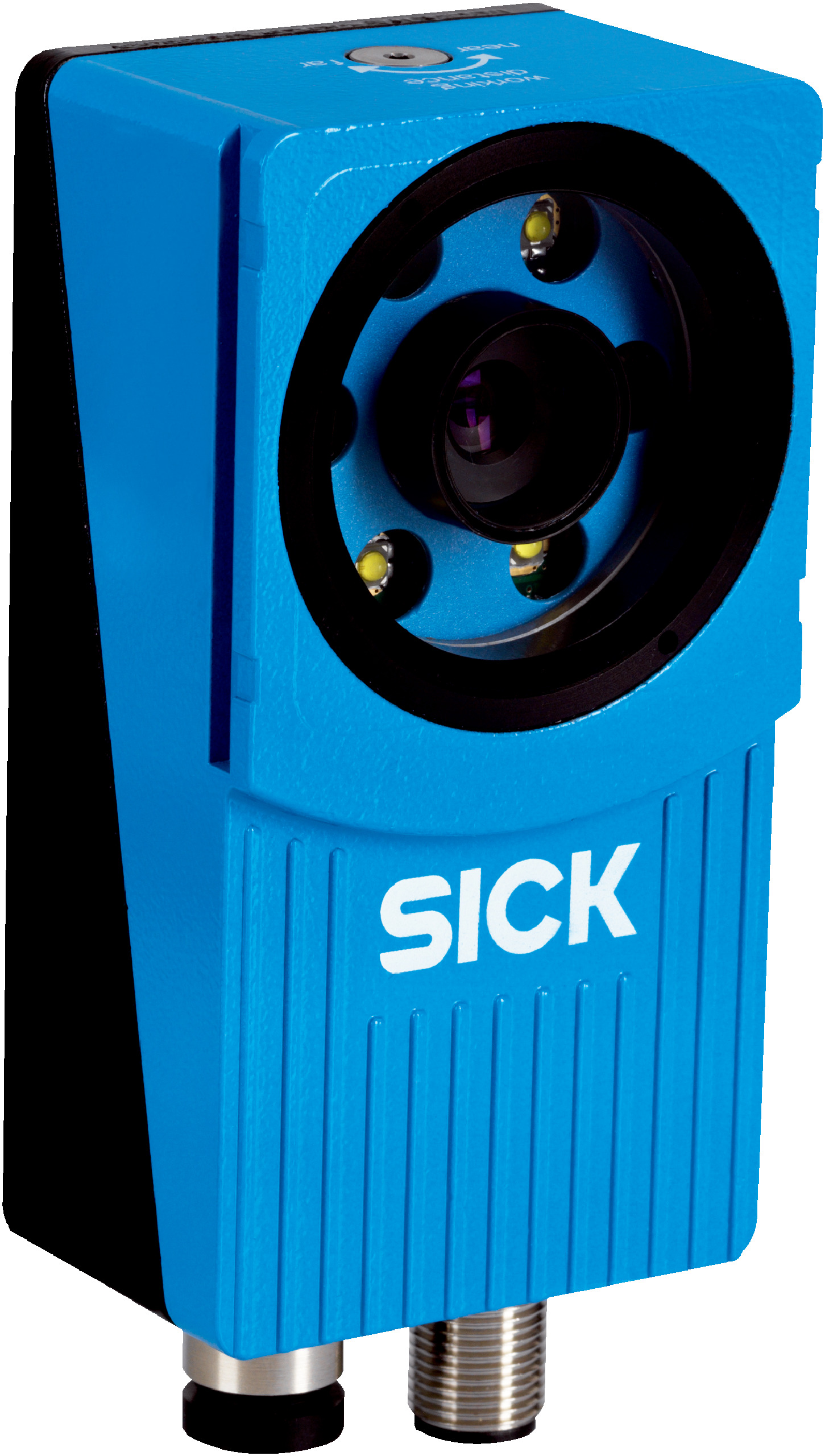

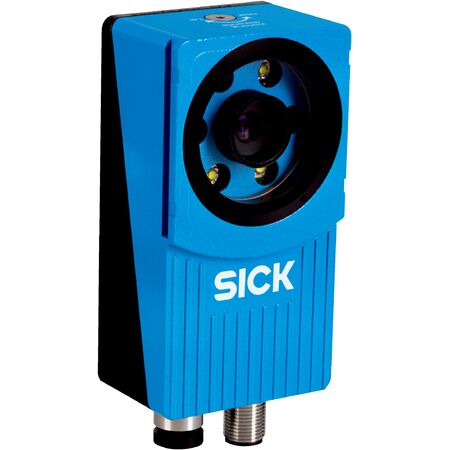

2D Vision Sensor VSPM-6F2113S19 | CMOS Monochrome | 40 fps Frame Rate | IP67 Rated | by SICK
The 2D Vision Sensor VSPM-6F2113S19 features advanced 2D snapshot technology with a CMOS monochrome image sensor, delivering high-speed image capture at 40 fps. Ideal for industrial automation and quality control, this sensor supports object detection, measurement, and pattern recognition, ensuring precision in manufacturing lines. With an IP67 rated aluminum housing and integrated white LED illumination, it’s built for durability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome, 640 px x 480 px (0.3 Mpixel)
- Optical focus: Adjustable manually
- Working range: ≥ 50 mm
- Operating distance with internal illumination: 50 mm to 200 mm
- Field of view of internal illumination: 22 mm x 15 mm to 79 mm x 58 mm
- Illumination: Integrated white LED, Risk group 1 (IEC62471:2006)
- Scan/frame rate: 40 fps
- Number of inspections: 32
- Reference images: 32 objects
- Connection type: M12 12-pin male and M12 4-pin female connectors
- Supply voltage: 24 V DC ± 20%
- Current consumption: < 450 mA without output load
- Enclosure rating: IP67
- Housing material: Aluminum
- Window material: PMMA
- Data transmission rate: 100 Mbit/s via Ethernet and EtherNet/IP
- Operator interfaces: Web server
- Configuration software: SOPAS ET
- Digital inputs: 4 inputs (24 V), configurable
- Digital outputs: 3 outputs (24 V), configurable
- Maximum encoder frequency: 40 kHz
- External illumination: 5 V TTL
- I/O box extension: 5 inputs for object selection, 16 outputs
- Dimensions (H x L x W): 38mm x 100mm x 53mm
- Weight: 0.35 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Configurable with multiple toolkits including Object Locator, Pixel Counter, Pattern Blob Finder
- Adjustable manual optical focus with integrated white illumination
- Perspective and lens distortion correction for accurate mm results
- Robot coordinate alignment supported
- Operating distance from 50 mm to 200 mm with internal illumination
- IP67 rated aluminum housing with PMMA window
- High-speed image capture at 40 fps with 640 x 480 pixel resolution
- Ethernet and EtherNet/IP communication with web server interface
- Configurable digital inputs and outputs with logical expression support
- Supports external triggers, encoder inputs, and external teach functions
- Comprehensive data storage and retrieval including FTP image storage
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and configuration.
Applications
- Industrial automation for object detection and measurement
- Robotics for 2D position determination and coordinate alignment
- Quality control for dimension, contour, volume measurement and OCR
- Manufacturing lines requiring pattern recognition and inspection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated LED illumination reduces need for external lighting, lowering energy consumption
- Durable IP67 rated housing extends product life and reduces waste
- Supports efficient automation reducing material waste and improving production accuracy
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VSPM-6F2113S19 2D Snapshot Vision Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
