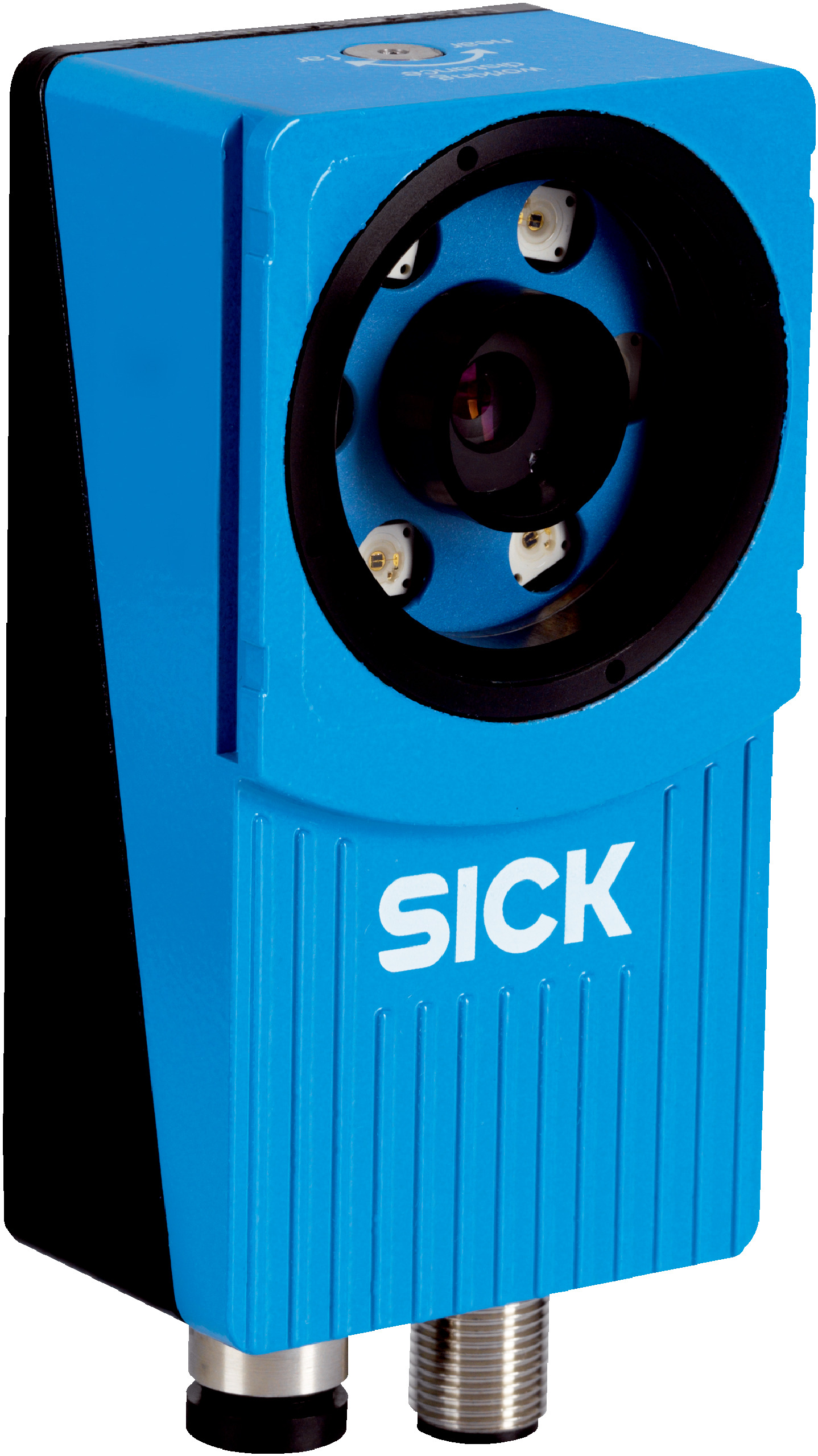

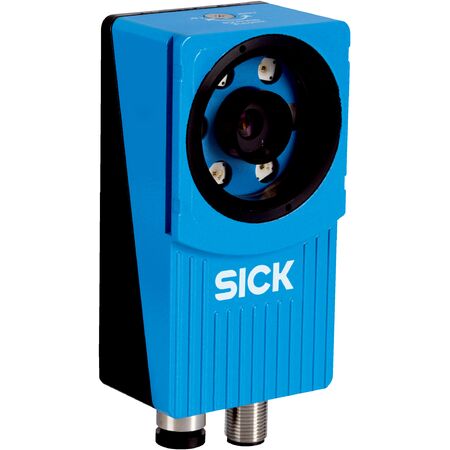

2D Vision Sensor VSPM-6F2413 | CMOS Monochrome | IP67 Rated | 40 fps Scan Rate | by SICK
The 2D Vision Sensor VSPM-6F2413 features advanced 2D snapshot technology with a CMOS monochrome image sensor, making it ideal for industrial automation and quality control applications. With an adjustable optical focus and integrated infrared illumination, it ensures precise object detection and measurement. Its robust IP67 rated aluminum housing guarantees durability, while the high-speed performance at 40 fps enhances operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2D Vision Sensor VSPM-6F2413 | CMOS Monochrome | IP67 Rated | 40 fps Scan Rate | by SICK
Brand: SICK
SKU: 1062408
Alternatively Known As: 2D Vision Sensor, Industrial Vision Sensor, CMOS Vision Sensor, Machine Vision Camera, Object Detection Sensor
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Optical focus: Adjustable (manual)
- Calibration: Perspective and lens distortion correction with mm results
- Working range: ≥ 50 mm
- Operating distance with internal illumination: 50 mm to 200 mm
- Field of view of internal illumination: 22 mm x 15 mm to 79 mm x 58 mm
- Illumination: Integrated infrared
- LED class: Risk-free group (IEC62471: 2006)
- Spectral range: Approx. 370 nm to 900 nm
- Sensor resolution: 640 px x 480 px (0.3 Mpixel)
- Scan/frame rate: 40 fps
- Number of inspections: 64
- Reference images: 32 objects
- Connection type: M12 12-pin male and M12 4-pin female connectors
- Supply voltage: 24 V DC ± 20%
- Ripple: < 5 V pp
- Current consumption: < 450 mA without output load
- Enclosure rating: IP67
- Housing material: Aluminum
- Window material: PMMA
- Data transmission rate: 100 Mbit/s
- Operator interfaces: Web server
- Configuration software: SOPAS ET
- Digital inputs: 4 (24 V)
- Digital outputs: 3 (24 V, B-type)
- Output current: ≤ 100 mA
- Maximum encoder frequency: 40 kHz
- External illumination: 5 V TTL
- I/O box extension: 5 inputs for object selection, 16 outputs
- Dimensions (H x L x W): 38mm x 100mm x 53mm
- Weight: 0.35 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Configurable with multiple toolkits including Object Locator, Pixel Counter, Pattern Blob Finder, OCR, and more
- Adjustable manual optical focus with integrated infrared illumination
- Risk-free LED class compliant with IEC62471: 2006
- High-speed performance with 40 fps scan/frame rate
- Robust IP67 rated aluminum housing with PMMA window
- Supports Ethernet and EtherNet/IP™ communication with 100 Mbit/s data rate
- Multiple configurable digital inputs and outputs with logical expression support
- Web server operator interface and SOPAS ET configuration software
- Supports robot coordinate alignment and perspective/lens distortion correction
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial vision systems and electrical connections to ensure proper setup and safety.
Applications
- Industrial automation for object detection and measurement
- Robotics for 2D position determination and coordinate alignment
- Quality control for dimension, contour, volume measurement, and OCR
- Manufacturing lines requiring pattern recognition and inspection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Integrated infrared illumination reduces the need for external lighting, lowering energy consumption
- Durable IP67 rated housing extends product lifespan, reducing waste
- Supports efficient automation to optimize resource use and reduce production errors
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VSPM-6F2413 2D Snapshot Vision Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
