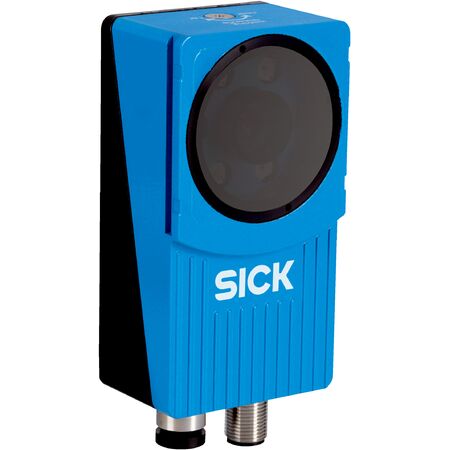

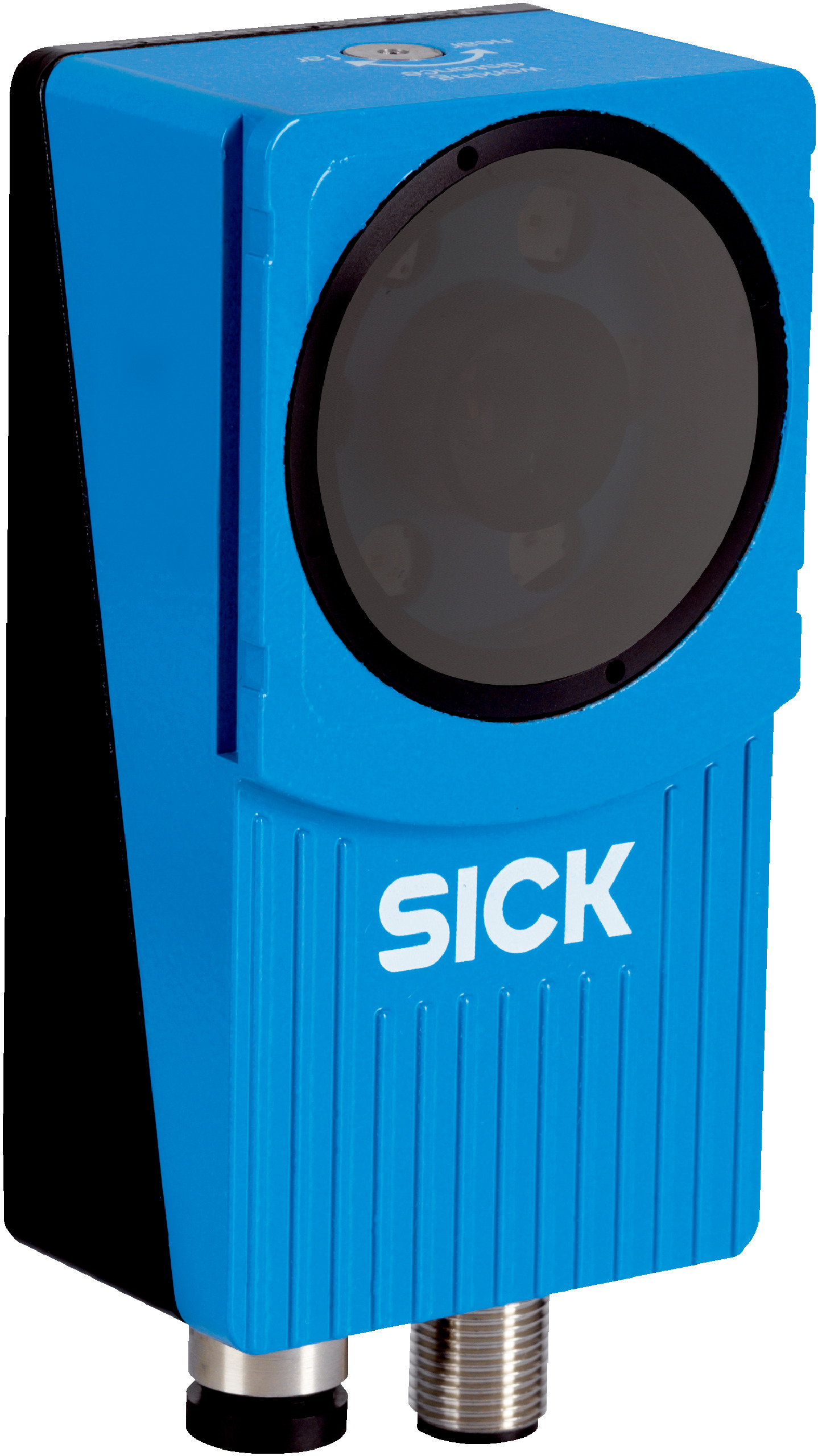

2D Vision Sensor VSPM-6F2413S18 | CMOS Monochrome | 40 fps Frame Rate | IP67 Rated | by SICK
The 2D Vision Sensor VSPM-6F2413S18 features advanced 2D snapshot technology with a CMOS monochrome image sensor, delivering high-speed image capture at 40 fps. Ideal for industrial automation and quality control applications, this sensor offers adjustable optical focus and integrated infrared illumination, ensuring precise object detection and measurement in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Optical focus: Adjustable (manual)
- Working range: ≥ 50 mm
- Operating distance with internal illumination: 50 mm to 200 mm
- Field of view of internal illumination: 22 mm x 15 mm to 79 mm x 58 mm
- Illumination: Integrated infrared
- LED class: Risk-free group (IEC62471: 2006)
- Spectral range: Approx. 370 nm to 900 nm
- Sensor resolution: 640 px x 480 px (0.3 Mpixel)
- Scan/frame rate: 40 fps
- Number of inspections: 32
- Reference images: 32 objects
- Connection type: M12 12-pin male and M12 4-pin female connectors
- Supply voltage: 24 V DC ± 20%
- Current consumption: < 450 mA without output load
- Enclosure rating: IP67
- Housing material: Aluminum
- Window material: Visible block filter glass
- Data transmission rate: 100 Mbit/s via Ethernet and EtherNet/IP™
- Digital inputs: 4 inputs (24 V)
- Digital outputs: 3 digital outputs (24 V, B-type)
- Maximum encoder frequency: 40 kHz
- Operating temperature: 0 °C to +45 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 38mm x 100mm x 53mm
- Weight: 0.35 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Configurable with multiple toolkits including Object Locator, Pixel Counter, Pattern Blob Finder
- Adjustable manual optical focus with integrated infrared illumination
- Risk-free LED class compliant with IEC62471: 2006
- High-speed image capture at 40 fps with 640 x 480 pixel resolution
- Robust IP67 rated aluminum housing with visible block filter glass window
- Multiple interfaces including Ethernet, EtherNet/IP™, and digital I/O
- Supports robot coordinate alignment and perspective/lens distortion correction
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection and measurement
- Robotics for 2D position determination and robot coordinate alignment
- Quality control for dimension, contour, volume measurement, and OCR
- Pattern recognition and inspection tasks in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated infrared illumination reduces the need for external lighting, lowering energy consumption
- Durable IP67 rated housing extends product life and reduces waste
- Supports efficient automation reducing material waste and improving production accuracy
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now
The SICK VSPM-6F2413S18 2D Snapshot Vision Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
