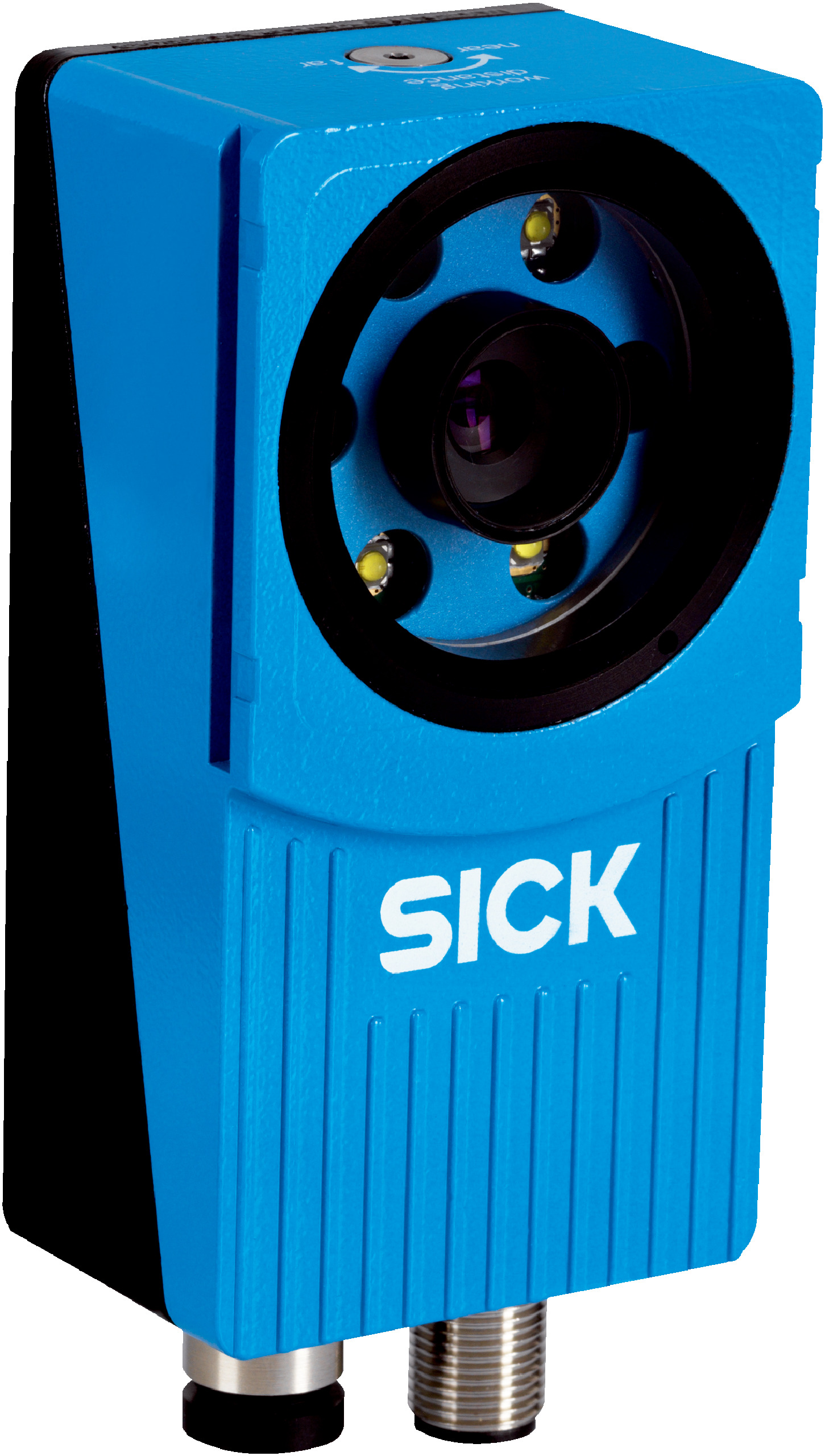

2D Vision Sensor VSPP-5F2113 | CMOS Monochrome | 40 fps Image Capture | IP67 Rated | by SICK
The 2D Vision Sensor VSPP-5F2113 features advanced 2D snapshot technology with a CMOS monochrome image sensor, delivering high-speed image capture at 40 fps. Ideal for industrial automation and quality control, this sensor offers adjustable optical focus and integrated white illumination, ensuring precise object detection and measurement in various manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2D Vision Sensor VSPP-5F2113 | CMOS Monochrome | 40 fps Image Capture | IP67 Rated | by SICK
Brand: SICK
SKU: 1056082
Alternatively Known As: 2D Vision Sensor, Industrial Vision Sensor, CMOS Vision Sensor, Object Detection Sensor
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Optical focus: Adjustable (manual)
- Working range: ≥ 50 mm
- Operating distance with internal illumination: 50 mm to 200 mm
- Field of view of internal illumination: 22 mm x 15 mm to 79 mm x 58 mm
- Illumination color: White
- LED class: Risk group 1 (low risk, IEC62471:2006)
- Spectral range: Approx. 400 nm to 750 nm
- Sensor resolution: 640 px x 480 px (0.3 Mpixel)
- Scan/frame rate: 40 fps
- Number of inspections: 32
- Reference images: 32 objects
- Connection type: M12 12-pin male and M12 4-pin female connectors
- Supply voltage: 24 V DC ± 20%
- Current consumption: < 450 mA without output load
- Enclosure rating: IP67
- Housing material: Aluminum
- Window material: PMMA
- Data transmission rate: 100 Mbit/s via Ethernet and EtherNet/IP
- Operator interfaces: Inspector Viewer, web server
- Configuration software: SOPAS ET
- Digital inputs: 4 (24 V)
- Digital outputs: 3 (24 V, B-type)
- Maximum encoder frequency: 40 kHz
- Ambient operating temperature: 0 °C to +45 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 38mm x 100mm x 53mm
- Weight: 0.35 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Adjustable manual optical focus with integrated white illumination
- Configurable with multiple toolkits including Object Locator and OCR
- High-speed image capture at 40 fps with 640 x 480 pixel resolution
- IP67 rated aluminum housing for robust industrial use
- Multiple digital inputs and outputs with Ethernet and EtherNet/IP communication
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication standards to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection and measurement
- Quality control with OCR and pattern identification
- Position determination in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Integrated LED illumination reduces need for external lighting, lowering energy consumption
- Durable IP67 housing extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK VSPP-5F2113 2D Snapshot Vision Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
