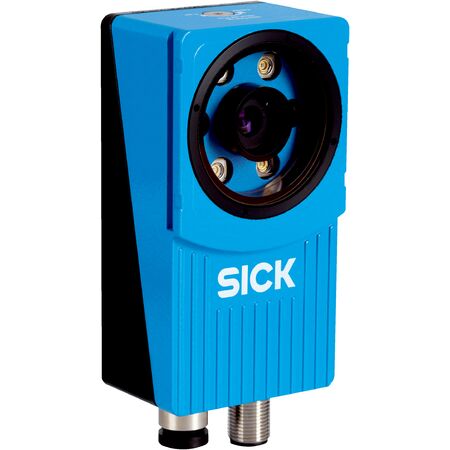

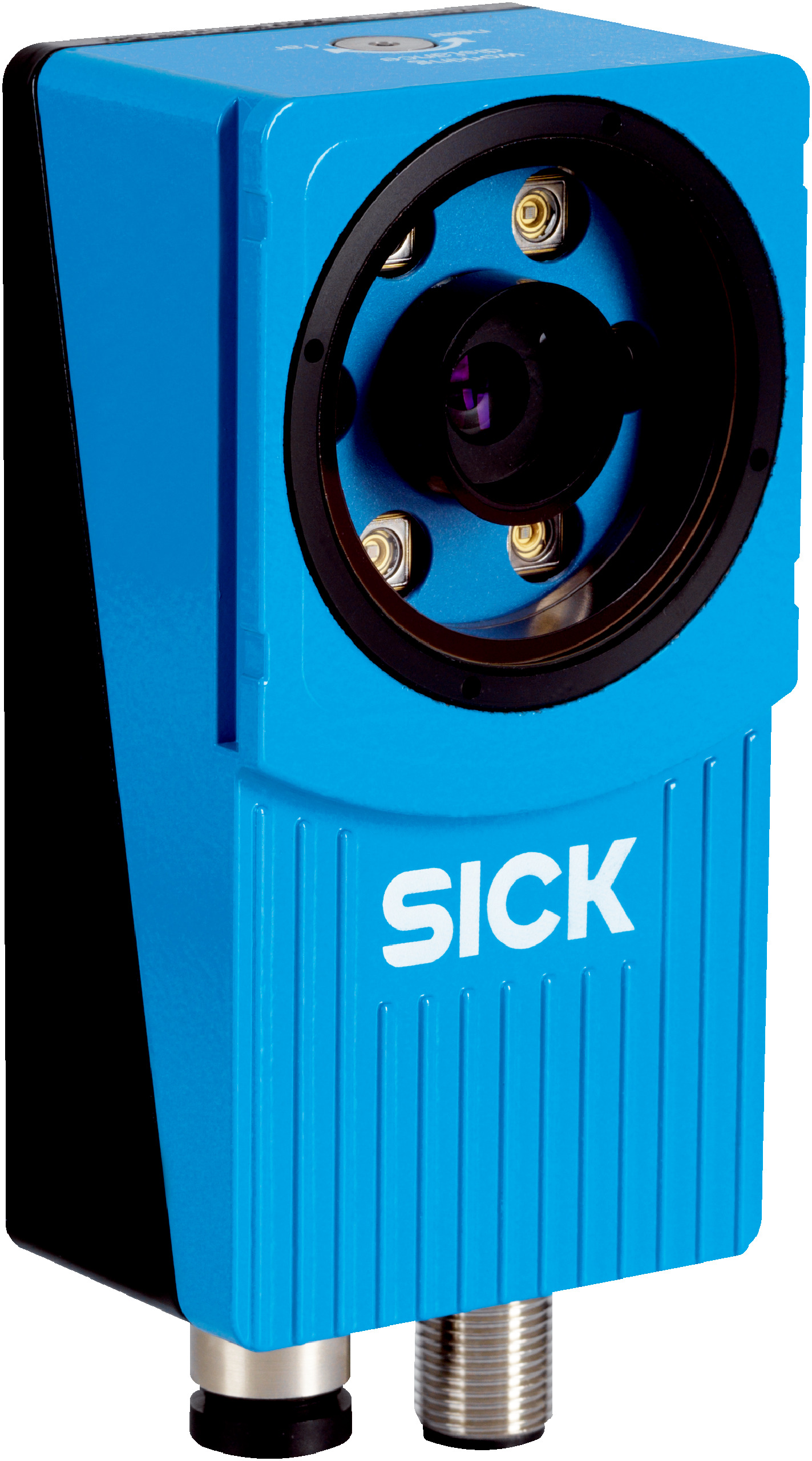

2D Vision Sensor VSPP-5F2413 | CMOS Monochrome | Adjustable Focus | IP67 Rated | by SICK
The 2D Vision Sensor VSPP-5F2413 features advanced 2D snapshot technology with a CMOS monochrome image sensor, perfect for industrial automation and quality control applications. With adjustable manual optical focus and integrated infrared illumination, it ensures high-speed image capture at 40 fps. Built for robust use, its IP67 rated aluminum housing guarantees durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Optical focus: Adjustable (manual)
- Working range: ≥ 50 mm
- Operating distance with internal illumination: 50 mm to 200 mm
- Field of view of internal illumination: 22 mm x 15 mm to 79 mm x 58 mm
- Illumination color: Infrared
- LED class: Risk-free group (IEC62471: 2006)
- Spectral range: Approx. 370 nm to 900 nm
- Sensor resolution: 640 px x 480 px (0.3 Mpixel)
- Scan/frame rate: 40 fps
- Number of inspections: 32
- Reference images: 32 objects
- Connection type: M12, 12-pin male and 4-pin female connectors
- Supply voltage: 24 V DC, ± 20%
- Ripple: < 5 V pp
- Current consumption: < 450 mA without output load
- Enclosure rating: IP67
- Housing material: Aluminum
- Window material: PMMA
- Data transmission rate: 100 Mbit/s
- Operator interfaces: Inspector Viewer, web server
- Configuration software: SOPAS ET
- Digital inputs: 4 inputs (24 V)
- Digital outputs: 3 digital outputs, 24 V (B-type)
- Output current: ≤ 100 mA
- Maximum encoder frequency: Max. 40 kHz
- External illumination: 5 V TTL
- I/O box extension: 5 inputs for object selection, 16 outputs
- Dimensions (H x L x W): 38mm x 100mm x 53mm
- Weight: 0.35 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Adjustable manual optical focus
- Integrated infrared illumination with risk-free LED class
- Configurable with multiple toolkits including Object Locator and OCR
- High-speed image capture at 40 fps
- IP67 rated aluminum housing for robust industrial use
- Multiple digital inputs and outputs with Ethernet communication
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection and measurement
- Quality control with OCR and pattern identification
- Position determination in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated infrared illumination reduces need for external lighting, lowering energy consumption
- Durable IP67 housing extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK VSPP-5F2413 2D Snapshot Vision Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
