2ft LED Strip Batten | 240V 20W | Tri-Colour Prismatic by Lawell Lightning
2ft LED strip batten with 240V input and 20W power—ideal for commercial and retail lighting. Built for versatility, with tri-colour options (3000K, 4000K, 5700K) and prismatic design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2ft LED Strip Batten - Prismatic
Brand: Lawell Lightning
SKU: LWBR2112P
Alternatively Known As: LED batten, LED strip batten, prismatic batten, tri-colour batten, commercial LED batten
Technical Specifications
- Input Voltage: 240V
- Wattage: 20W (selectable to 40W for 4 foot version)
- Lumen Output: 1000/2000lm
- IP Rating: IP20
- Colour Temperature: Tri-colour (3000K, 4000K, 5700K)
- CRI: >80
- Charging Method: Intelligent current limited constant voltage charge
- Construction: Powder coated steel
- Terminal Block: 12mm
- Dimming Options: No

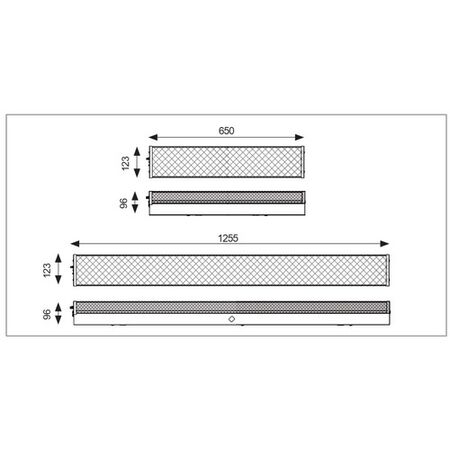

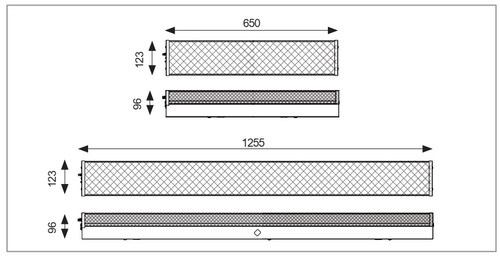

- Dimensions (H x L x W): 96mm x 650mm x 123mm
- Weight: 2.1 kg
Key Features
- 20W/40W power selectable (4 foot only)
- Large terminal block for fast installation and maintenance
- Wide body design covers junction boxes and accommodates heat-generating components
- Tri-colour switchable: 3000K, 4000K, 5700K

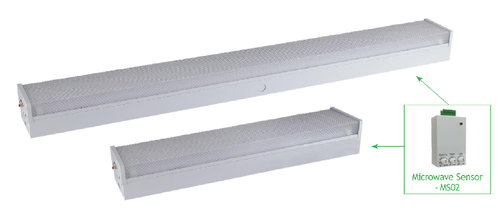

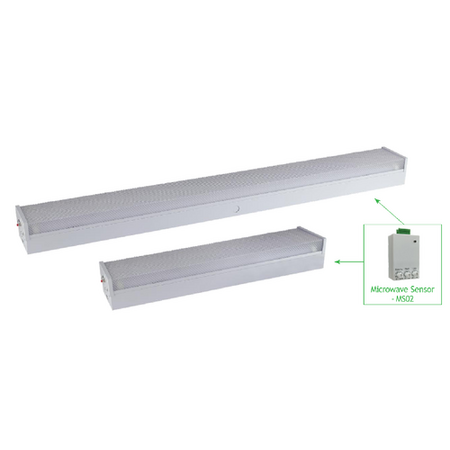

- Optional microwave sensor (MS02)
- DALI option available as special order
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with Australian electrical standards and optimal performance.
Applications
- Commercial offices
- Retail stores
- Warehouses
- Educational facilities
- Corridors and passageways
- General indoor lighting
Standards & Compliance
- Complies with AS/NZS 60598 for safety and performance standards.
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long lifespan minimizes waste and maintenance
- Mercury-free and RoHS compliant
Warranty Information
3 years warranty against manufacturing defects.
Available Now
Available for immediate purchase. Ideal for commercial, retail, and general indoor lighting applications.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
